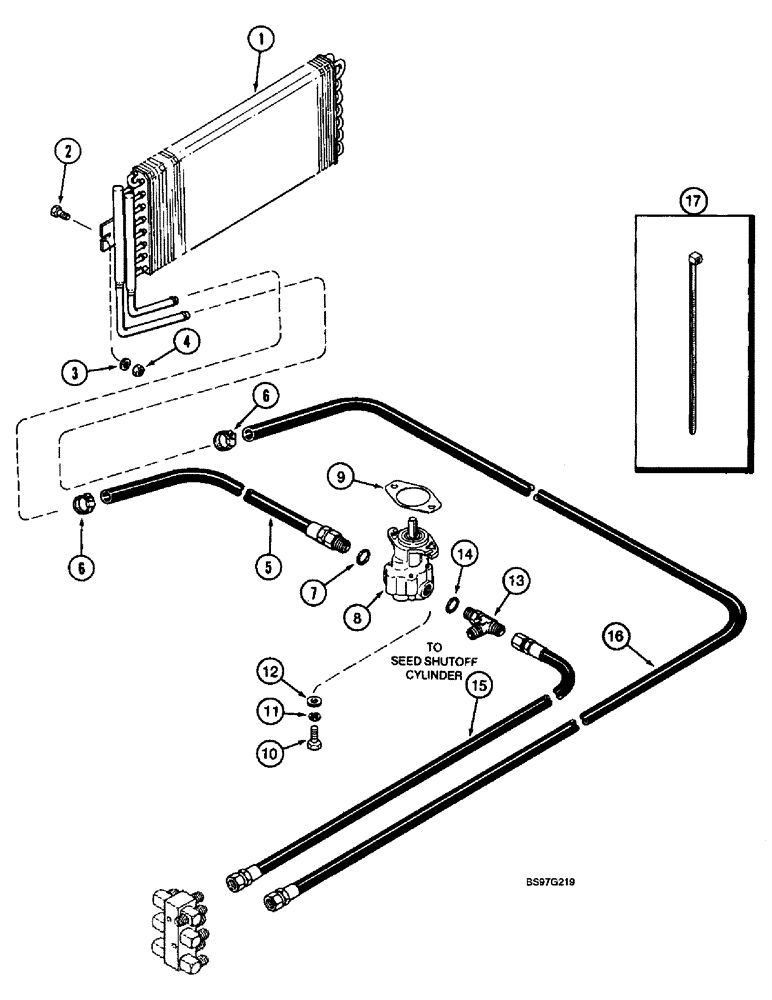

Запчасти Case IH 900 (8-060) - BLOWER PUMP HYDRAULIC SYSTEM, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1

1265677C1

OIL COOLER

COOLER - oil

2шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Return, To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-147)

2шт.

8

1272056C92R

REMAN-HYD MOTOR

900 - CASE IH PLANTER, N.A. Only

2шт.

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

9

1985956C1

GASKET

- blower motor

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

13

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

Pressure (Left-Hand Blower Motor) 12.70 mm ID x 5335.00 mm, SAE 100R1

1шт.

15a

91204C1

HYDRAULIC HOSE,12.7mm ID x 4320mm L

Pressure (Right-Hand Blower Motor) (Not Shown) 12.70 mm ID x 4320.00 mm, SAE 100R1

1шт.

16

1333800C1

HYDRAULIC HOSE,12.70 mm ID x 5800.00 mm, SAE 30R2 or SAE 100R6

Return (Left-Hand Oil Cooler) 12.70 mm ID x 5800.00 mm, SAE 30R2 or SAE 100R6

1шт.

16a

1333799C1

HYDRAULIC HOSE,12.70 mm ID x 4500.00 mm, SAE 30R2 or SAE 100R6

Return (Right-Hand Oil Cooler) Not Shown 12.70 mm ID x 4500.00 mm, SAE 30R2 or SAE 100R6

1шт.

17

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
