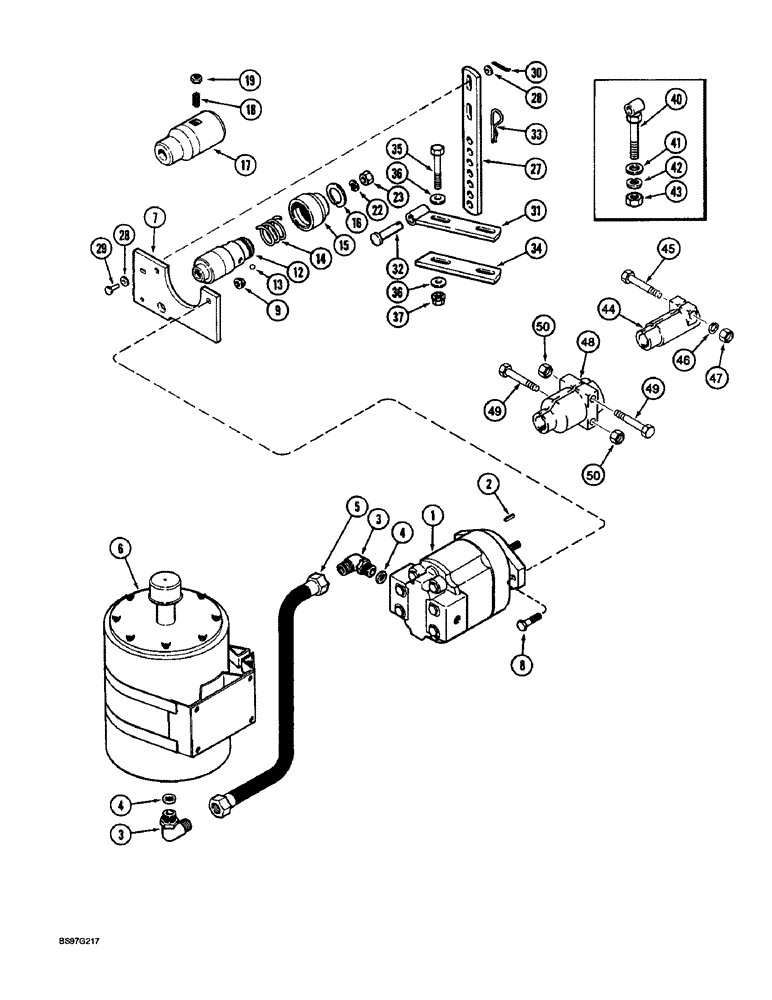

Запчасти Case IH 900 (8-052) - BLOWER PUMP HYDRAULIC SYSTEM, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Pages 8-145 and 8-147 for correct pump assembly)

1шт.

2

177192C1

KEY

- shaft

1шт.

3

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

5

58159C2

HOSE,31.75mm ID x 1371.6mm L

1.25" ID x 54.00"

1шт.

6

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (See Page 8-149)

1шт.

7

56773C2

PLATE

- pump mounting

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

1279355C91

COUPLING

COUPLER ASSEMBLY - pump, 1-3/8 inch spline, if used

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - coupler (Order 1279355C91)

1шт.

13

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24, Coupler

3шт.

14

1279356C1

SPRING

- collar

1шт.

15

1279357C1

COLLAR

- coupler

1шт.

16

100-11168

SNAP RING,#168, Ext

Ring, Snap, #168, Ext

1шт.

17

1277794C91

ADAPTER

COUPLER ASSEMBLY - pump, 1-3/4 inch spline, if used

1шт.

18

540814R1

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW - hex socket set, 1/2 NF x 5/16 inch

2шт.

19

131-58

LOCK NUT,1/2"-20, G5

NUT - light hex, self-locking, 1/2 inch NF

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

23

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

27

56774C1

BRACKET

- adjusting

1шт.

28

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

4шт.

29

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2

2шт.

30

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

31

1254128C1

STRAP

- retaining, upper

1шт.

32

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

1шт.

33

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

1шт.

34

56776C1

BAR

STRAP - retaining, lower

1шт.

35

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

36

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

40

1958312C1

ANCHOR

BOLT - special, 5/8 NC x 3-1/2 inch (Use instead of items 31 and 34 as required)

1шт.

41

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch, hardened

1шт.

42

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

43

425-1010

NUT,5/8"-11, G5

1шт.

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

COUPLER ASSEMBLY - pump, 1-3/8 inch spline (split body), if used

1шт.

44

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

45

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- hex, 1/2 NF x 2-1/2 inch

1шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

47

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

1958268C1

COUPLING

COUPLER ASSEMBLY - pump, 1-3/4 inch spline (split body), if used

1шт.

48

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

49

414-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- hex, 1/2 NF x 3-1/2 inch

2шт.

50

131-58

LOCK NUT,1/2"-20, G5

NUT - light hex, self-locking, 1/2 inch NF

2шт.
