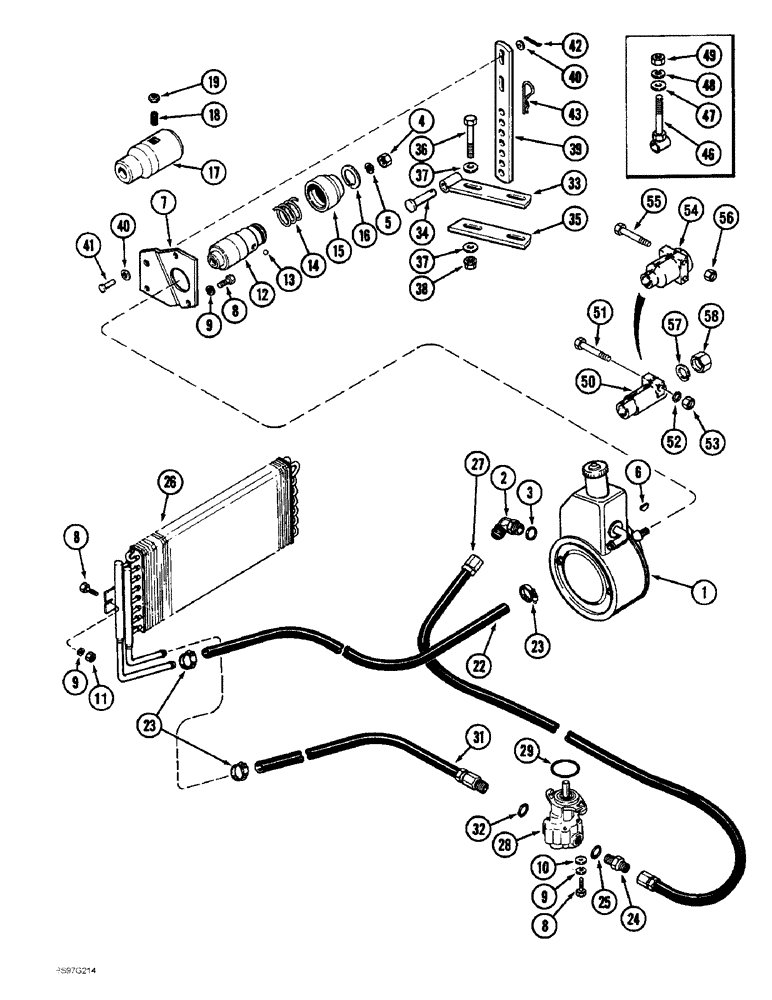

Запчасти Case IH 900 (8-048) - BLOWER PUMP HYDRAULIC SYSTEM, 1OOO RPM PTO, CYCLO AIR PLANTERS, 4, 6 AND 8 ROW (08) - HYDRAULICS

1

149368C91

PUMP

ASSEMBLY - hydraulic (See Page 8-143)

1шт.

1

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

1

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

6

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

7

56780C1

PLATE

BRACKET - pump mounting

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

1279354C91

COUPLING

ASSEMBLY - nontapered

1шт.

For split body couplers see page 8-49B. See service bulletin NSE SB 003 92.

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - coupling (Order 1279354C91)

1шт.

13

211-2216

BALL,12.7mm OD, Gr 100

- chrome alloy steel, 1/2 inch, grade 24

3шт.

14

1279356C1

SPRING

- collar

1шт.

15

1279357C1

COLLAR

- coupler

1шт.

16

100-11168

SNAP RING,#168, Ext

Ring, Snap, #168, Ext

1шт.

17

1277793C91

ADAPTER

ASSEMBLY - nontapered

1шт.

For split body couplers see page 8-49B. See service bulletin NSE SB 003 92.

1шт.

18

540814R1

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW - hex socket set, 1/2 NF x 5/16 inch

2шт.

19

131-58

LOCK NUT,1/2"-20, G5

NUT - light hex, self-locking, 1/2 inch NF

2шт.

22

137081C1

HYDRAULIC HOSE,12.70 mm ID x 5636.00 mm, SAE 100R6

Cut from 73199C1 Bulk Hose, Return (Trailing Planters) 12.70 mm ID x 5636.00 mm, SAE 100R6

1шт.

22

59773C1

HYDRAULIC HOSE,12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

- Cut from 73199C1 bulk hose, Return (Semimounted and vertical folding planters) 12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

1шт.

23

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

3шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

1265677C1

OIL COOLER

COOLER - oil

1шт.

27

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

Supply (Trailing Planters) 12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

27

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Supply (Semi-Mounted and Vertical Folding) 12.70 mm ID x 2540.00 mm, SAE 100R1

1шт.

73199C1

HOSE

- bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.

28

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-147)

1шт.

29

1985956C1

GASKET

- motor

1шт.

31

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

1254128C1

STRAP

- retaining, upper

1шт.

34

496496R1

HEADED PIN,5/8" x 2 3/4"

PIN - clevis, 5/8 x 2-3/4 inch

1шт.

35

56776C1

BAR

STRAP - retaining, lower

1шт.

36

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

39

56774C1

BRACKET

- adjusting, pump

1шт.

40

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

4шт.

41

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2

2шт.

42

432-1216

COTTER PIN,3/16" x 1"

2шт.

43

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

1шт.

46

1958312C1

ANCHOR

BOLT - special, 5/8 NC x 3-1/2 inch (Use instead of items 33 and 35 as required)

1шт.

47

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch, hardened

2шт.

48

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

49

425-1010

NUT,5/8"-11, G5

1шт.

1546919C2

COUPLING

COUPLER ASSEMBLY - pump, 1-3/8 inch spline (split body)

1шт.

50

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

51

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

52

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

53

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

1546920C2

COUPLING

COUPLER ASSEMBLY - pump, 1-3/4 inch spline (split body)

1шт.

54

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

55

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

56

131-492

NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC, self-locking

2шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

58

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
