Запчасти Case IH 900 (8-046) - BLOWER PUMP HYDRAULIC SYSTEM, 54O RPM PTO, CYCLO AIR PLANTERS, 4, 6 & 8 ROW (08) - HYDRAULICS

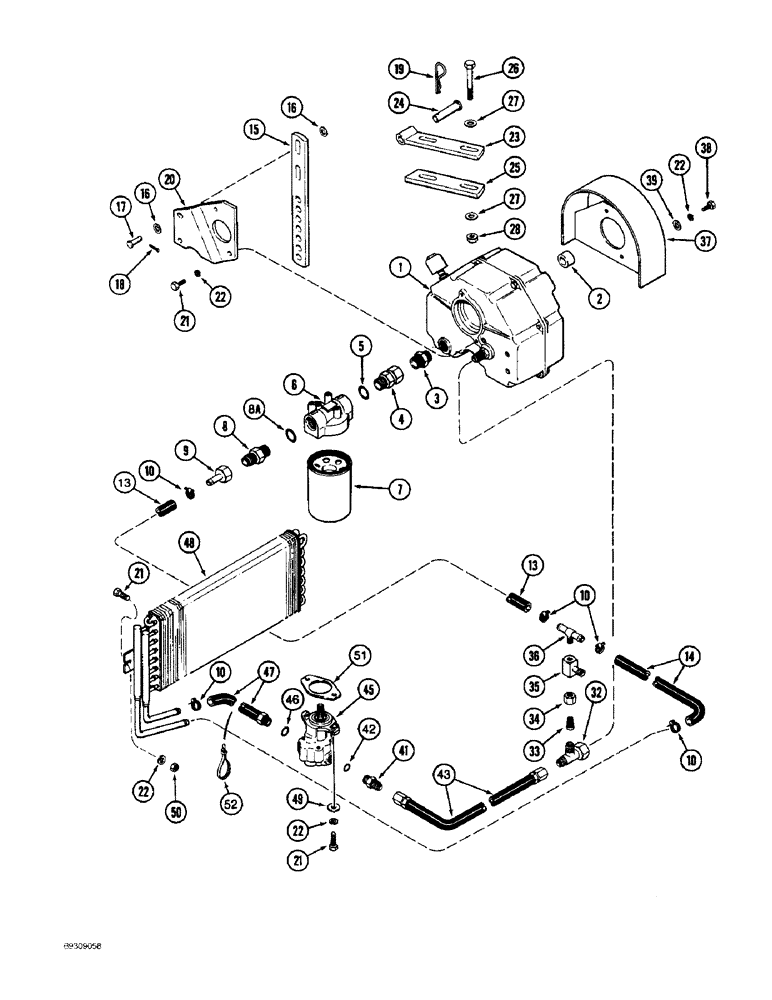

Схема запчастей Case IH 900 - (8-046) - BLOWER PUMP HYDRAULIC SYSTEM, 54O RPM PTO, CYCLO AIR PLANTERS, 4, 6 & 8 ROW (08) - HYDRAULICS
15
5
27
46
38
35
22
2
25
3
26
14
13
52
41
51
10
6
7
21
18
16
33
49
47
9
23
28
19
22
32
24
21
8a
20
10
27
50
38
4
8
10
43
21
39
16
48
13
10
34
1
42
45
17
37
22
22

Артикул

Название

Примечание

Количество

1

149367C91

PUMP

ASSEMBLY - hydraulic (See Page 8-141)

1шт.

2

119956C1

SPACER, RING

SPACER - hydraulic pump

1шт.

3

95729C1

CONNECTOR, ELEC

CONNECTOR - straight, special

1шт.

4

95728C1

ADAPTER

- swivel, special

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

3шт.

6

113464C91

FILTER

ASSEMBLY - hydraulic oil

1шт.

7

113465C1

FILTER

- hydraulic oil

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

8a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

113452C1

TUBE

- connecting, special

1шт.

10

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

13

388608R2

HOSE - 635 mm (25 inch) long, cut from 73199C1 bulk hose, return (all planters)

1шт.

14

137081C1

HYDRAULIC HOSE,12.70 mm ID x 5636.00 mm, SAE 100R6

Cut from 73199C1 Bulk Hose, Return (Trailing Planters) 12.70 mm ID x 5636.00 mm, SAE 100R6

1шт.

14

59773C1

HYDRAULIC HOSE,12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

- Cut from 73199C1 bulk hose, Return (Semi-mounted and vertical folding planters) 12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

1шт.

15

56774C1

BRACKET

- adjusting

1шт.

16

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened

4шт.

17

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2

2шт.

18

432-1216

COTTER PIN,3/16" x 1"

2шт.

19

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

1шт.

20

113414C3

PLATE

- pump mounting

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

1254128C1

STRAP

- retaining

1шт.

24

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

1шт.

25

56776C1

BAR

STRAP - retaining

1шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

28

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

32

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

33

56781C1

ADAPTER

REDUCER - special, 1/4 to 1/2 inch tube

1шт.

34

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 1/2 inch NF

1шт.

35

539794R91

VALVE

- flow control

1шт.

36

56782C91

TEE

- special

1шт.

37

95713C1

SHIELD

- pump

1шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

41

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

43

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

Supply (Trailing Planters) 12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

43

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Supply (Semi-Mounted and Vertical Folding) 12.70 mm ID x 2540.00 mm, SAE 100R1

1шт.

45

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-147)

1шт.

45

1272056C92R

REMAN-HYD MOTOR

900 - CASE IH PLANTER, N.A Only

1шт.

45

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

47

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

48

1265677C1

OIL COOLER

COOLER - oil

1шт.

49

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

50

425-106

NUT,3/8"-16, Cl 5

2шт.

51

1985956C1

GASKET

- motor

1шт.

52

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

73199C1

HOSE

- bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.

Выбрано товаров: 51
