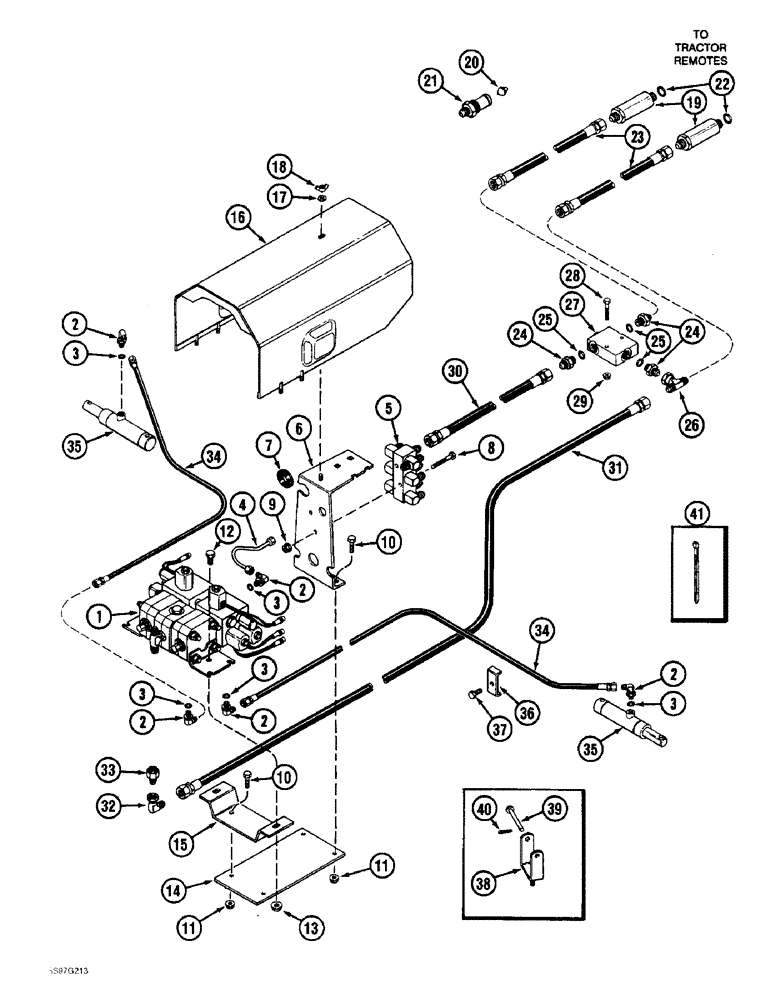

Запчасти Case IH 900 (8-042) - FRAME LATCH HYDRAULIC SYSTEM, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1

1260823C91

VALVE

ASSEMBLY - flow divider (See Page 8-129)

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

5шт.

4

1254450C1

TUBE

- pilot

1шт.

5

91167C1

MANIFOLD

- junction

1шт.

6

1268267C1

SUPPORT

BRACKET - manifold support

1шт.

7

100247C1

GROMMET

- support bracket

2шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

174608C2

BOLT,Hex, 3/8" - 16 x 1 1/2"

- hex, special, 3/8 NC x 1-1/2 inch

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

14

1279383C1

SUPPORT

- manifold

1шт.

15

1254455C1

BRACKET

- flow divider valve

1шт.

16

1268295C1

COVER

- valve

1шт.

17

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

18

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

5шт.

19

93305C2

STRAINER ASSY.

FILTER ASSEMBLY - hydraulic, in-line

2шт.

20

93279C1

KIT

- poppet, filter

1шт.

21

93278C1

KIT

- strainer cover, filter

1шт.

ref 21 93278c1 ORING USED IN KIT IS 238-6124

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

23

195869C2

HYDRAULIC HOSE

HOSE - 1905 mm (75 inch) long

2шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

3шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare

1шт.

27

1272359C91

VALVE

ASSEMBLY - check, pilot (See page 8-135)

1шт.

28

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

30

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

31

91203C1

HOSE,12.70 mm ID x 3175.00 mm

1шт.

32

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

33

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

1шт.

34

1254530C2

HYDRAULIC HOSE

HOSE - 3300 mm (130 inch) long

2шт.

35

1282429C92

CYLINDER

ASSEMBLY - 25 (1) ID x 102 mm (4 inch) stroke, latch (See Page 8-103)

2шт.

36

129886C2

CLAMP

- hose (4 used on 12 row narrow)

6шт.

37

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

- hex, 1/2 NC x 1/2 inch

4шт.

37

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

38

1268273C1

BRACKET

- retaining

2шт.

39

439-5860

HEADED PIN,1/2" x 3 3/4"

PIN - headed, 1/2 x 3-3/4 inch

2шт.

40

432-1216

COTTER PIN,3/16" x 1"

2шт.

41

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

41

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
