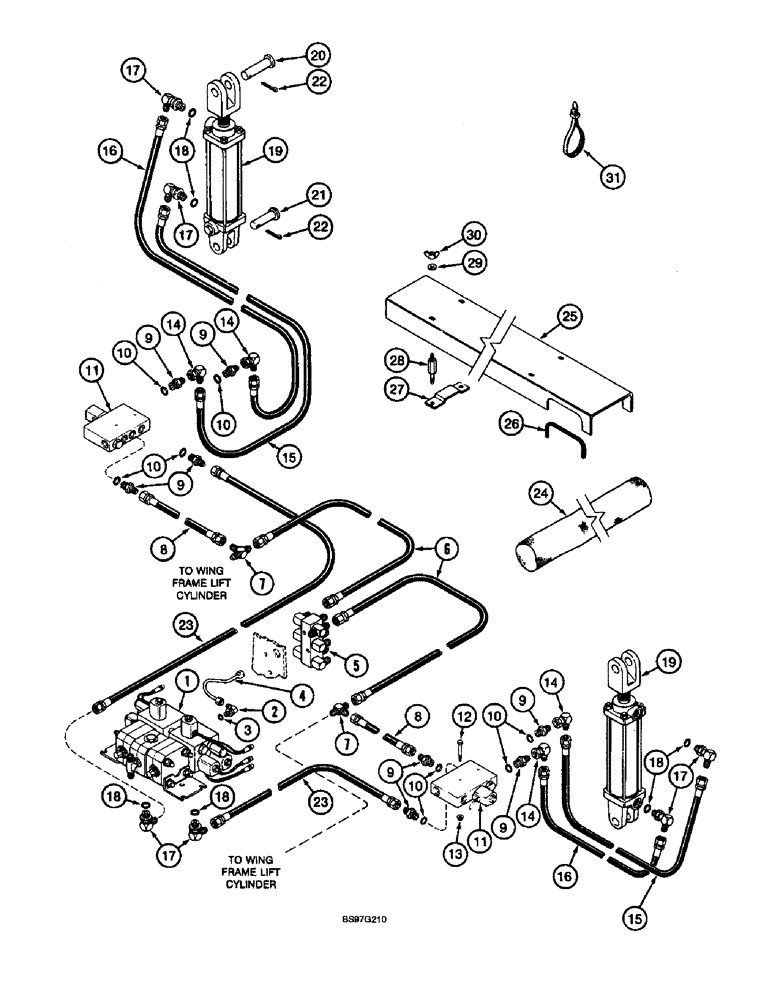

Запчасти Case IH 900 (8-036) - STEERING WHEEL HYDRAULIC SYSTEM, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1

1260823C91

VALVE

ASSEMBLY - flow divider (See Page 8-129)

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

4

1254450C1

TUBE

- pilot

1шт.

5

91167C1

MANIFOLD

- junction

1шт.

6

810570C2

HYDRAULIC HOSE

HOSE - 2286 mm (90 inch) long

2шт.

7

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

8

1254526C2

HOSE ASSY.

HOSE - 3429 mm (135 inch) long

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

8шт.

11

1272466C91

VALVE

ASSEMBLY - row marker (See Page 8-119)

2шт.

12

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

4шт.

15

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

(12 and 16 row narrow) 6.35 mm ID x 1195.00 mm

2шт.

15

129908C1

HYDRAULIC HOSE

HOSE - 1397 mm (55 inch) long (12 row wide)

2шт.

16

1254527C2

HYDRAULIC HOSE

HOSE - 940 mm (37 inch) long (12 and 16 row narrow)

2шт.

16

1254576C2

HOSE ASSY.

HOSE - 1092 mm (43 inch) long (12 row wide)

2шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

6шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 64 (2-1/2)ID x 203 mm (8 inch) stroke, wheel (See Page 8-95)

2шт.

20

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

21

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

2шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

23

1254528C2

HYDRAULIC HOSE

HOSE - 5715 mm (225 inch) long

2шт.

24

1277567C1

PIPE

COVER - hose, protector

1шт.

25

1277577C1

COVER

- monitor harness (12 and 16 row narrow)

2шт.

25

1279469C1

COVER

- monitor harness (12 row wide)

2шт.

26

1279202C1

MOLDING

MOULDING - monitor cover

4шт.

27

1277580C1

BAR

BRACKET - clamp

4шт.

28

1277576C1

BOLT,1/2" - 13 x 98mm

- cover, special

8шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

30

129-400

WING NUT,1/2"-13

NUT - wing, 1/2 inch NC

8шт.

31

1978896C1

STRAP

- tie, 777 mm (30.6 inch) long, ,if used

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
