Запчасти Case IH 900 (8-034) - ASSIST WHL HYD SYS, CYCLO AIR VERTICAL FOLDING, ALL ROW SIZES PLATE VERTICAL FOLDING, 12 ROW NARROW (08) - HYDRAULICS

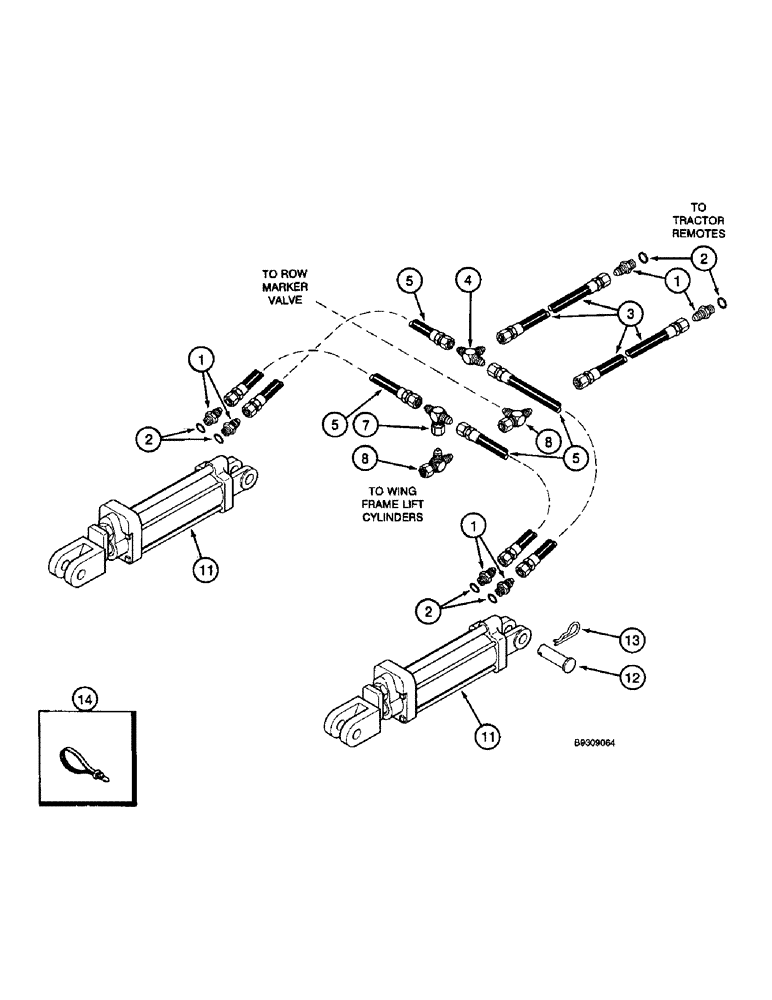

Схема запчастей Case IH 900 - (8-034) - ASSIST WHL HYD SYS, CYCLO AIR VERTICAL FOLDING, ALL ROW SIZES PLATE VERTICAL FOLDING, 12 ROW NARROW (08) - HYDRAULICS
11
12
13
5
4
11
5
1
1
1
3
5
7
14
2
8
8
2
2

Артикул

Название

Примечание

Количество

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 2

6шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, assist wheel cylinder

2шт.

4

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare branch x flare x flare

2шт.

5

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Assist Wheel Cylinder (Cyclo Air 8 Row Wide and Plate 12 Row Narrow) 12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

5

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Assist Wheel Cylinder (12 Row Narrow) 12.70 mm ID x 2540.00 mm, SAE 100R1

4шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare

1шт.

8

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

2шт.

11

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, 8 row wide (See Figure 8-88)

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, 12 row narrow (See Figures 8-90 and 8-92 for correct cylinder)

2шт.

12

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

4шт.

13

1978738C1

HAIR PIN COTTER

3/16", Cyclo Air planters

4шт.

13

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch, plate planter

4шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

Выбрано товаров: 14
