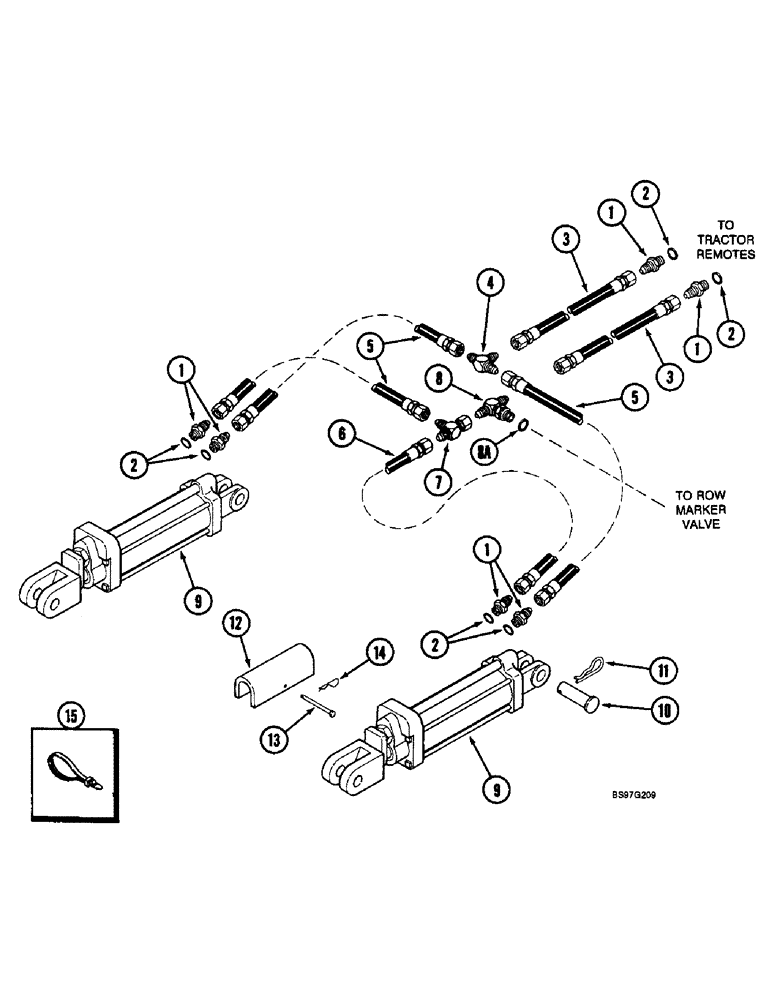

Запчасти Case IH 900 (8-032) - ASSIST WHEEL HYDRAULIC SYSTEM, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

6шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch), Serial Range: long,-tractor

2шт.

4

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare branch x flare x flare

1шт.

5

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

to Assist Wheel Cylinder 12.70 mm ID x 2030.00 mm, SAE 100R1

3шт.

6

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 1270 mm (50 inch) long, to assist wheel cylinder

1шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

8

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adj O-ring branch x flare x flare

1шт.

8a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 (89) ID x 8 inch (203 mm) stroke, assist wheel (See Pages 8-91 and 8-93 for correct cylinder)

2шт.

10

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

4шт.

11

1978738C1

HAIR PIN COTTER

3/16"

4шт.

12

1268367C2

STOP

- cylinder assembly, used with endwise transport

2шт.

13

439-5454

HEADED PIN,1/4" x 3 3/8"

PIN - headed, 1/4 x 3-3/8 inch, used with endwise transport

2шт.

14

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - locking, hair, used with endwise transport

2шт.

15

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.
