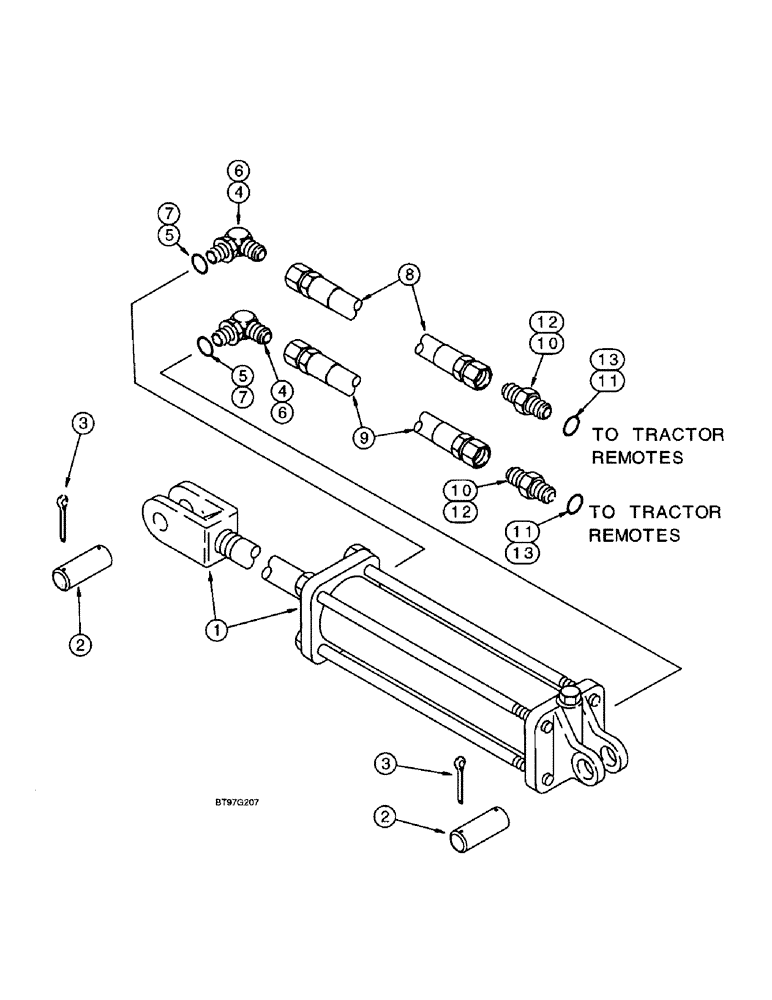

Запчасти Case IH 900 (8-028) - ENDWISE TRANSPORT WHL HYD SYS, CYCLO AIR TRAILING 12 ROW NARROW& 8 ROW, PLATE TRAILING, 8 ROW NARROW (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke, transport wheel (8 row ) (See Pages 8-81 and 8-83 for correct cylinder)
1шт.
1
REF
INSTRUCTION
CYLINDER ASSEMBLY - 127 (5) ID x 406 mm (16 inch) stroke, transport wheel (12 row narrow) (See Pages 8-85 and 8-87 for correct cylinder)
1шт.
2
427-20375
CLEVIS PIN,31.75mm OD x 95.25mm L
PIN - clevis, 1-1/4 x 3-3/4 inch, hardened
2шт.
3
432-1632
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
4
218-5128
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss (8 row)
2шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
6
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss (12 row narrow)
2шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
8
1284299C1
HYDRAULIC HOSE
HOSE - 8890 mm (350 inch) long (8 row narrow)
1шт.
8
1284300C1
HYDRAULIC HOSE
HOSE - 9652 mm (380 inch) long (8 row wide)
1шт.
8
1337264C1
HOSE ASSY.
HOSE - 7239 mm (285 inch) long (12 row narrow)
1шт.
9
1284299C1
HYDRAULIC HOSE
HOSE - 8890 mm (350 inch) long (8 row narrow)
1шт.
9
1284269C1
HYDRAULIC HOSE
HOSE - 9144 mm (360 inch) long (8 row wide)
1шт.
9
91162C1
HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1
12.70 mm ID X 6730.00 mm (12 Row Narrow)
1шт.
10
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (8 row)
2шт.
11
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
12
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 3/4-16 inch flare x O-ring boss (12 row narrow)
2шт.
13
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Выбрано товаров: 18
