Запчасти Case IH 900 (8-024) - AUXILIARY DRIVE WHEEL HYDRAULIC SYSTEM, CYCLO AIR & PLATE TRAILING, 6 ROW NARROW (08) - HYDRAULICS

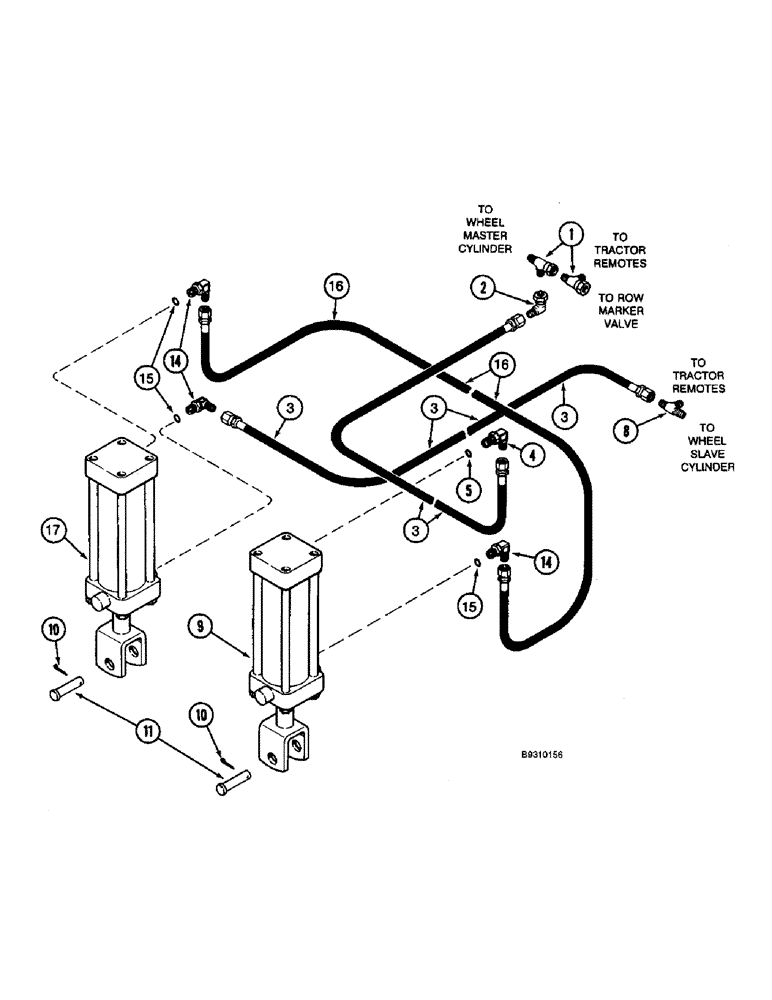

Схема запчастей Case IH 900 - (8-024) - AUXILIARY DRIVE WHEEL HYDRAULIC SYSTEM, CYCLO AIR & PLATE TRAILING, 6 ROW NARROW (08) - HYDRAULICS
8
15
16
17
1
11
3
3
16
15
14
4
2
9
10
3
14
10
5
3

Артикул

Название

Примечание

Количество

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

2

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

3

1284301C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long

2шт.

4

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

9

1286472C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 203 mm (8 inch) stroke, master, drive wheel (See page 8-75)

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

2шт.

11

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN - headed, 3/4 x 3-1/4 inch

2шт.

11

439-51252

HEADED PIN,3/4" x 3 1/4", G5

PIN - headed, 3/4 x 3-3/4 inch

2шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

3шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

1284315C1

HYDRAULIC HOSE

HOSE - 2415 mm (65 inch) long

1шт.

17

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, slave, drive wheel (See page 8-73)

1шт.

Выбрано товаров: 14
