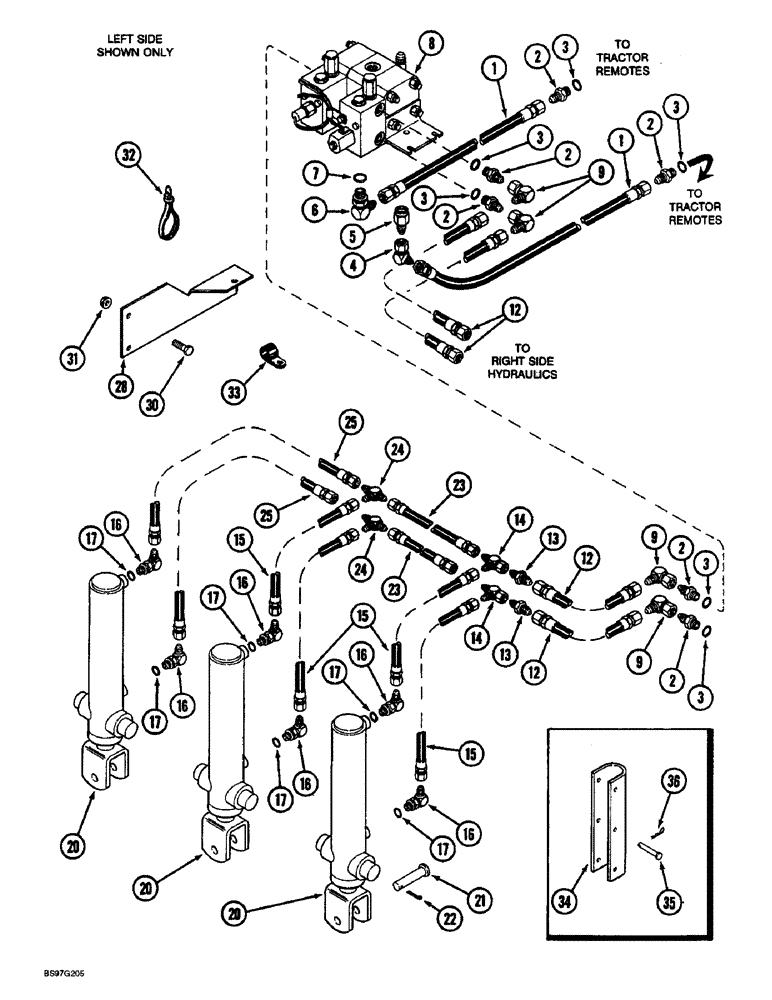

Запчасти Case IH 900 (8-020) - CARRYING WHEEL HYDRAULIC SYSTEM (08) - HYDRAULICS

1

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

HOSE - 4572 mm (180 inch) long (6 row wide and 8 row)

2шт.

1

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HYDRALUIC HOSE, (12 Row Narrow) 12.70 mm ID x 4955.00 mm, SAE 100R1

2шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

6шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

1шт.

5

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

142860C92

VALVE

ASSEMBLY - level lift (See Figure 8-122)

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

4шт.

12

91160C1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm, SAE 100R1

(8 Row) 12.70 mm ID x 1090.00 mm, SAE 100R1

4шт.

12

90874C1

HYDRAULIC HOSE

HOSE - 1397 mm (55 inch) long (6 and 8 row wide)

4шт.

12

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

(12 Row Narrow) 12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

13

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, large hex, 3/4-16 flare x 9/16-18 inch flare

4шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

4шт.

15

1251872C2

HYDRAULIC HOSE

HOSE - 584mm (23 inch) (8 used on 12 row narrow)

4шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 17

1шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 254 mm (10 inch) stroke, wheel (6 used on 12 row narrow) (See Figure 8-76 for correct cylinder)

4шт.

21

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN - headed, 3/4 x 3-1/4 inch (6 used on 12 row narrow)

4шт.

22

432-1620

COTTER PIN,1/4" x 1 1/4"

(6 used on 12 row narrow) 1/4" x 1 1/4"

4шт.

23

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

(8 row narrow) 9.52 mm ID x 1905.00 mm

4шт.

23

810570C2

HYDRAULIC HOSE

HOSE - 2286 mm (90 inch) long (8 row wide)

4шт.

23

1285380C2

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long (6 row wide and 12 row narrow)

4шт.

24

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare (12 row narrow)

4шт.

25

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

(12 Row Narrow) 9.65 mm ID x 1193.80 mm, SAE 100R1

4шт.

28

144903C3

BRACKET

- valve support, left-hand (not shown) (12 row narrow)

1шт.

28

144904C3

BRACKET

- valve support, right-hand (12 row narrow)

1шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(12 row narrow) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

6шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

(12 row narrow) Flg, USR, 1/2"-13

6шт.

32

1978896C1

STRAP

- tie, 777 mm (30.6 inch) long (6 and 8 row wide)

1шт.

33

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

34

1261241C93

STOP

BRACKET ASSEMBLY - cylinder stop, includes decal (4 used on 12 row narrow)

2шт.

34a

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury, not shown (See item 5, Figure 9-336)

1шт.

35

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN - clevis, 3/8 x 2-1/4 inch (4 used on 12 row narrow)

2шт.

36

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080" (4 used on 12 row narrow)

2шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
