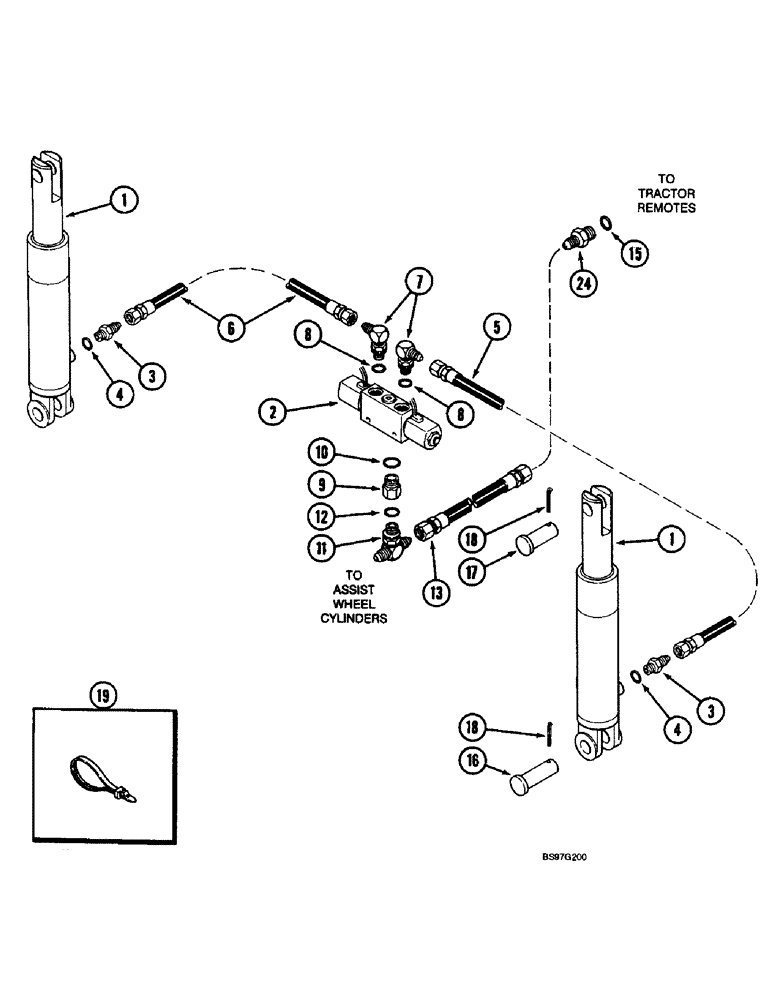

Запчасти Case IH 900 (8-008) - ROW MARKER HYDRAULIC SYSTEM, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - row marker (See Pages 8-67 and 8-69 for correct cylinder)

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - row marker (See Page 8-117 for correct valve)

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

5

129782C2

HYDRAULIC HOSE

HOSE - 4191 mm (165 inch) long

1шт.

6

129759C2

HYDRAULIC HOSE

HOSE - 4572 mm (180 inch) long

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

9

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

- straight, 7/8-14 male O-ring boss x 3/4 inch female

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adj O-ring branch x flare x flare

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

2шт.

17

439-11639

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch, grade 2

2шт.

18

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
