Запчасти Case IH 900 (9-338) - DECALS, INSTRUCTIONS (09) - CHASSIS/ATTACHMENTS

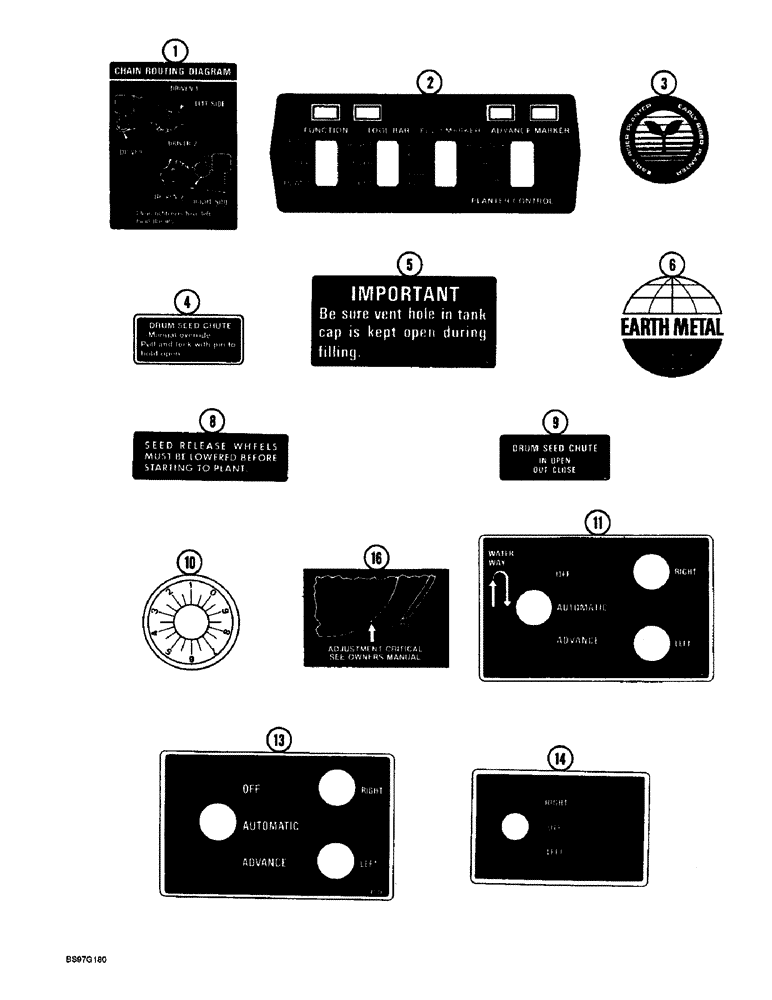

Схема запчастей Case IH 900 - (9-338) - DECALS, INSTRUCTIONS (09) - CHASSIS/ATTACHMENTS
2
5
11
16
8
10
13
4
9
6
14
1
3

Артикул

Название

Примечание

Количество

1

1254231C1

PRODUCT GRAPHIC

DECAL - chain routing diagram

2шт.

2

91278C2

DECAL

- planter control

1шт.

3

95769C1

DECAL

- Early Riser Planter

1шт.

4

1279291C1

DECAL

- drum seed chute

2шт.

5

1254278C1

PRODUCT GRAPHIC,Important Be sure vent hole in tank cap is kept open during fill

DECAL - Important, be sure vent hole in tank

1шт.

6

147782C1

DECAL

- earth metal

1шт.

8

549073R1

DECAL

- seed release wheels must be lowered (English)

2шт.

9

141213C1

DECAL

- drum seed chute (English)

1шт.

10

134294C1

DIAL

INDICATOR - dial handle disc

2шт.

11

149482C1

PRODUCT GRAPHIC

DECAL - marker control, automatic (With waterway feature)

1шт.

13

149483C1

PRODUCT GRAPHIC

DECAL - off, automatic, advance

1шт.

14

147218C1

DECAL,Control Right Off Left

- right, off, left, mechanical

1шт.

16

1986496C1

DECAL

- adjustment critical

1шт.

8

854098C1

DECAL

- seed release wheels must be lowered (French), language

2шт.

9

80095C1

DECAL

- drum seed chute (French), language

1шт.

13

843351C1

DECAL

- off, automatic, advance, French language

1шт.

Выбрано товаров: 16
