Запчасти Case IH 900 (9-336) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

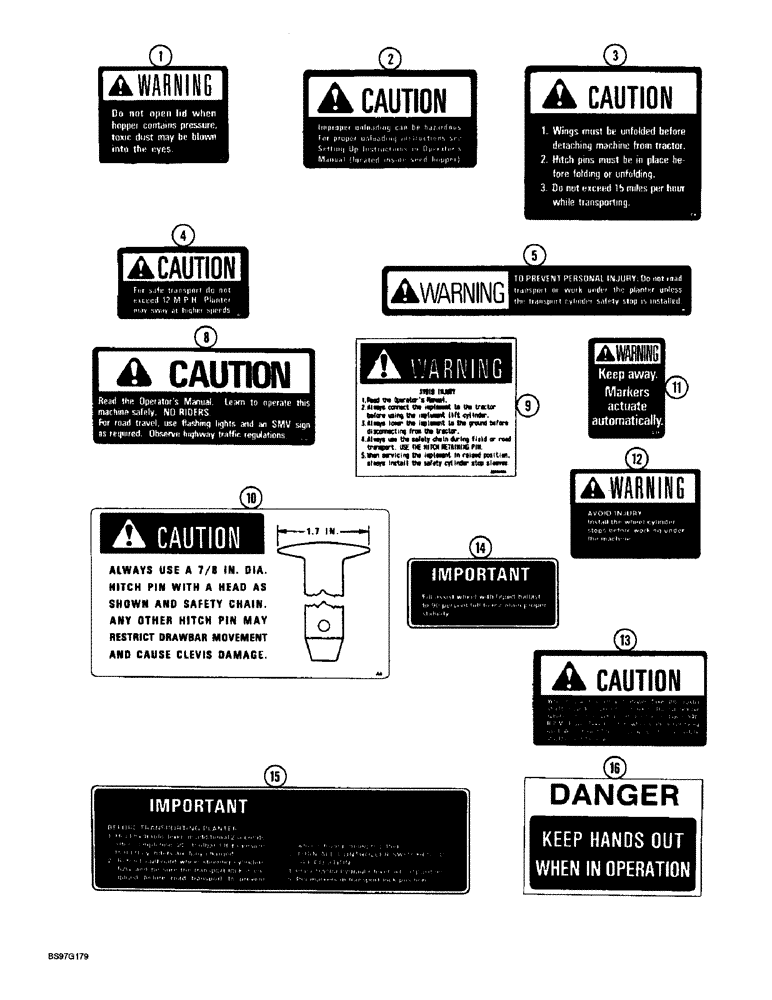

Схема запчастей Case IH 900 - (9-336) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS
3
1
14
8
16
13
9
2
4
11
15
5
10
12

Артикул

Название

Примечание

Количество

1

113483C3

DECAL

- Warning, do not open lid when hopper contains pressure

2шт.

2

100169C1

CAUTION DECAL

DECAL - Caution, improper unloading can be hazardous

2шт.

2

854092C1

DECAL

- Caution, improper unloading can be hazardous (French)

2шт.

3

128704C1

PRODUCT GRAPHIC

DECAL - Caution, 15 mph

1шт.

4

1264465C1

PRODUCT GRAPHIC

DECAL - Caution, for safe transport

1шт.

5

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury

1шт.

5

1261568C1

DECAL

- Warning, to prevent personal injury (Spanish)

1шт.

5

1261567C2

DECAL

- Warning, to prevent personal injury (French)

1шт.

8

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

8

220322A1

CAUTION DECAL

DECAL - Warning, read the operator's manual (French)

1шт.

9

220447A1

WARNING DECAL

DECAL - Warning, avoid injury

1шт.

9

220449A1

WARNING DECAL

WARNING/FRENCH

1шт.

10

1277910C1

PRODUCT GRAPHIC,Caution Always Use 7/8 in Hitch Pin

DECAL - Caution, always use a 7/8 inch dia hitch pin

1шт.

11

1254154C2

WARNING DECAL

DECAL - Warning, Keep away. Markers actuate automatically

4шт.

11

90092C1

DECAL

- Warning, marker (French)

4шт.

12

149366C4

WARNING DECAL

DECAL - Warning, avoid injury, install the wheel cylinder stops

4шт.

12

80091C2

WARNING DECAL

DECAL - Warning, avoid injury, install the wheel cylinder stops (French)

4шт.

13

145167C1

DECAL

- Caution, when this unit is removed, PTO shield

1шт.

13

145168C1

DECAL

- caution, PTO shield, French

1шт.

13

145169C1

DECAL

- caution, PTO shield, Spanish

1шт.

13

145170C1

DECAL

- caution, PTO shield, German

1шт.

14

1279570C1

DECAL

- Important, fill assist wheel with liquid ballast

1шт.

15

1279290C1

DECAL

- important, transporting

1шт.

16

1960311C1

DECAL

- danger, hands out

2шт.

843349C1

DECAL

- Caution, hazardous area (French)

2шт.

Выбрано товаров: 25
