Запчасти Case IH 900 (9-332) - KNIFE SCRAPER, RIDGE TILLAGE ATTACHMENT, CYCLO AIR & PLATE TRAILING PLANTERS (09) - CHASSIS/ATTACHMENTS

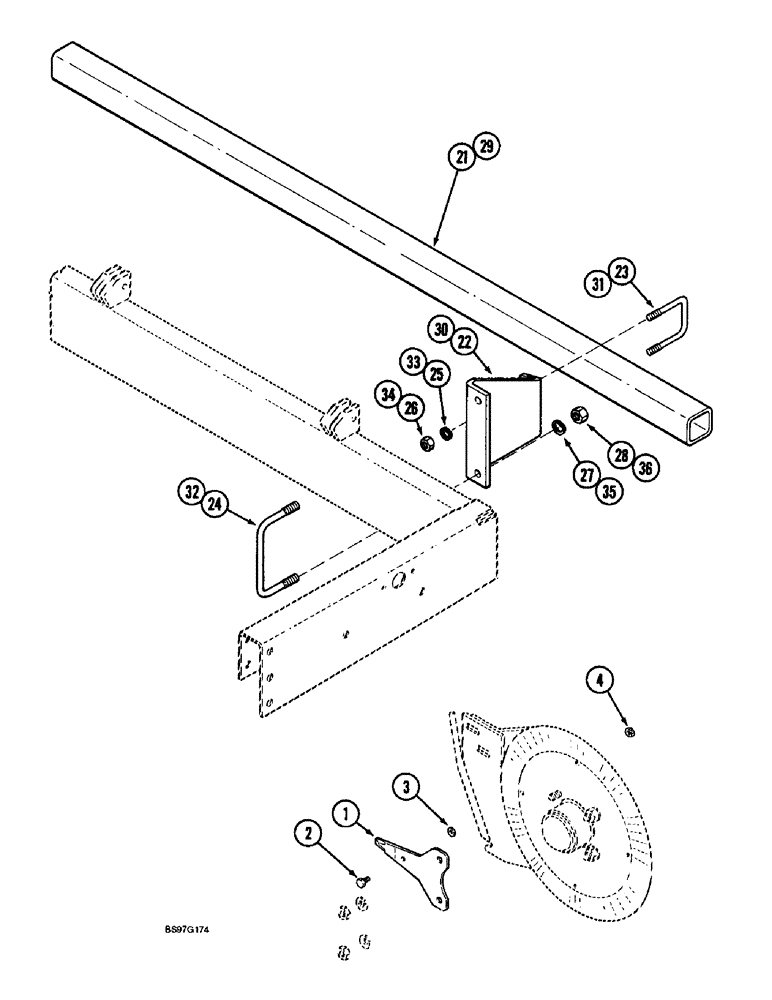

Схема запчастей Case IH 900 - (9-332) - KNIFE SCRAPER, RIDGE TILLAGE ATTACHMENT, CYCLO AIR & PLATE TRAILING PLANTERS (09) - CHASSIS/ATTACHMENTS
2
4
29
36
26
24
1
22
23
27
25
35
31
21
28
33
30
34
32
3

Артикул

Название

Примечание

Количество

1

1344522C1

KIT

BLADE - knife scraper

1шт.

2

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1980977C1

EXTENSION BAR ASSEMBLY - (Order components)

1шт.

21

1344526C1

TUBE,1702 mm Length

BAR - extension, 67 inch long

2шт.

22

1344525C1

BRACKET

- extension, 8 inch, bar

4шт.

23

1344524C1

U-BOLT

- 1/2 inch NC, 2-1/2 x 3-1/2 inch, extension bar

4шт.

24

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

- 5/8 inch NC, 6 x 3-1/2 inch, extension bar

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Extension bar 1/2"

8шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Extension bar 1/2"-13, G5

8шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Extension bar 5/8"

8шт.

28

425-1010

NUT,5/8"-11, G5

Extension bar 5/8"-11, G5

8шт.

1980978C1

EXTENSION BAR ASSEMBLY - (Order components)

1шт.

29

1344526C1

TUBE,1702 mm Length

BAR - extension, 67 inch long

2шт.

30

1344525C1

BRACKET

- extension, 8 inch, bar

6шт.

31

1344524C1

U-BOLT

- 1/2 inch NC, 2-1/2 x 3-1/2 inch, extension bar

6шт.

32

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

- 5/8 inch NC, 6 x 3-1/2 inch, extension bar

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Extension bar 1/2"

12шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Extension bar 1/2"-13, G5

12шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Extension bar 5/8"

12шт.

36

425-1010

NUT,5/8"-11, G5

Extension bar 5/8"-11, G5

12шт.

Выбрано товаров: 22
