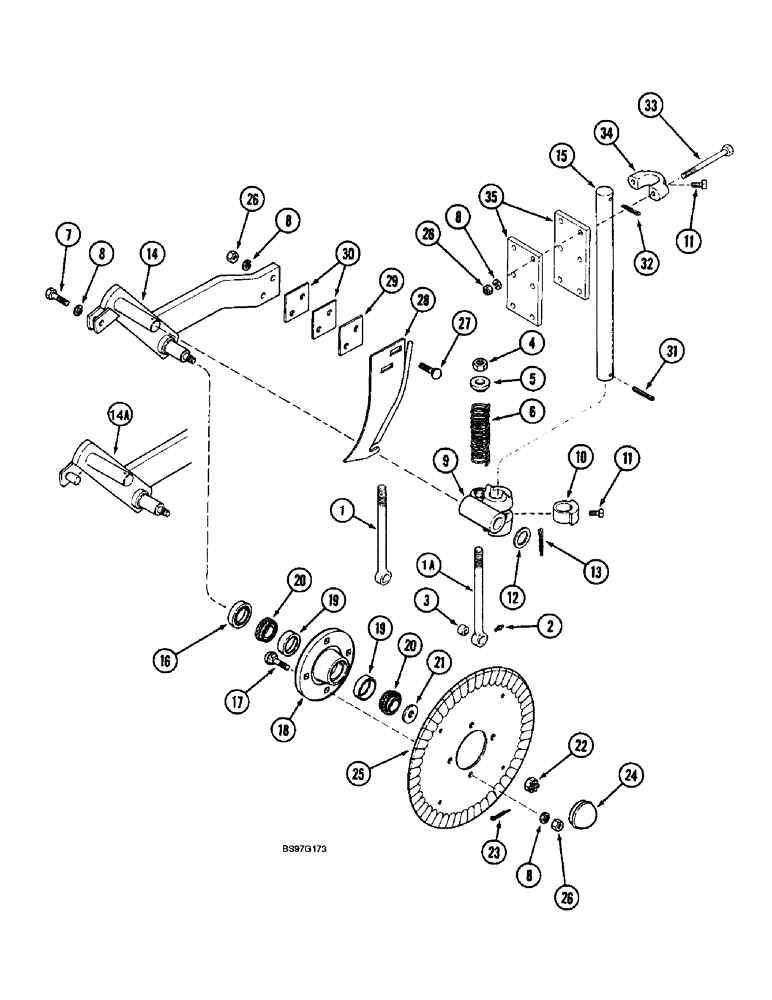

Запчасти Case IH 900 (9-326) - LIQUID FERTILIZER APPLICATOR, RIDGE TILLAGE ATTACHMENT CYCLO AIR & PLATE TRAILING PLANTERS (09) - CHASSIS/ATTACHMENTS

1a

116942A1

ROD

- pressure, used with 116944A1 arm, item 14A below

1шт.

1

1344502C1

ROD

ASSEMBLY - pressure, used with 1344509C1 arm, item 14 below

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

3шт.

3

1344503C1

BUSHING

- pressure rod, used with 1344502C1 rod above

1шт.

4

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

5

1344504C1

BUSHING

- spring

1шт.

6

1344505C1

SPRING

- pressure

1шт.

7

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

9

1344506C1

PIVOT

- coulter

1шт.

10

1344507C1

COLLAR

- locking

1шт.

11

485-16216

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW - set, square head, 5/8 NC x 1 inch, cup point

3шт.

12

1344508C1

BUSHING

- pivot

1шт.

13

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

14

1344509C1

ARM

- coulter, used with 1344502C1 pressure rod, item 1 above

1шт.

14a

116944A1

ARM

- coulter, used with 116942A1 pressure rod, item 1 above

1шт.

15

1344510C1

SHANK

- straight, 22 inch

1шт.

16

652769R91

OIL SEAL

- oil

1шт.

17

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

18

1344512C1

HUB

- coulter

1шт.

19

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

21

1344527C1

WASHER

- flat, 11/16 x 1-3/4 x 1/4 inch

1шт.

22

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

23

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

24

1344515C1

CAP

- hub

1шт.

25

1344516C1

PLOW DISC

COULTER - ripple, 17 inch

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

27

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

28

1344517C2

KNIFE

- liquid fertilizer

1шт.

29

1344518C1

SHIM

- 1/8 inch thick

1шт.

30

1344519C1

SHIM

- 1/16 inch thick

3шт.

31

38-32440

PIN,3/8" x 2 1/2", Coiled

1шт.

32

32-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

33

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

4шт.

34

1344520C1

SPECIAL CLAMP

- shank

2шт.

35

1986499C1

PLATE

- clamp (Replaces 1344521C1)

2шт.
