Запчасти Case IH 900 (9-324) - CLUTCH CONVERSION ASSEMBLY, RIDGE TILLAGE ATTACHMENT, CYCLO AIR & PLATE TRAILING PLANTERS (09) - CHASSIS/ATTACHMENTS

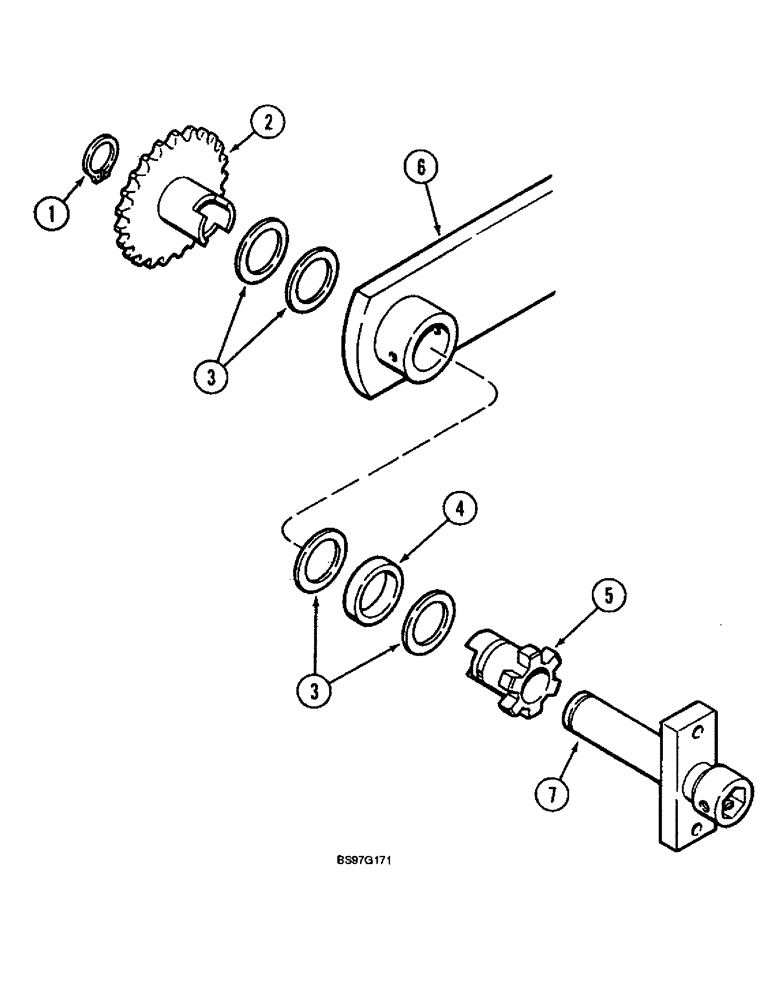

Схема запчастей Case IH 900 - (9-324) - CLUTCH CONVERSION ASSEMBLY, RIDGE TILLAGE ATTACHMENT, CYCLO AIR & PLATE TRAILING PLANTERS (09) - CHASSIS/ATTACHMENTS
3
6
4
7
2
3
5
1

Артикул

Название

Примечание

Количество

1

100-11125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

1976594C1

SPROCKET ASSY.

SPROCKET - clutch, 23 teeth

1шт.

3

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

4шт.

4

1980561C1

SPACER

- clutch

1шт.

5

1976596C1

HUB

- ratchet

1шт.

6

REF

INSTRUCTION

RAIL - wheel (See page 9-67)

1шт.

7

1980809C1

SLEEVE

- clutch

1шт.

Выбрано товаров: 7
