Запчасти Case IH 900 (9-320) - MOUNTING BRACKETS, RIDGE TILLAGE ATTACHMENT,CYCLO AIR & PLATE TRAILING PLANTERS, NARROW ROW PLANTERS (09) - CHASSIS/ATTACHMENTS

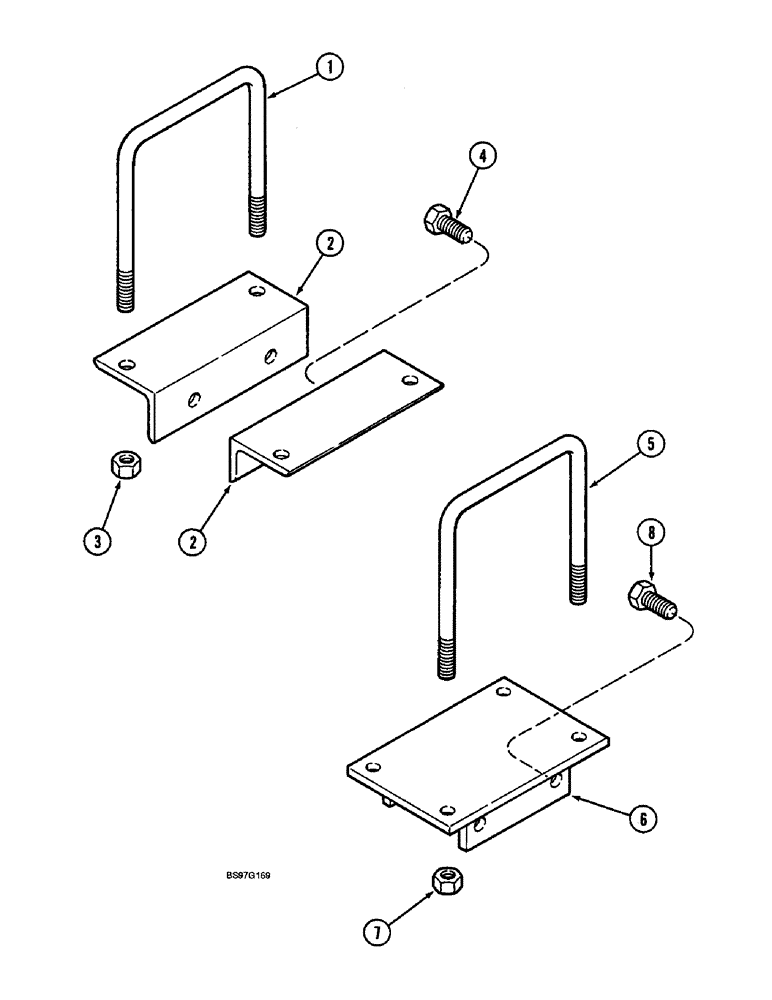

Схема запчастей Case IH 900 - (9-320) - MOUNTING BRACKETS, RIDGE TILLAGE ATTACHMENT,CYCLO AIR & PLATE TRAILING PLANTERS, NARROW ROW PLANTERS (09) - CHASSIS/ATTACHMENTS
2
5
4
6
2
1
8
3
7

Артикул

Название

Примечание

Количество

1

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

2

1973148C1

ANGLE

- toolbar bracket

2шт.

3

425-1010

NUT,5/8"-11, G5

4шт.

4

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

5

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, wide row planters

2шт.

6

1973144C1

BRACKET

- toolbar, wide row planters

1шт.

7

425-1010

NUT,5/8"-11, G5

Wide row planters 5/8"-11, G5

4шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Wide row planters Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

Выбрано товаров: 8
