Запчасти Case IH 900 (9-316) - WEIGHT BRACKET ATTACHMENT, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS

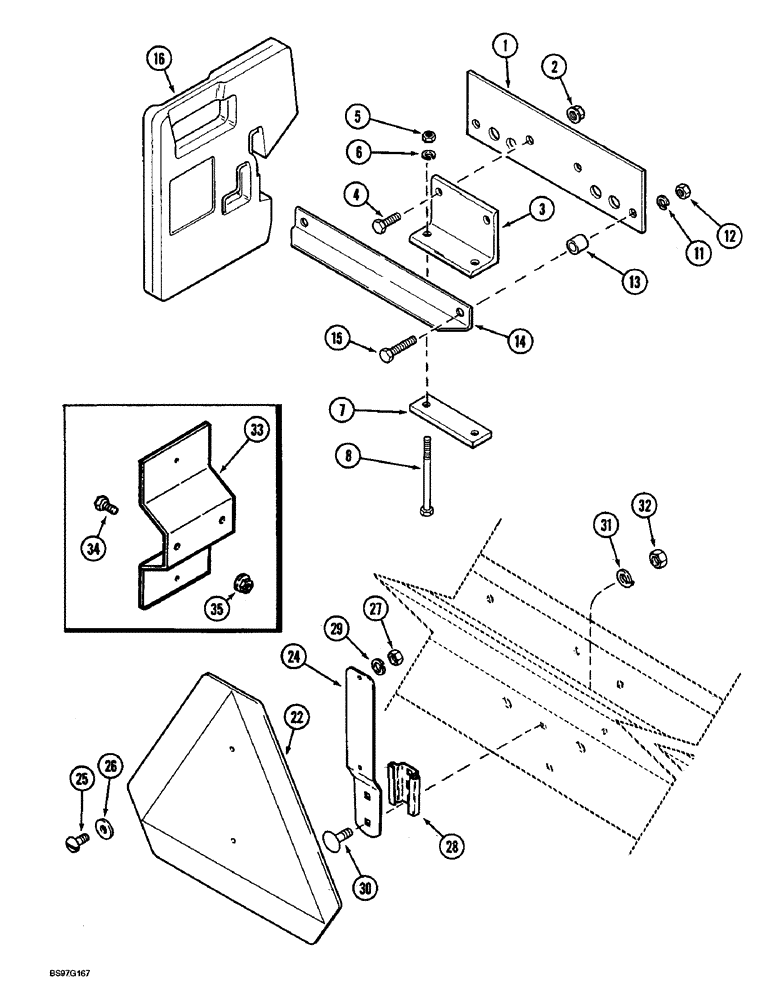

Схема запчастей Case IH 900 - (9-316) - WEIGHT BRACKET ATTACHMENT, CYCLO AIR SEMI-MOUNTED, CORN/SOYBEAN SPECIAL (09) - CHASSIS/ATTACHMENTS
26
30
6
7
24
25
14
5
34
3
8
13
33
32
22
12
2
16
35
27
28
4
31
29
11
15
1

Артикул

Название

Примечание

Количество

1

1277855C1

PLATE

- weight bracket

2шт.

2

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

4шт.

3

113021C1

ANGLE

- weight plate bracket

2шт.

4

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

113022C1

BAR

- angle mounting

2шт.

8

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch

4шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

13

529380R1

SPACER

- hitch lock

4шт.

14

1277856C1

ANGLE

- weight clamp

2шт.

15

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

4шт.

16

71199C1

WEIGHT

- 30 kg (67 pounds) (Machinery item)

1шт.

16

A67373

WEIGHT

- 34 kg (75 pounds), no longer available

1шт.

16

A169111

WEIGHT

- 45 kg (100 pounds)

1шт.

407220R1

PRODUCT GRAPHIC

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

22

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

REF

INSTRUCTION

DECAL - slow moving vehicle (See Page 9-335)

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET - emblem support, smv

1шт.

25

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch, smv emblem

2шт.

26

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch, smv emblem

2шт.

27

225-14110

NUT,#10-24

SMV emblem #10-24

2шт.

28

A59457

BRACKET

- mounting, smv emblem

1шт.

29

492-11010

LOCK WASHER,#10

WASHER, LOCK, , SMV emblem #10

2шт.

30

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, SMV emblem

2шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , SMV emblem 5/16"

2шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, SMV emblem

2шт.

33

1277551C1

BRACKET

- mounting, Cyclo Air horizontal folding, smv emblem

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, SMV emblem

2шт.

35

231-5146

FLANGE NUT,3/8"-16

SMV emblem Flg, USR, 3/8"-16

2шт.

Выбрано товаров: 31
