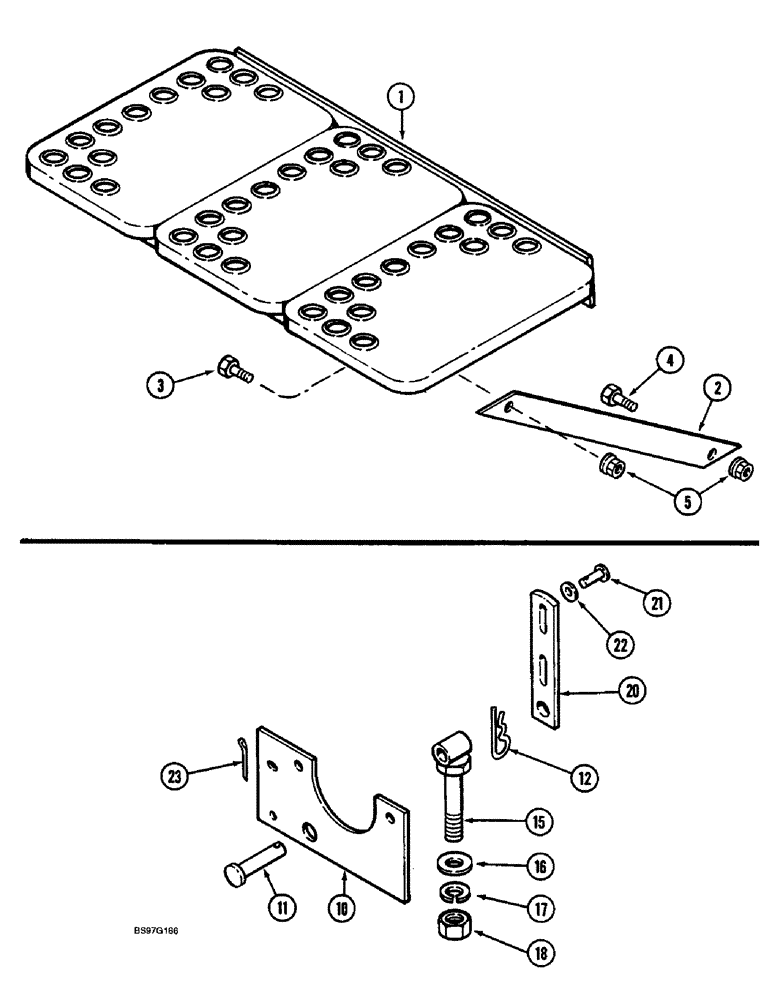

Запчасти Case IH 900 (9-314) - PLATFORM ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

1345270C1

PLATFORM

- planter (Replaces 1254178C1)

1шт.

2

1254180C1

BAR

SUPPORT - platform

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

4

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

5

231-5146

FLANGE NUT,3/8"-16

6шт.

10

56773C2

PLATE

- pump mounting, attachment

1шт.

11

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, pump mounting attachment

1шт.

12

492-11075

LOCK WASHER,3/4"

pump mounting attachment 3/4"

1шт.

15

1958312C1

ANCHOR

BOLT - special, 5/8 NC x 3-1/2 inch, pump mounting attachment

1шт.

16

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch, pump mounting attachment

1шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Pump mounting attachment 5/8"

1шт.

18

425-1010

NUT,5/8"-11, G5

Pump mounting attachment 5/8"-11, G5

1шт.

20

56774C1

BRACKET

- adjusting, pump mounting attachment

1шт.

21

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2, pump mounting attachment

2шт.

22

496-21047

WASHER

- flat, 15/32 x 59/64 x 7/64 inch, hardened, pump mounting attachment

4шт.

23

432-1216

COTTER PIN,3/16" x 1"

Pump mounting attachment 3/16" x 1"

2шт.
