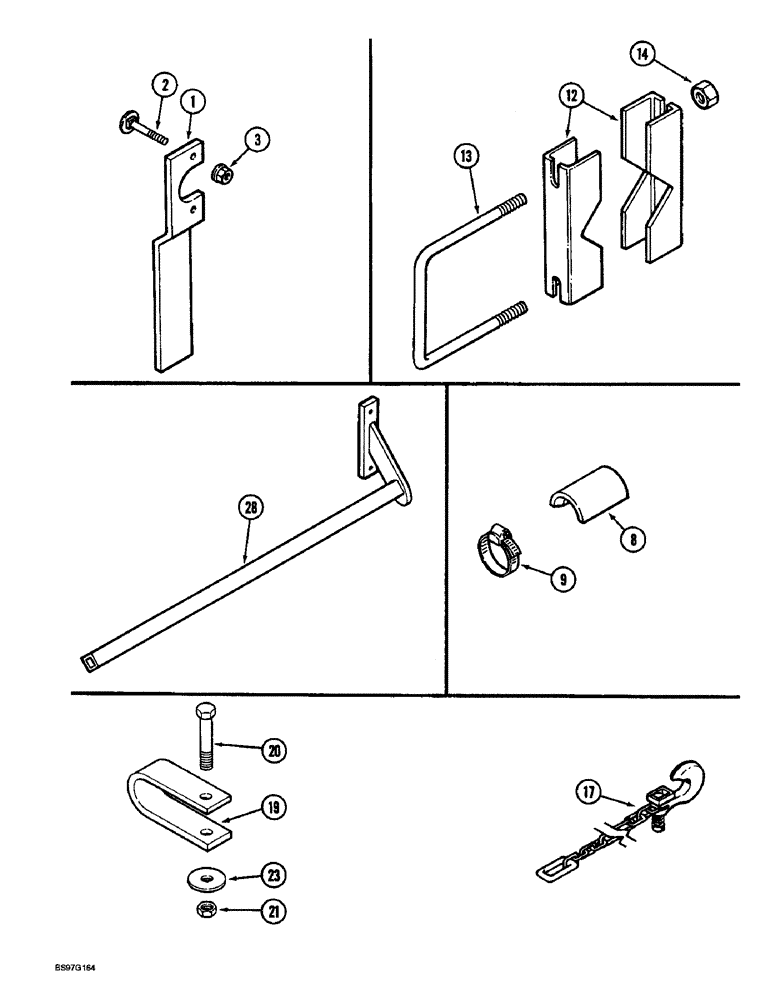

Запчасти Case IH 900 (9-310) - ROCK GUARD ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

1250733C1

BAR

- rock guard

2шт.

2

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

8

96358C1

STOP

- cylinder anchor

4шт.

9

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 - 3-1/2 inch dia, to 3-1/2 inch, cylinder stop

2шт.

12

1261161C1

CHANNEL

- frame bracket, tool bar attachments

4шт.

13

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch, tool bar attachments

2шт.

14

425-1010

NUT,5/8"-11, G5

Tool bar attachments 5/8"-11, G5

4шт.

17

100682C3

CHAIN (AG)

CHAIN - hitch, 5/16 link x 59-1/4 inch, safety

1шт.

61913C92

PACKAGE

KIT - clevis, safety chain

1шт.

19

148558C1

CLEVIS

- chain, safety

1шт.

20

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Safety chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

21

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC, safety chain

1шт.

23

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 11/64 inch, safety chain

1шт.

28

1250642C91

BAR - tool, 1143 mm (45 inch) long (Machinery item), safety chain

1шт.

28

1250643C91

BAR - tool, 1448 mm (57 inch) long (Machinery item), safety chain

1шт.
