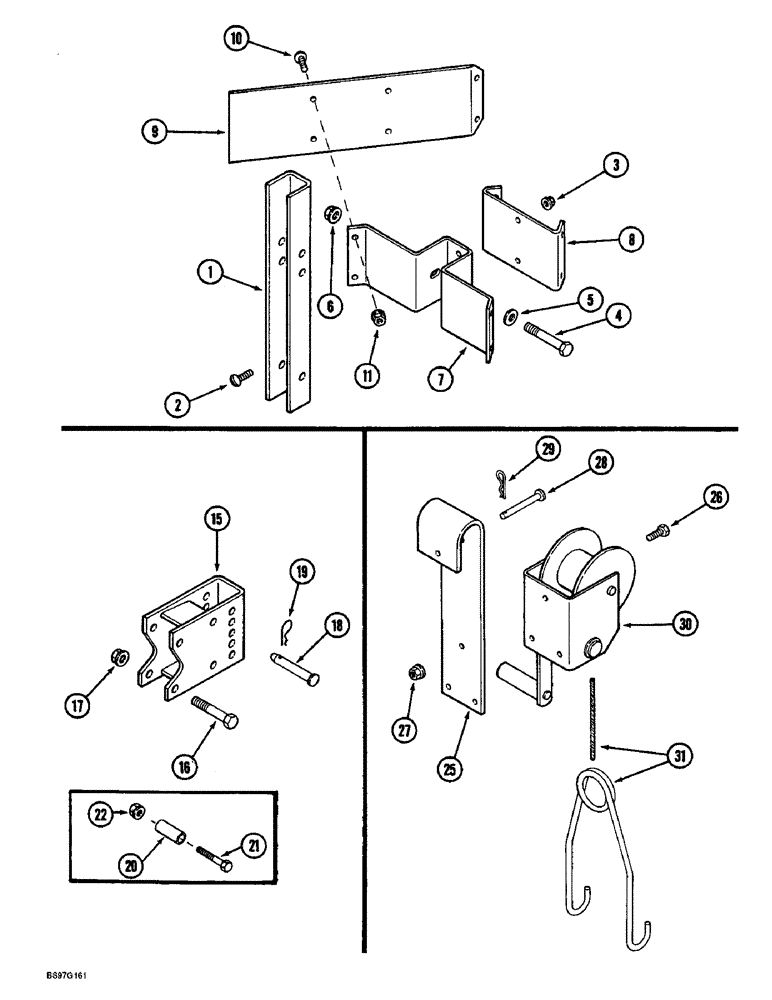

Запчасти Case IH 900 (9-304) - WING FURROWING ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

141232C2

CHANNEL

BRACKET - furrowing channel

1шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

6

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

1шт.

7

141231C1

SUPPORT

- furrowing, rear

1шт.

8

141230C1

SUPPORT

- furrowing, front

1шт.

9

141229C1

BLADE

- furrowing

2шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

11

231-5146

FLANGE NUT,3/8"-16

10шт.

15

90974C1

BRACKET

- socket, tillage support attachment

1шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, tillage support attachment

2шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Tillage support attachment Flg, USR, 1/2"-13

2шт.

18

147404C1

PIN,12.7mm OD x 83mm L

- clevis, 1/2 x 3-1/4 inch, tillage support attachment

1шт.

19

1978738C1

HAIR PIN COTTER

3/16", tillage support attachment

1шт.

20

141235C2

SPACER

- support (If equipped), tillage attachment

2шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, tillage support attachment

1шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

Tillage support attachment Flg, USR, 1/2"-13

1шт.

25

1268285C1

SUPPORT

- winch, lif

1шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Lift winch Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

27

231-5146

FLANGE NUT,3/8"-16

Lift winch Flg, USR, 3/8"-16

3шт.

28

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN - headed, 3/8 x 3 inch, lift winch

1шт.

29

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Lift winch

1шт.

30

1268233C1

WINCH

- planter, lift winch

1шт.

31

1279161C1

CABLE

- winch, lift

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
