Запчасти Case IH 900 (9-298) - BLACKLAND ATTACHMENT, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

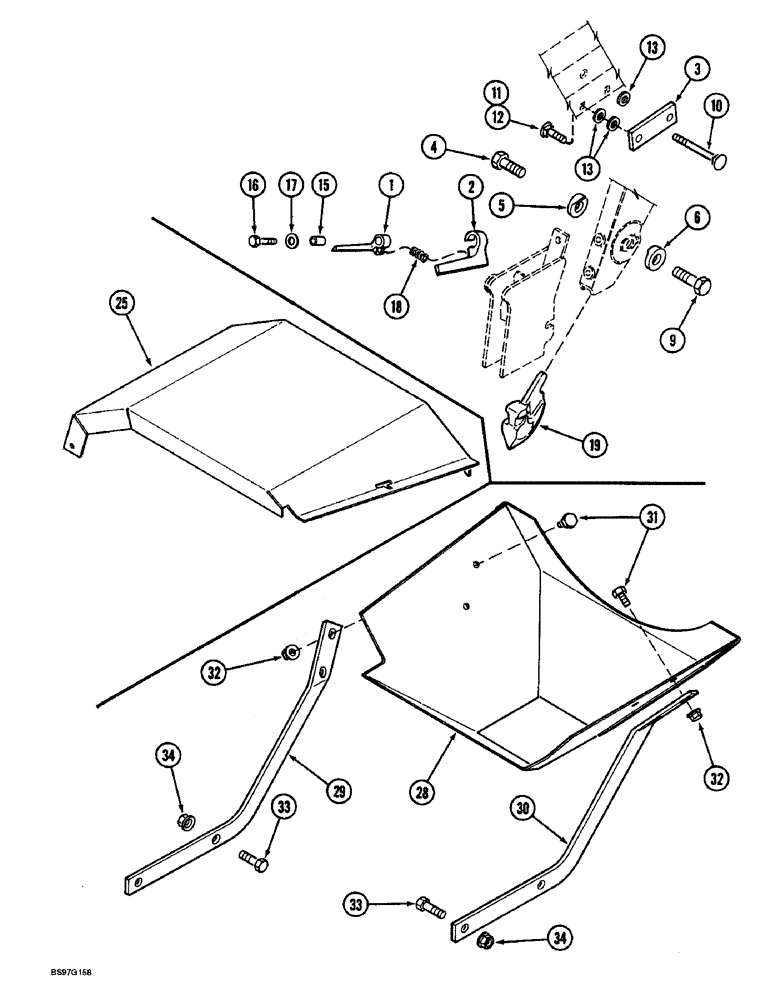

Схема запчастей Case IH 900 - (9-298) - BLACKLAND ATTACHMENT, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
10
3
2
1
9
18
19
13
12
25
11
15
29
4
16
30
13
34
33
17
6
32
5
31
28
32
33
34

Артикул

Название

Примечание

Количество

1

1279848C2

HOLDER

BLADE - scraper, left-hand

2шт.

2

1279849C1

HOLDER

BLADE - scraper, right-hand

2шт.

3

1268311C1

SPACER

- bar, 32 (1-1/4) x 82 (3-7/32) inch

6шт.

4

113-2656

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8, LH Thd, Full Thd

- hex, left-hand thread, 5/8 NC x 1-3/4 inch, grade 8

2шт.

5

90918C1

WASHER

SHIM - scraper, blade, left-hand

2шт.

6

90919C1

WASHER

SHIM - scraper, blade, right-hand

2шт.

9

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

10

433-552

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/4", Gr 5

BOLT - carriage, 5/16 NC x 3-1/4 inch

2шт.

11

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

4шт.

12

412-520

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1 1/4", Gr 2

BOLT - carriage, 5/16 NC x 1-1/4 inch, grade 2

4шт.

13

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

20шт.

15

1279850C2

SPACER

- 1/2 x 3/8 x 51/64 inch

2шт.

16

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch

2шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

18

528533R1

SPRING

- scraper blade

2шт.

19

96401C1

POINT

- furrow firming

2шт.

25

1264319C2

GUARD

- mud, seed drum, cyclo air vertical folding - 12 row narrow

2шт.

28

1264163C1

HOPPER

FUNNEL - seed, if used, attachment cyclo air planters- all except trailing

1шт.

28

141265C1

CHUTE ASSY.

CHUTE - seed funnel, if used, not shown, see page 9-117, attachment cyclo air planters- all except trailing

1шт.

29

1264161C1

SUPPORT

ARM - funnel support, left-hand, if used, seed attachment cyclo air planters- all except trailing

1шт.

29

1547161C2

BRACKET

SUPPORT - seed funnel, left-hand, if used, see page 9-117, attachment cyclo air planters- all except trailing

1шт.

30

1264162C1

SUPPORT

ARM - funnel support, right-hand, if used, seed attachment cyclo air planters- all except trailing

1шт.

30

1547160C1

BRACKET

SUPPORT - seed funnel, if used, see page 9-117, attachment cyclo air planters- all except trailing

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Seed funnel attachment cyclo air planters- all except trailing Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

32

231-5146

FLANGE NUT,3/8"-16

Seed funnal attachment Cyclo air planters- all except trailing Flg, USR, 3/8"-16

4шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Seed funnal attachment cyclo air planters- all except trailing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

34

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

Seed funnal attachment cyclo air planters- all except trailing Flg, USR, 1/2"-13, G8

4шт.

Выбрано товаров: 27
