Запчасти Case IH 900 (9-296) - FERTILIZER APPLICATOR, FOR COU-TILL ATTACHMENT (09) - CHASSIS/ATTACHMENTS

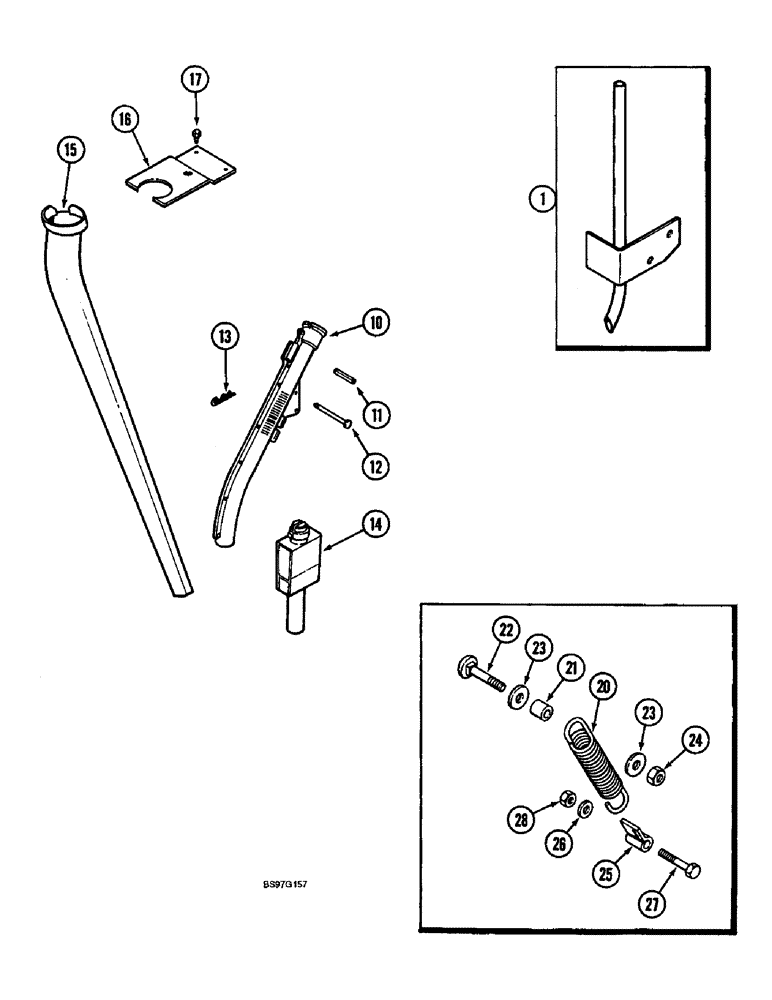

Схема запчастей Case IH 900 - (9-296) - FERTILIZER APPLICATOR, FOR COU-TILL ATTACHMENT (09) - CHASSIS/ATTACHMENTS
23
22
25
16
15
1
21
23
14
27
10
26
13
20
12
11
24
17
28

Артикул

Название

Примечание

Количество

1

1268012C1

TUBE,145 mm Length

- liquid fertilizer

2шт.

10

1986373C1

TUBE

DIFFUSER - air, attachment cyclo air planters

1шт.

11

23670R1

PIN,6.35mm OD x 34.92mm L, Coiled

air diffuser attachment, cyclo planters 1/4" x 1 3/8", Coiled

1шт.

12

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

PIN - pointed, 1/4 x 2-3/4 inch, air diffuser attachment, cyclo planters

2шт.

13

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Air diffuser attachment, Cyclo planters

1шт.

14

147237C1

PLASTIC-RUBBER TUBE

SENSOR - seed tube, dummy (Used without seed monitor), air diffuser attachment, cyclo planters

1шт.

15

1279715C1

TUBE

- seed, without sensor (Corn and beans), air diffuser attachment, cyclo planters

1шт.

15

1263845C2

TUBE,30 mm Length

- seed, without sensor (Beets), air diffuser attachment, cyclo planters

1шт.

16

1279947C1

SUPPORT TUBE,152 mm Length

SUPPORT - seed tube, air diffuser attachment, cyclo planters

1шт.

17

27313R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

BOLT - hex self-tapping, 1/4 NC x 5/8 inch, air diffuser attachment, cyclo planters

2шт.

20

147425C5

SPRING

- pressure attachment, plate planters

2шт.

21

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

- 1/2 x 7/8 inch, pressure spring attachment plate planters

2шт.

22

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - carriage, 1/2 NC x 2-1/2 inch pressure spring attachment plate planters

2шт.

23

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch, if used pressure spring attachment plate planters

4шт.

24

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC pressure spring attachment plate planters

2шт.

25

1344965C2

BRACKET

- pressure spring attachment plate planters

2шт.

26

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64", Pressure spring attachment plate planters

2шт.

27

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, Pressure spring attachment plate planters

2шт.

28

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC, Pressure spring attachment plate planters

2шт.

Выбрано товаров: 19
