Запчасти Case IH 900 (9-292) - FRONT MOUNTED INSECTICIDE SPREADER, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

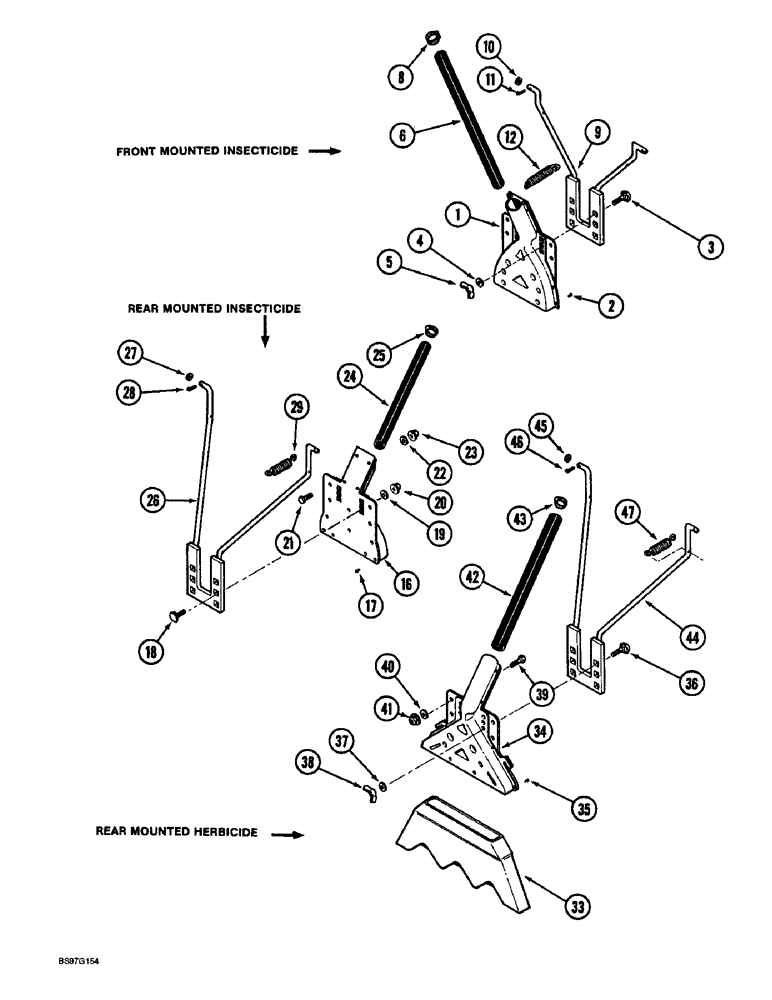

Схема запчастей Case IH 900 - (9-292) - FRONT MOUNTED INSECTICIDE SPREADER, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
29
1
27
38
23
4
40
18
46
11
37
3
39
20
17
5
16
36
35
10
25
12
21
42
2
28
41
34
24
19
45
6
26
33
44
22
9
47
43
8

Артикул

Название

Примечание

Количество

1

1986065C2

SLINGER

SPREADER - insecticide

1шт.

2

1254229C1

RIVET

- oval head

6шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

2шт.

4

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

5

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

6

543746R2

HOSE,19.05 mm ID x 279.00 mm

19.05 mm ID x 279.00mm, Cut from 1254166C2 bulk hose, see below

1шт.

6

149307C1

HOSE

- 559 mm (22 inch) long, cut from 1254166C2 bulk hose

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

1шт.

9

149256C3

SUPPORT

- spreader

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (If equipped) 3/8", SAE

2шт.

11

432-816

COTTER PIN,1/8" x 1"

if equipped 1/8" x 1"

2шт.

12

650949C1

VALVE SPRING

SPRING - rear, (If equipped)

1шт.

16

1986065C2

SLINGER

SPREADER - insecticide, rear mounted, cyclo air plate planters

1шт.

17

1254229C1

RIVET

- oval head

6шт.

18

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch, rear mounted insecticide spreader

2шт.

19

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch, rear mounted insecticide spreader

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces 523193R1), rear mounted insecticide spreader

2шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, rear mounted insecticide spreader

4шт.

22

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch, rear mounted insecticide spreader

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, rear mounted insecticide spreader

4шт.

24

141224C1

HOSE,19.05 mm ID x 355.00 mm

- 356 mm (14 inch) long, cut from 1254166C2 bulk hose, rear mounted insecticide spreader

1шт.

25

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Rear mounted insecticide spreader #10, 0.56/1.06 Type F Worm

1шт.

26

137101C2

SUPPORT

- rear mounted insecticide spreader

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (If equipped), rear mounted insecticide spreader 3/8", SAE

2шт.

28

432-816

COTTER PIN,1/8" x 1"

if equipped, rear mounted insecticide spreader 1/8" x 1"

2шт.

29

650949C1

VALVE SPRING

SPRING - rear, (If eqiupped), rear mounted insecticide spreader

1шт.

33

100087C1

DEFLECTOR

- herbicide

1шт.

34

1986066C2

DRILL

SPREADER - herbicide

1шт.

35

1254229C1

RIVET

- oval head, herbicide spreader

6шт.

36

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch, herbicide spreader

2шт.

37

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch, herbicide spreader

2шт.

38

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC, herbicide spreader

2шт.

39

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, herbicide spreader

4шт.

40

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch, herbicide spreader

4шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, herbicide spreader

4шт.

42

141224C1

HOSE,19.05 mm ID x 355.00 mm

- 356 mm (14 inch) long, cut from 1254166C2 bulk hose, herbicide spreader

1шт.

43

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Herbicide spreader #10, 0.56/1.06 Type F Worm

1шт.

44

137101C2

SUPPORT

- herbicide spreader

1шт.

45

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (If equipped), Herbicide spreader

2шт.

46

432-816

COTTER PIN,1/8" x 1"

if equipped, herbicide spreader 1/8" x 1"

2шт.

47

650949C1

VALVE SPRING

SPRING - rear, (If equipped), herbicide spreader

1шт.

1254166C2

TUBE

HOSE - bulk, 19 (3/4) ID x 30480 mm (1200 inch) long, herbicide spreader

1шт.

Выбрано товаров: 42
