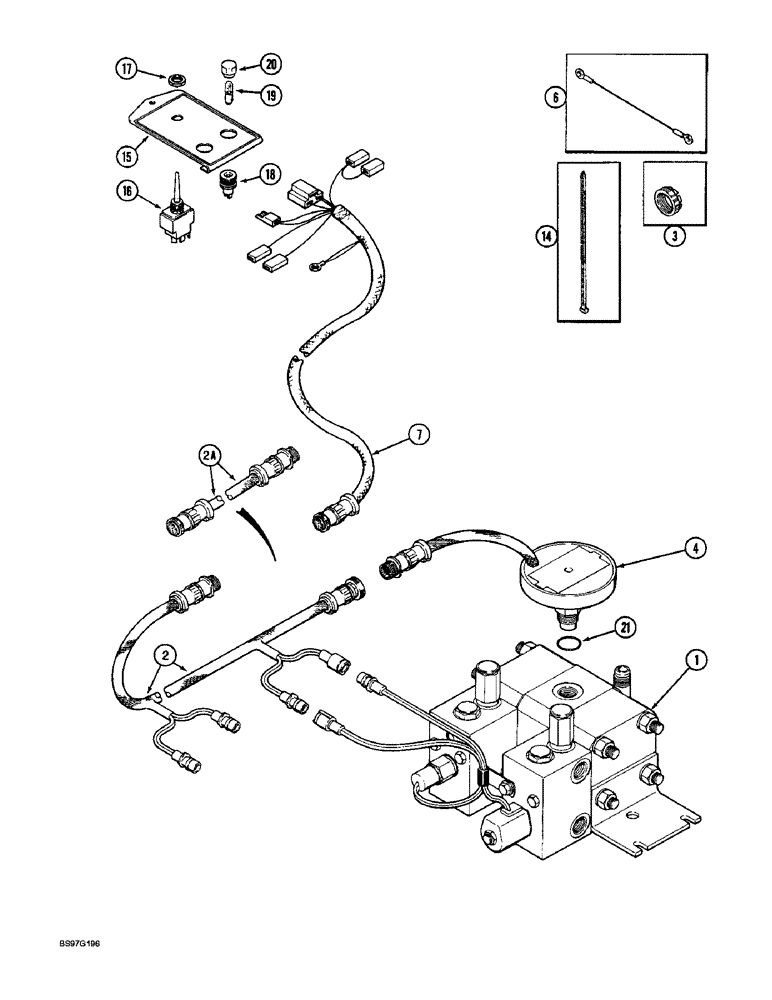

Запчасти Case IH 900 (4-36) - LEVEL LIFT CONTROL SYSTEM, CYCLO AIR & PLATE TRAILING, 8 ROW WIDE & 12 ROW NARROW (04) - ELECTRICAL SYSTEMS

1

142860C92

VALVE

ASSEMBLY - level lift (See Page 8-123)

1шт.

2

141409C1

HARNESS

- planter, at valve

1шт.

2a

144910C3

HARNESS

- extension, control, 5497 mm (216 inch) long

1шт.

3

149456C91

SET

KIT - connector ring, set of 10

1шт.

4

141401C2

TESTER

CONTROL ASSEMBLY - level lift, fixed

1шт.

4

1980666C2

CONTROL

ASSEMBLY - level lift, adjustable (Replaces 1337980C1)

1шт.

6

117620C1

CABLE

WIRE - 152 mm (6 inch) long

1шт.

7

141405C2

HARNESS

- control, at switch

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

15

149492C1

PLATE

ASSEMBLY - marker control (Automatic markers with waterway feature)

1шт.

15a

149482C1

PRODUCT GRAPHIC

DECAL - marker control, automatic markers with waterway feature (not shown) (See Page 9-339, item 11)

1шт.

16

1250682C1

SWITCH

ASSEMBLY - marker control (Automatic markers)

1шт.

17

57603C1

NUT

- hex, special

1шт.

18

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator

2шт.

19

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

20

71652C1

LENS

- lamp

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
