Запчасти Case IH 900 (9-290) - GRANULAR CHEMICAL RATE CONTROL, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

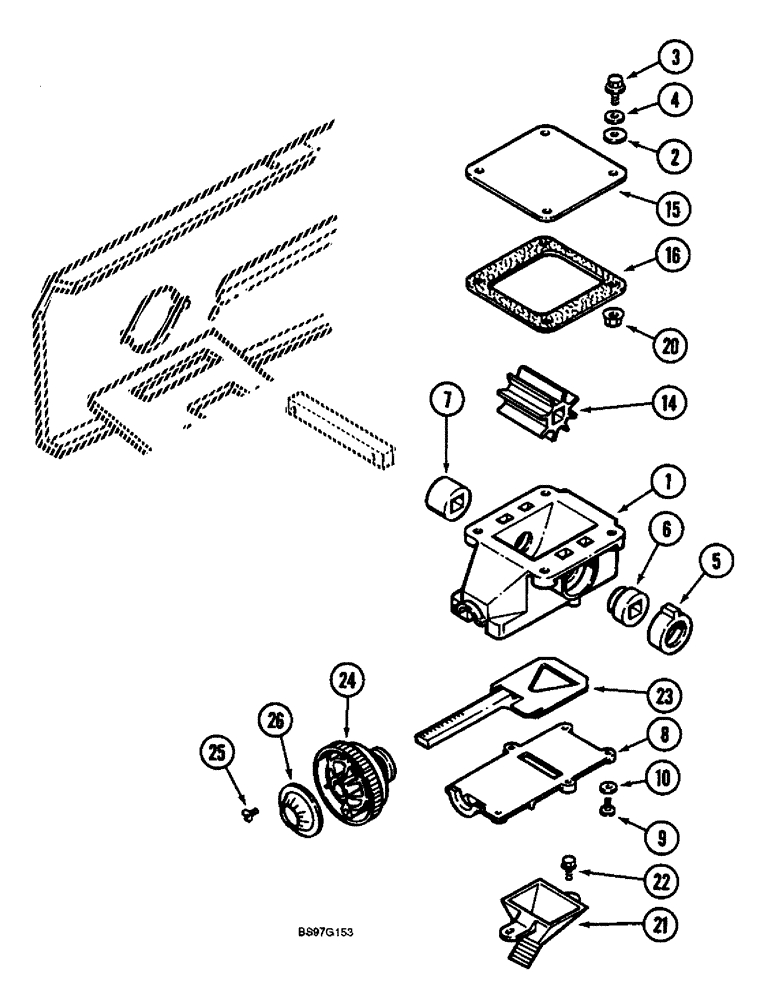

Схема запчастей Case IH 900 - (9-290) - GRANULAR CHEMICAL RATE CONTROL, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS
22
21
23
10
20
24
7
3
6
1
4
9
26
5
16
14
2
8
25
15

Артикул

Название

Примечание

Количество

1

137043C1

HOUSING

- feed roller

1шт.

2

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

- rubber

4шт.

3

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

4

21784R1

WASHER

- flat, 17/64 x 1/2 x 3/64 inch

4шт.

5

134293C1

HOUSING

BUSHING - housing

2шт.

6

134297C1

BUSHING

- drive shaft

2шт.

7

134290C1

SPACER

- coupling

1шт.

8

137055C1

RETAINER

- gauge control

1шт.

9

261-34510

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 5/8 inch

6шт.

10

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

6шт.

14

134296C1

ROLL

ER - feed

1шт.

15

137186C1

COVER

- housing

1шт.

16

134298C1

GASKET

- cover

1шт.

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

- rubber

4шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

21

137044C1

NECK FILLER

FUNNEL - chemical flow

1шт.

22

281-4466

SELF-TAP SCREW,Hex Wash Hd, #12 x 3/8"

SCREW - self-tapping, hex washer head, No. 12 NC x 3/8 inch

2шт.

23

134286C1

GAUGE

GATE - rate control

1шт.

24

134287C1

KNOB

- gauge

1шт.

25

1276100C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head slotted lock

2шт.

26

134294C1

DIAL

INDICATOR - dial handle disc

1шт.

Выбрано товаров: 21
