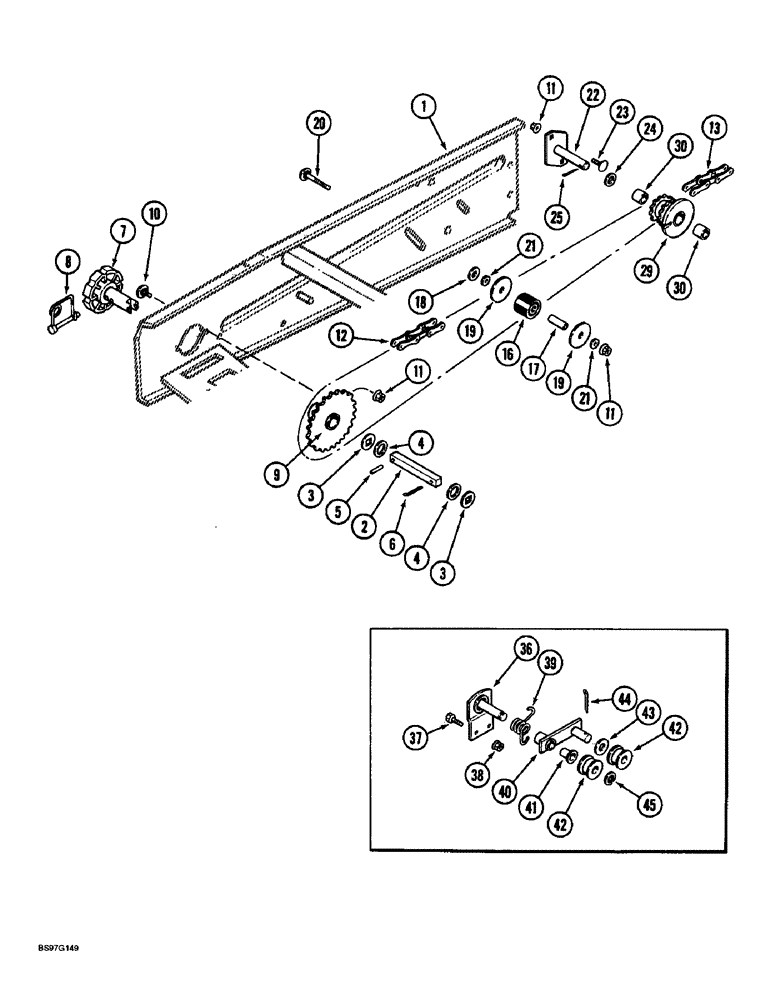

Запчасти Case IH 900 (9-284) - GRANULAR CHEMICAL ATTACHMENT DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME ASSEMBLY - hopper support (See Page 9-289)

1шт.

2

134254C1

BAR

- drive

1шт.

3

134253C1

SQ HOLE WASHER

- square hole flat, 19/32 x 1-1/4 x 1/16 inch

2шт.

4

95-81049

WASHER,57/64" x 1 1/4" x .036"

- flat, 29/32 x 1-1/2 x 1/32 inch

1шт.

5

38-31016

PIN,5/32" x 1", Coiled

1шт.

6

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

1264422C92

BUTTON

KNOB ASSEMBLY - drive, no longer available, order components

1шт.

7

145153C2

KNOB

- drive

1шт.

8

140933C2

PIN

- quick release

1шт.

9

136947C91

SPROCKET ASSY.

SPROCKET - drive, 30 teeth

1шт.

10

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (Use 161 links from bulk chain 475879R91, and 1 connecting link 241-2314)

1шт.

13

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (Use 61 links from bulk chain 475879R91, and 1 connecting link 241-2314)

1шт.

475879R91

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-2314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

16

57796C1

ROLLER

- chain tightener

1шт.

17

134288C1

SPACER

- roller

1шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

19

495-81166

WASHER,17/32" x 2" x .060"

Flat 17/32" x 2" x .060"

2шт.

20

411-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT - carriage, 5/16 NC x 2-1/4 inch, grade 2

1шт.

21

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

2шт.

22

140789C1

SHAFT

- drive (Cyclo Air except seed growers special)

1шт.

23

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

24

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

1шт.

25

432-1216

COTTER PIN,3/16" x 1"

2шт.

29

1279285C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - 12 teeth

1шт.

30

140904C1

BUSHING,15.88mm ID x mm OD x 19.05mm L

BUSHING - sprocket

2шт.

36

1277838C1

LEVER

ARM - tightener

1шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

1277854C2

SPRING

- idler

1шт.

40

1277658C1

LEVER

IDLER - arm

1шт.

41

1277785C1

BUSHING,15.9mm ID x 17.45mm OD x 28.57mm L

- idler

1шт.

42

1277653C1

IDLER

ROLLER - idler

2шт.

43

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

44

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

45

100-1662

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.
