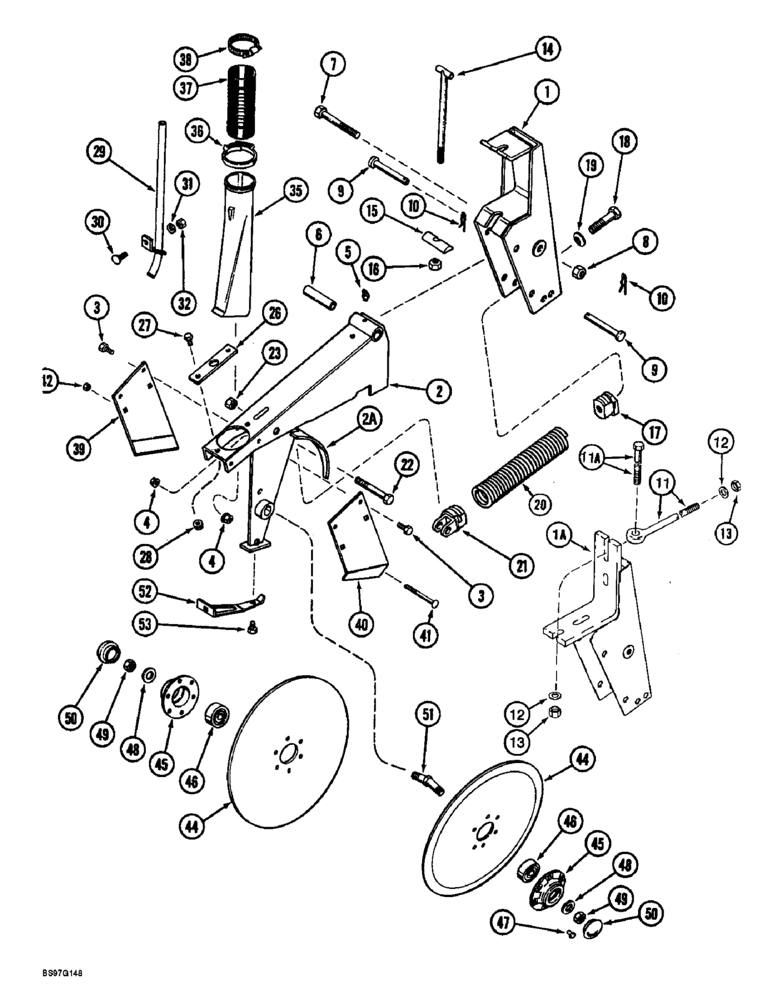

Запчасти Case IH 900 (9-282) - FERTILIZER DISC OPENERS, CYCLO AIR AND PLATE TRAILING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

1

1250739C3

HANGER

SUPPORT - hanger, disc opener, no longer available, order item 1A, 128884A4 support, item 11, 136795A2 eyebolt, item 11A,413-8112 bolt, (2) item 12, 495-81196 washer, and (2) item 13, 425-108 bolt

1шт.

1a

128884A4

SUPPORT ASSY.

SUPPORT - hanger, disc opener

1шт.

2

1250742C2

FRAME

- disc

1шт.

2a

1250727C1

GUARD

- stone

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

5

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45°, 3/16 drive type x 13/16"

1шт.

6

1250726C1

TUBE,12.95 mm ID, 19.05 mm OD, 76 mm Length

SPACER - bracket

1шт.

7

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

9

439-5860

HEADED PIN,1/2" x 3 3/4"

PIN - headed, 1/2 x 3-3/4 inch

2шт.

10

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

2шт.

11

136795A2

EYEBOLT

- 1/2 NC x 3-15/16 inch

1шт.

11a

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch

1шт.

12

495-81196

WASHER,29.36mm ID x 69.85mm OD x 1.7mm Thk

- flat, 1-5/32 x 2-3/4 x 3/64 inch

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

1250722C2

BOLT,1/2" - 13 x 217mm

T-BOLT - 1/2 inch NC

1шт.

15

1277676C1

GUIDE

- T-bolt

1шт.

16

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

17

591547R1

PLUG

- spring retaining

1шт.

18

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

19

1250736C1

WASHER

- pivot

1шт.

20

591546R2

SPRING

- shank return, opener

1шт.

21

1250700C1

PLUG

- spring retaining

1шт.

22

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

23

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

26

147424C1

STRIP

PLATE - tube locator (Liquid fertilizer)

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

29

147421C2

TUBE,283 mm Length

- fertilizer (Liquid fertilizer)

1шт.

30

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

35

140995C2

TUBE,212 mm Length

- drop (Dry fertilizer)

1шт.

36

141000C1

HOSE CLAMP,54mm - 60mm

CLAMP - retaining (Dry fertilizer)

1шт.

37

141007C1

HOSE,35-54 mm ID x 100.011 mm

- 100 mm (4 inch) long (Dry fertilizer)

1шт.

38

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable (Dry fertilizer) #32, 1.56/2.50 Type F Worm

1шт.

39

1250734C2

FAN BLADE

SCRAPER - disc, left-hand

1шт.

40

1250735C2

FAN BLADE

SCRAPER - disc, right-hand

1шт.

41

19659R1

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3 1/4", Gr 2

BOLT - carriage, 1/4 NC x 3-1/4 inch, grade 2

1шт.

42

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

141464C92

DISC

OPENER ASSY, JD

2шт.

44

492756R1

DISC

- opener

1шт.

45

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

- bearing

1шт.

46

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

46

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

47

273160

DISC

- flat head, 1/4 x 1/2 inch

6шт.

48

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- retaining

1шт.

49

129-347

JAM NUT,Jam, 5/8"-11, G5, LH

1шт.

49

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

50

492709R2

CAP

- bearing

2шт.

51

492750R2

BOLT

- special

1шт.

52

140994C1

SUPPORT

- disc scraper

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.
