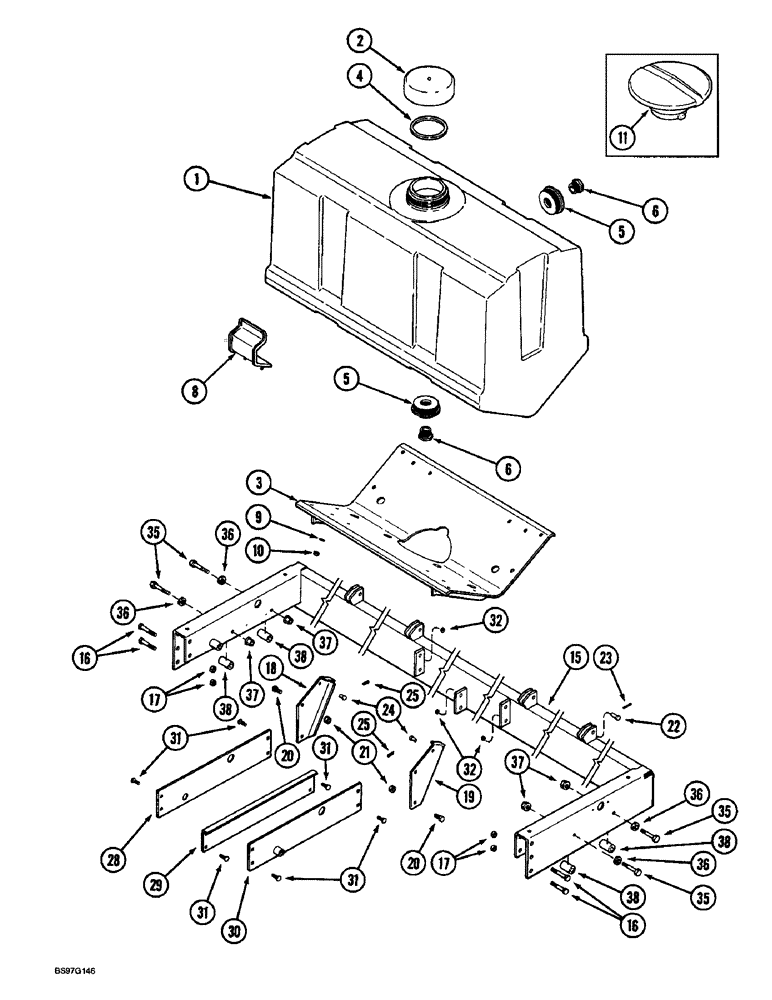

Запчасти Case IH 900 (9-278) - LIQUID FERTILIZER TANK, CYCLO AIR AND PLATE TRAILING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

1

1345311C1

HOPPER

TANK - liquid fertilizer, 70 gallon (Replaces 145080C1)(Shown)

1шт.

1

1345312C1

HOPPER

TANK - liquid fertilizer, 110 gallon (Replaces 145079C1)(Shown)

1шт.

1

145080C1

HOPPER

TANK - fertilizer, 70 gallon (With recessed cap threads)

1шт.

1

145079C1

HOPPER

TANK - fertilizer, 110 gallon (With recessed cap threads)

1шт.

2

1345173C1

PLUG

CAP ASSEMBLY - tank

1шт.

3

141044C1

SADDLE

- tank (Used with 1345311C1 tank)

1шт.

3

1339484C1

SUPPORT

SADDLE - tank (Used with 1345312C1 tank)

1шт.

4

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

5

1254377C1

FITTING

- nylon, 4 piece, special

2шт.

6

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, special

2шт.

8

147419C1

BRACKET

- mounting

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.

11

141151C2

CAP ASSY.

COVER - fertilizer tank (Used with 145080C1 and 145079C1)

1шт.

15

90586C2

FUNNEL

FRAME - tank (4 row)

1шт.

15

141162C2

FUNNEL

FRAME - tank (6 row narrow)

1шт.

15

1254382C2

FUNNEL

FRAME - tank (6 row wide)

1шт.

15

141313C2

FRAME

- tank, left (8 row narrow)

1шт.

15

141314C2

FRAME

- tank, right (8 row narrow)

1шт.

15

141031C2

FRAME

- tank, left (8 row wide)

1шт.

15

141032C2

FRAME

- tank, right (8 row wide)

1шт.

15

141087C2

FUNNEL

FRAME - tank, 70-1/2 inch long (12 row narrow)

1шт.

15

141105C2

FUNNEL

FRAME - tank, 57-1/2 inch long (12 row narrow)

1шт.

16

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

17

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

18

147417C1

SUPPORT

BRACKET - support, left-hand

1шт.

19

147418C1

SUPPORT

BRACKET - support, right-hand

1шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

21

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

22

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - headed, 3/8 x 1-1/4 inch, grade 2

1шт.

23

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

24

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch, grade 2

1шт.

25

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

28

141096C1

BAR

PLATE - support, left-hand (4 row and, 6 and 12 row narrow)

1шт.

29

141047C1

SUPPORT

PLATE - support (8 row)

1шт.

30

141108C1

SUPPORT

PLATE - support, right-hand, 4 row and, 6 and 12 row narrow)

1шт.

31

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

32

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

35

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

36

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

38

1976487C2

SPACER

- 27/32 x 63/64 x 2 inch

1шт.
