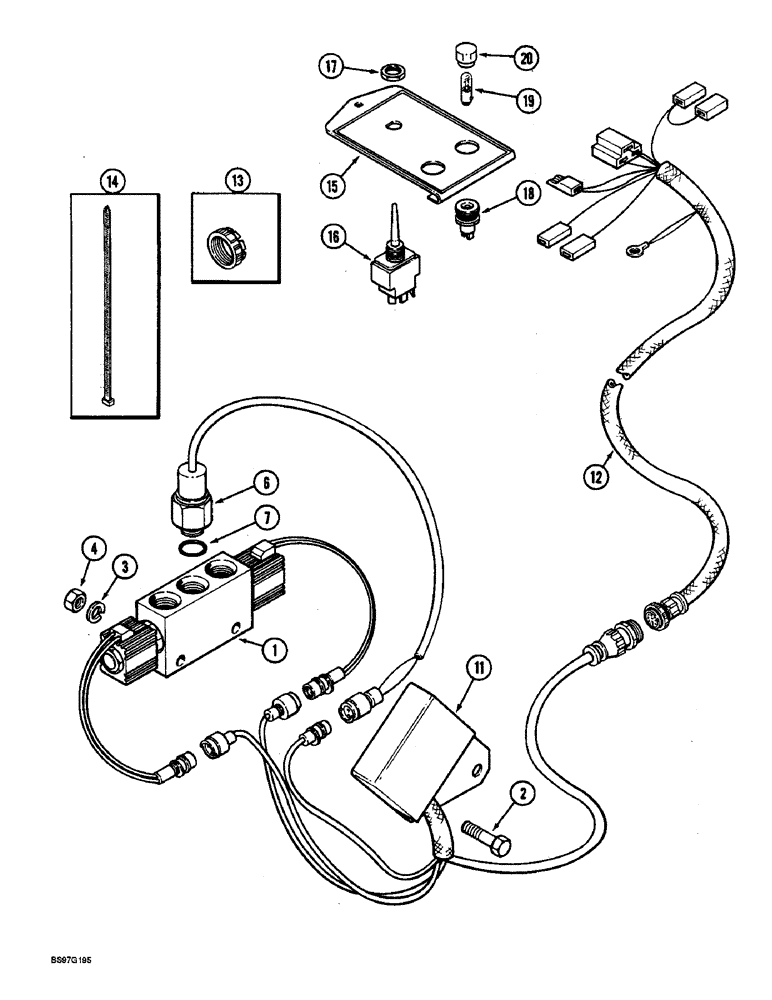

Запчасти Case IH 900 (4-34) - AUTOMATIC SELECTOR VALVE SYSTEM, CYCLO AIR SEMI-MOUNTED, 6 ROW NARROW (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker (See Figure 8-116 for correct valve)

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

If used Flg, USR, 3/8"-16

2шт.

6

1547188C1

SWITCH

- pressure, 1900 psi, if used

1шт.

6

1547189C1

SWITCH

- pressure, 1500 psi, if used

1шт.

11

144911C4

CONTROL

- marker

1шт.

Extension harness P/N# 144910c3 can be used between ref# 11 & 12. CAM (db) 5-7-99

1шт.

11

144911C4R

REMAN ELECT CONTROL

900 CASE IH PLANTER, marker (1/87-)

1шт.

11

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

141405C2

HARNESS

- control, at marker switch

1шт.

13

149456C91

SET

KIT - connector ring, set of 10

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

15

149493C1

PLATE

ASSEMBLY - control box (Automatic markers)

1шт.

15a

149483C1

PRODUCT GRAPHIC

DECAL - off, automatic, advance, marker control, automatic (not shown) (See Figure 9-338, item 13)

1шт.

16

1250682C1

SWITCH

ASSEMBLY - marker control (Automatic markers)

1шт.

17

57603C1

NUT

- hex, special

1шт.

18

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator

2шт.

19

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

20

71652C1

LENS

- lamp

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
