Запчасти Case IH 900 (9-274) - HORIZONTAL QUICK-FILL AUGER, CYCLO AIR TRAILING, ALL EXCEPT 6 ROW WIDE PLATE TRAILING: ALL ROW SIZE (09) - CHASSIS/ATTACHMENTS

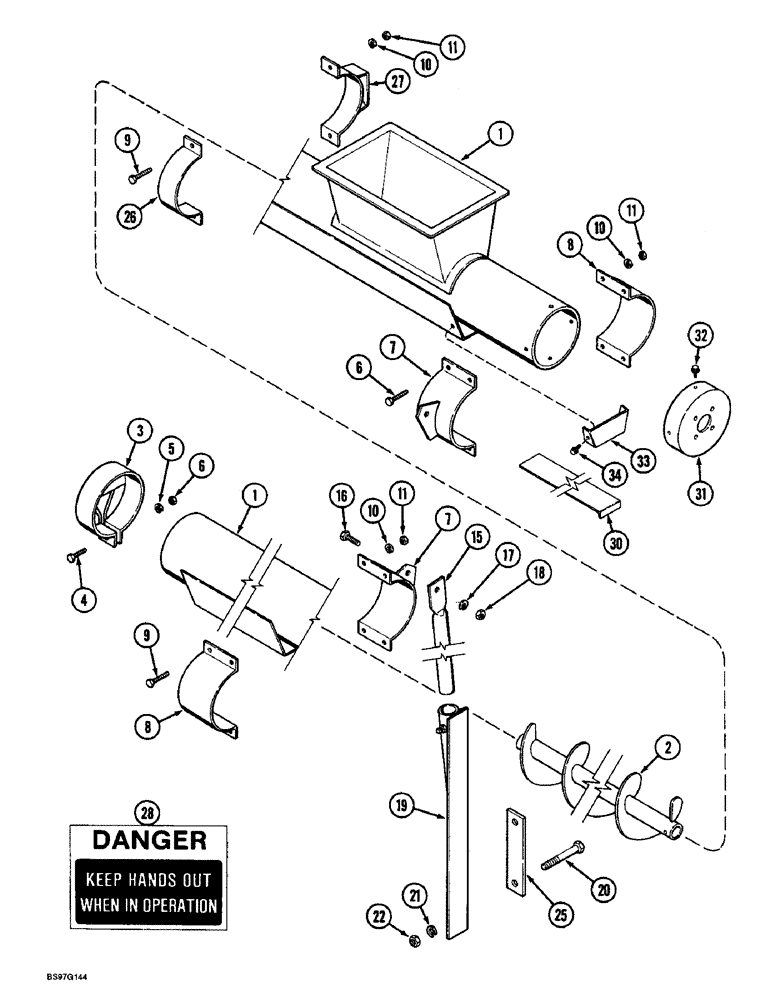

Схема запчастей Case IH 900 - (9-274) - HORIZONTAL QUICK-FILL AUGER, CYCLO AIR TRAILING, ALL EXCEPT 6 ROW WIDE PLATE TRAILING: ALL ROW SIZE (09) - CHASSIS/ATTACHMENTS
19
2
15
33
9
4
11
6
30
5
7
25
7
11
32
26
34
8
10
1
3
28
20
18
31
22
1
11
10
17
6
27
8
10
9
21
16

Артикул

Название

Примечание

Количество

1

1277569C93

ATTACHMENT - fill auger (4 row) (Machinery item)

1шт.

2

1995775C1

AUGER

- fill, 3124 mm (123 inch) long (4 row)

1шт.

1

1277570C93

ATTACHMENT - fill auger (6 row narrow) (Machinery item)

1шт.

2

1995776C1

AUGER

- fill, 3848 mm (151-1/2 inch) long (6 row narrow)

1шт.

1

1277571C93

ATTACHMENT - fill auger (8 row narrow) (Machinery item)

1шт.

2

1995777C1

AUGER

- fill, 5309 mm (209 inch) long (8 row narrow)

1шт.

1

1277572C93

ATTACHMENT - fill auger (8 row wide) (Machinery item)

1шт.

2

1995778C1

AUGER

- fill, 6426 mm (253 inch) long (8 row wide)

1шт.

1

1277573C93

ATTACHMENT - fill auger (12 row) (Machinery item)

1шт.

2

1995779C1

AUGER

- fill, 8420 mm (331-1/2 inch) long (12 row)

1шт.

3

1279310C1

BAND

BRACKET - auger safety

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

1279298C1

BAND

BRACKET - auger

1шт.

8

1279299C1

BAND

BRACKET - auger

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

15

1279300C1

TUBE,1.315" OD, 23" Length

- auger support

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

1279305C1

BRACKET

- auger support tube

1шт.

20

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

25

1279307C1

STRAP

BRACKET - support

1шт.

26

1279296C1

BAND

BRACKET - auger

2шт.

27

1279297C1

BAND

BRACKET - auger

2шт.

28

1960311C1

DECAL

- danger, hands out (See Page 9-337)

2шт.

30

1995774C1

STRAP

- chemical shutoff, 794 mm (31-1/4 inch) long (4 row)

2шт.

30

1995774C1

STRAP

- chemical shutoff, 794 mm (31-1/4 inch) long (8 row)

4шт.

30

1995902C1

STRAP

- chemical shutoff, 1149 mm (45-1/4 inch) long (6 row)

2шт.

30

1995902C1

STRAP

- chemical shutoff, 1149 mm (45-1/4 inch) long (12 row)

4шт.

31

1995772C1

MOUNTING PARTS

CASTING - motor mount

1шт.

32

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

SCREW - self-tapping, hex washer head, 5/16-12 x 1/2 inch

4шт.

33

1995903C1

SHIELD

- endcap (4 and 6 row)

2шт.

33

1995903C1

SHIELD

- endcap (8 and 12 row)

4шт.

34

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch, hex head,(4 and 6 row)

4шт.

34

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch, hex head,(8 and 12 row)

8шт.

Выбрано товаров: 41
