Запчасти Case IH 900 (9-272) - DRY FERTILIZER HOPPER AUGERS, CYCLO AIR AND PLATE TRAILING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS

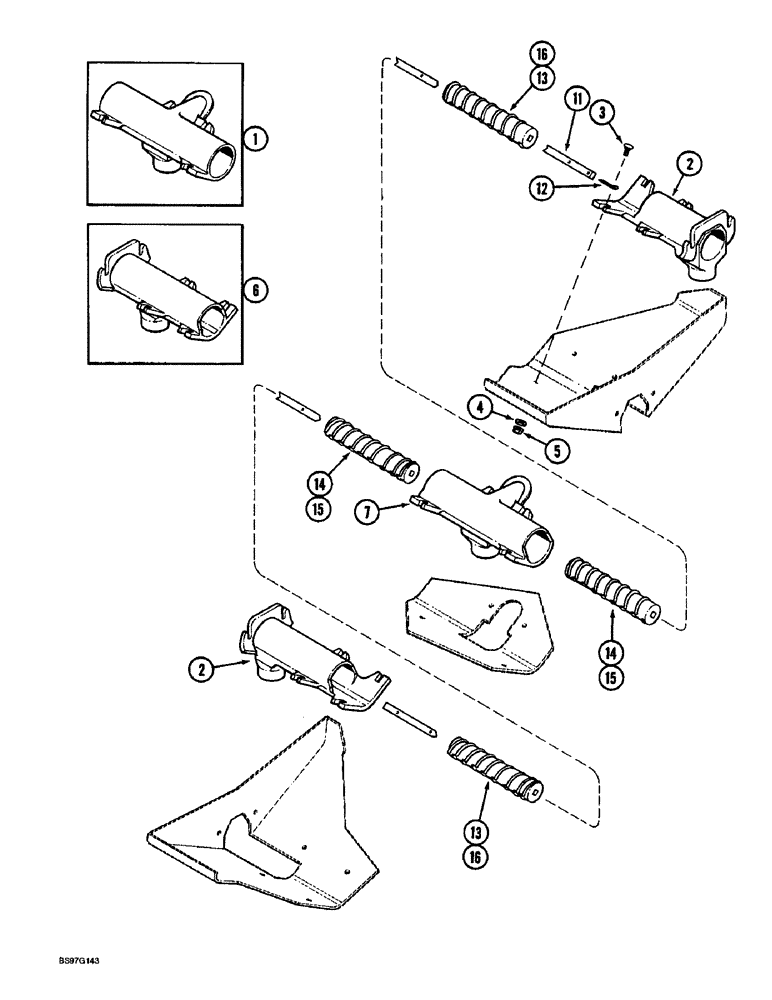

Схема запчастей Case IH 900 - (9-272) - DRY FERTILIZER HOPPER AUGERS, CYCLO AIR AND PLATE TRAILING, ALL ROW SIZES (09) - CHASSIS/ATTACHMENTS
2
14
13
5
12
16
6
7
13
11
3
15
16
2
4
1
15
14

Артикул

Название

Примечание

Количество

1

141037C1

HOUSING

- auger, center (6 and 12 row)

1шт.

2

149197C1

HOUSING

- auger, end (4, 6 and 8 row)

2шт.

2

149197C1

HOUSING

- auger, end (4, 6 and 8 row)

1шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

3

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

1шт.

4

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

6

137075C1

HOUSING

- auger, end (4 row wide and 8 row)

1шт.

7

1264400C1

HOUSING

- auger, center special (4 and 8 row narrow)

1шт.

11

141055C3

SHAFT

- auger (4 and 8 row), 1136mm (44.72") long

1шт.

11

1261164C1

BAR

SHAFT - auger (6 row)

1шт.

11

141079C1

BAR

SHAFT - auger (12 row), 1592mm (62.676") long

1шт.

12

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

13

472420R1

AUGER

- low rate, left-hand

1шт.

13

472421R1

AUGER

- low rate, right-hand

1шт.

13

472424R1

AUGER

- high rate, left-hand

1шт.

13

472425R1

AUGER

- high rate, right-hand

1шт.

13

483533R1

AUGER

- extra high rate, left-hand

1шт.

13

483534R1

AUGER

- extra high rate, right-hand

1шт.

14

480151R1

AUGER

- low rate, left-hand, inner

1шт.

14

480152R1

AUGER

- low rate, right-hand, inner (Shown)

1шт.

15

480106R1

AUGER

- high rate, left-hand, inner

1шт.

15

480107R1

AUGER

- high rate, right-hand, inner (Shown)

1шт.

16

487033R1

AUGER

- extra high rate, left-hand, inner

1шт.

16

487032R1

AUGER

- extra high rate, right-hand, inner (Shown)

1шт.

Выбрано товаров: 25
