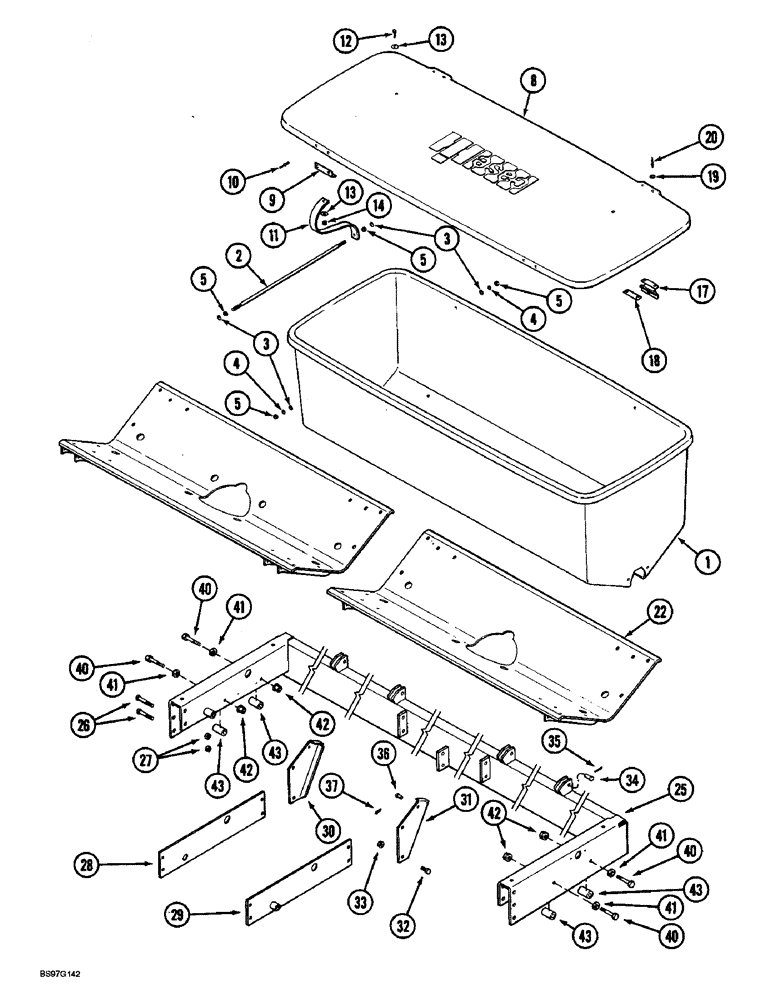

Запчасти Case IH 900 (9-270) - DRY FERTILIZER HOPPER, CYCLO AIR TRAILING, 12 ROW NARROW & 6 ROW PLATE TRAILING 6 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

140952C1

HOPPER

- three outlet, dry fertilizer, dry

1шт.

2

137171C2

STEM

ROD - hopper spacer

3шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

6шт.

4

492-11038

LOCK WASHER,3/8"

6шт.

5

425-106

NUT,3/8"-16, Cl 5

6шт.

8

140954C3

COVER

ASSEMBLY - hopper

1шт.

9

137169C1

SUPPORT

- cover

2шт.

10

151-539

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 7/16 inch

4шт.

11

137170C1

STRAP

- hopper cover

3шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

3шт.

13

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

3шт.

14

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

1264399C91

PACKAGE

KIT - latch, hopper

1шт.

17

NSS

NOT SOLD SEPARAT

LATCH - hopper

8шт.

18

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

8шт.

19

NSS

NOT SOLD SEPARAT

WASHER - plate

16шт.

20

NSS

NOT SOLD SEPARAT

RIVET - latch retaining

16шт.

21

1279583C2

SADDLE

- hopper, left-hand (6 row wide)

1шт.

21

1279871C2

SADDLE

- hopper, right-hand (6 row wide)(Shown)

1шт.

22

1339484C1

SUPPORT

SADDLE - hopper (6 and 12 row narrow)

1шт.

25

141162C2

FUNNEL

FRAME - hopper (6 row narrow)

1шт.

25

1254382C2

FUNNEL

FRAME - hopper (6 row wide)

1шт.

25

141087C2

FUNNEL

FRAME - hopper, 70-1/2 inch long (12 row narrow)

1шт.

25

141105C2

FUNNEL

FRAME - hopper, 57-1/2 inch long (12 row narrow)

1шт.

26

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

26

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

27

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

28

141096C1

BAR

PLATE - support, left-hand (6 and 12 row narrow)

1шт.

29

141108C1

SUPPORT

PLATE - support, right-hand (6 and 12 row narrow)

1шт.

30

147417C1

SUPPORT

BRACKET - support, left-hand

1шт.

31

147418C1

SUPPORT

BRACKET - support, right-hand

1шт.

32

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

33

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

34

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - headed, 3/8 x 1-1/4 inch, grade 2

1шт.

35

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

36

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch, grade 2

1шт.

37

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

40

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

41

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

43

1976487C2

SPACER

- 27/32 x 63/64 x 2 inch

1шт.
