Запчасти Case IH 900 (9-268) - DRY FERTILIZER HOPPER, CYCLO AIR TRAILING, 4 & 8 ROW PLATE TRAILING, 8 ROW NARROW & 4 ROW (09) - CHASSIS/ATTACHMENTS

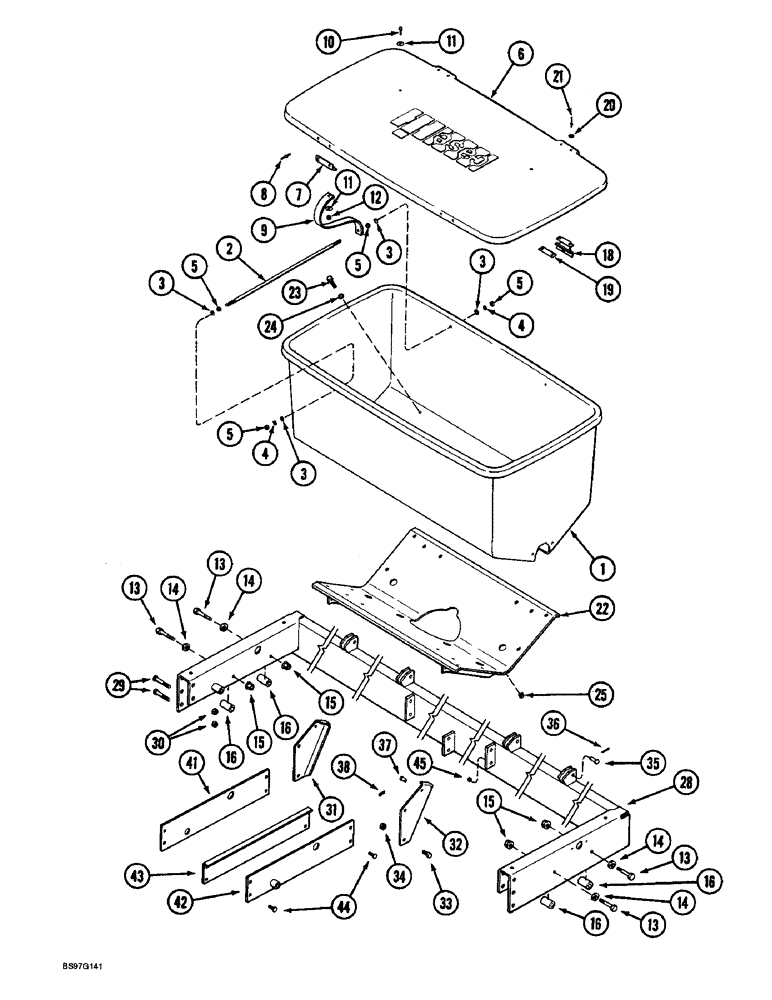

Схема запчастей Case IH 900 - (9-268) - DRY FERTILIZER HOPPER, CYCLO AIR TRAILING, 4 & 8 ROW PLATE TRAILING, 8 ROW NARROW & 4 ROW (09) - CHASSIS/ATTACHMENTS
37
41
13
8
33
9
22
16
13
15
3
34
5
12
6
38
32
14
21
24
5
4
14
28
14
1
15
5
30
3
11
19
11
13
15
43
16
20
35
3
4
14
13
16
10
2
44
29
36
25
16
42
45
18
31
5
3
7
23

Артикул

Название

Примечание

Количество

1

137086C1

HOPPER

- two outlet, dry fertilizer (Without slotted outlet)

1шт.

1

141135C1

HOPPER

- two outlet, dry fertilizer (With slotted outlet)

1шт.

2

137171C2

STEM

ROD - hopper spacer

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

137514C3

COVER

ASSEMBLY - hopper

1шт.

7

137169C1

SUPPORT

- cover

2шт.

8

151-539

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 7/16 inch

4шт.

9

137170C1

STRAP

- hopper cover

2шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

11

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

2шт.

12

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

13

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

16

1976487C2

SPACER

- 27/32 x 63/64 x 2 inch

1шт.

1264399C91

PACKAGE

KIT - latch

1шт.

18

NSS

NOT SOLD SEPARAT

LATCH - hopper

8шт.

19

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

8шт.

20

NSS

NOT SOLD SEPARAT

WASHER - plate

16шт.

21

NSS

NOT SOLD SEPARAT

RIVET - latch retaining

16шт.

22

141044C1

SADDLE

- hopper

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

25

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

28

90586C2

FUNNEL

FRAME - hopper (4 row)

1шт.

28

141313C2

FRAME

- hopper, left-hand (8 row narrow)

1шт.

28

141314C2

FRAME

- hopper, right-hand (8 row narrow)

1шт.

28

141031C2

FRAME

- hopper, left-hand (8 row wide)

1шт.

28

141032C2

FRAME

- hopper, right-hand (8 row wide)

1шт.

29

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

29

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

30

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

31

147417C1

SUPPORT

BRACKET - support, left-hand

1шт.

32

147418C1

SUPPORT

BRACKET - support, right-hand

1шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

34

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

35

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - headed, 3/8 x 1-1/4 inch, grade 2

1шт.

36

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

37

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch, grade 2

1шт.

38

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

41

141096C1

BAR

PLATE - support, left-hand

1шт.

42

141108C1

SUPPORT

PLATE - support, right-hand

1шт.

43

141047C1

SUPPORT

PLATE - support

1шт.

44

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

45

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

Выбрано товаров: 47
