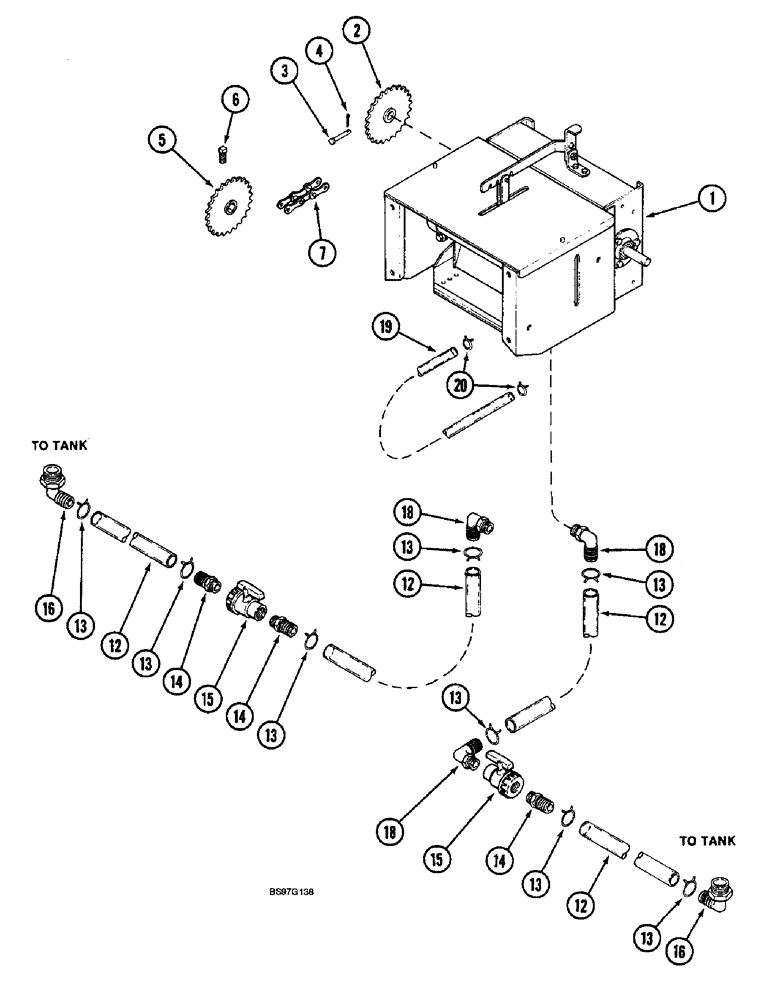

Запчасти Case IH 900 (9-260) - LIQUID FERTILIZER SQUEEZE PUMP SYSTEM & SECONDARY DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PUMP ASSEMBLY - squeeze (See Page 9-265)

1шт.

2

1250746C1

SPROCKET

- drive, 24 teeth

1шт.

2

1254149C1

SPROCKET

- drive, 21 teeth

1шт.

2

1254150C1

SPROCKET

- drive, 30 teeth

1шт.

3

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2

2шт.

4

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

5

1254152C2

SPROCKET

- driver, 30 teeth

1шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

7

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - pump drive (Use 99 links from bulk chain 569088R91, plus one connecting link 1277927C91, plus one offset link 457114R91) (See note B)

1шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

1277927C91

LINK

- connecting

1шт.

242-178

LINK,25.4mm Pitch

LINK - offset, double pitch, No. 2040

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - fertilizer (Order 134329C1 and, Serial Range: cut-length)

1шт.

13

214-1320

HOSE CLAMP,#20, 1 1/4", Spring

CLAMP - spring type, 1-1/4 inch

8шт.

14

134270C1

FITTING

- straight

3шт.

15

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

VALVE - shutoff (Replaces 134285C1)

2шт.

16

1261310C1

ELBOW

- 90 degree, special

2шт.

18

134271C1

ELBOW

- 90 degree, 1 stem x 3/4 inch PT

3шт.

19

NSS

NOT SOLD SEPARAT

HOSE - fertilizer (Order 134331C1 and, Serial Range: cut-length)

4шт.

20

214-1313

HOSE CLAMP,#13, 13/16", Spring

CLAMP - spring type, 13/16 inch

1шт.
