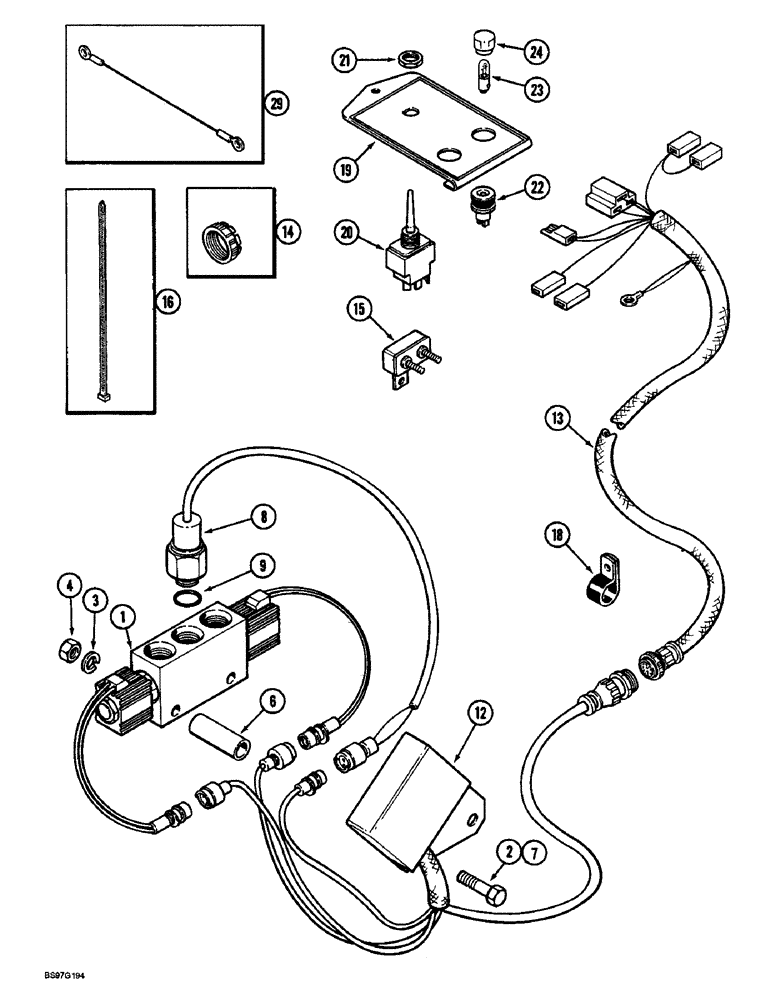

Запчасти Case IH 900 (4-32) - AUTOMATIC SELECTOR VALVE SYSTEM,ALL CYCLO AIR SEMI-MOUNTED EXCEPT 6 ROW NARROW (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker, all cyclo air semi-mounted except 6 row narrow, all cyclo air vertical folding, plate vertical folding-12 row narrow (See Figure 8-116 for correct valve)

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

6

1250695C2

SPACER

- valve mounting

2шт.

7

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

Used with spacer, item 6 Hex, 3/8"-16 x 5", G5

2шт.

8

1547188C1

SWITCH

- pressure, 1900 psi, if used

1шт.

8

1547189C1

SWITCH

- pressure, 1500 psi, if used

1шт.

12

144911C4

CONTROL

- marker

1шт.

Extension harness P/N# 144910c3 can be used between ref# 11 & 12. CAM (db) 5-7-99

1шт.

12

144911C4R

REMAN ELECT CONTROL

900 CASE IH PLANTER, marker (1/87-)

1шт.

12

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

13

141405C2

HARNESS

- control, at marker switch

1шт.

14

149456C91

SET

KIT - connector ring, set of 10

1шт.

15

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

18

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

19

149493C1

PLATE

ASSEMBLY - control box (Automatic markers), Includes: Ref. 19A

1шт.

19a

149483C1

PRODUCT GRAPHIC

DECAL - off, automatic, advance, marker control, automatic (not shown) (See Figure 9-338, item 13)

1шт.

20

1250682C1

SWITCH

ASSEMBLY - marker control (Automatic markers), Includes: Ref. 21

1шт.

21

57603C1

NUT

- hex, special

1шт.

22

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator, Includes: Ref. 23 & 24

2шт.

23

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

24

71652C1

LENS

- lamp

1шт.

29

117620C1

CABLE

WIRE - 152 mm (6 inch) long

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
