Запчасти Case IH 900 (9-249A) - LIQUID FERTILIZER DRIVE, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

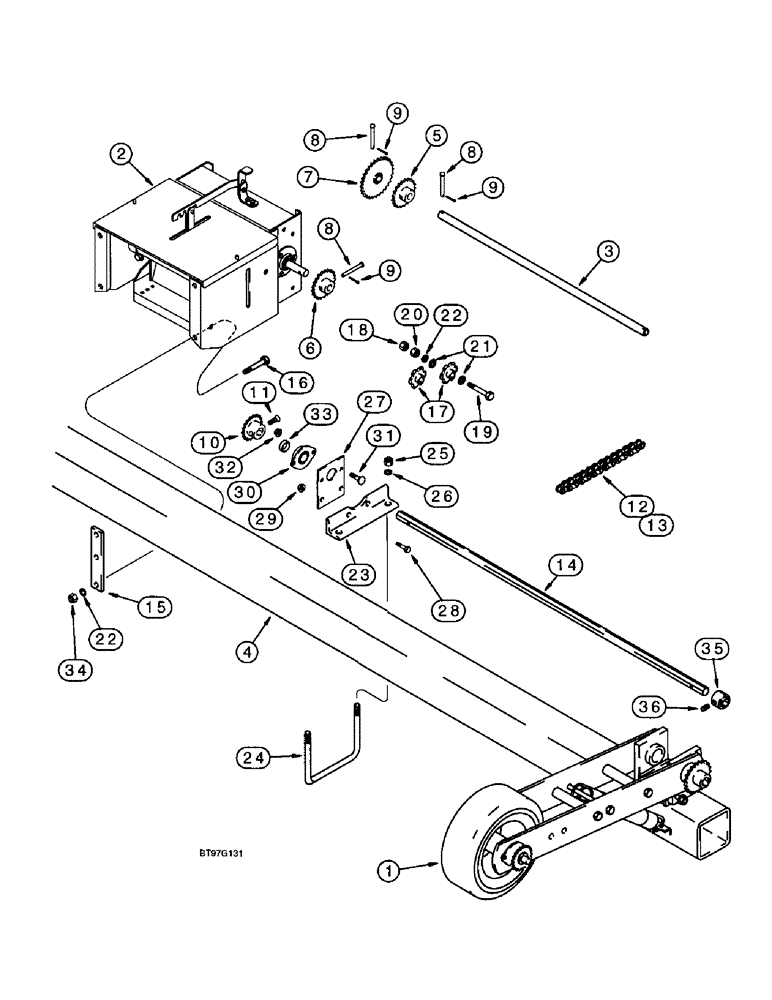

Схема запчастей Case IH 900 - (9-249A) - LIQUID FERTILIZER DRIVE, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS
5
10
4
31
26
36
3
20
19
14
27
8
30
22
9
2
7
11
8
8
17
34
21
9
28
23
24
12
9
22
35
13
33
18
25
1
6
32
29
15
16

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

WHEEL ASSEMBLY - drive traction, not serviced separately, see page 9-249D for component parts

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - squeeze, see pages 9-265 and 9-267 for correct assembly and parts list

1-2шт.

3

111405A1

COUPLING

- 40-3/16 inch (1020 mm) long, 12 row narrow

1шт.

4

109586A1

FRAME ASSY

FRAME - liquid fertilizer cart

1шт.

5

1254149C1

SPROCKET

- drive, 21 teeth

1шт.

6

1250746C1

SPROCKET

- drive, 24 teeth

1шт.

7

1254150C1

SPROCKET

- drive, 30 teeth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - headed, 1/4 x 1-7/8 inch, grade 2, two used with item 3

4-6шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , 2 used with item 3 1/8" x 3/4"

4-6шт.

10

110997A1

SPROCKET ASSY.

SPROCKET - 18 teeth

1шт.

11

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

12

111156A1

CHAIN (AG)

CHAIN - roller, No. 2040, use 47 links from 569088R91 bulk chain, plus (1) 242-138 connecting link, use one 242-138 connecting link, item 13, and 47 links from 569088R91 bulk chain, see below

1шт.

13

242-138

LINK,7.92mm Pitch

LINK - connecting, No. 2040, 1 inch pitch, pump drive chain

1шт.

14

96086C2

SHAFT

- drive, hex, 22 (7/8) x 1210 mm (47-5/8 inch) long, liquid fertilizer primary input

1шт.

15

1261296C2

PLATE

BRACKET - retaining

4шт.

16

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

8шт.

17

472344R3

SPROCKET

- idler

2шт.

18

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

19

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

137482C3

ANGLE

- bearing

1шт.

24

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- 5/8 inch NC, 5 x 5 inch

1шт.

25

425-1010

NUT,5/8"-11, G5

2шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

1254171C1

PLATE

- bearing support

1шт.

28

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

30

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch, flanged

1шт.

31

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

33

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm, if used

1шт.

34

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC, self-locking

8шт.

35

141572C2

COLLAR

HUB - sprocket, input bar

2шт.

36

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

4шт.

569088R91

CHAIN (AG)

CHAIN - bulk, No. 2040, 10 foot roll

1шт.

Выбрано товаров: 37
