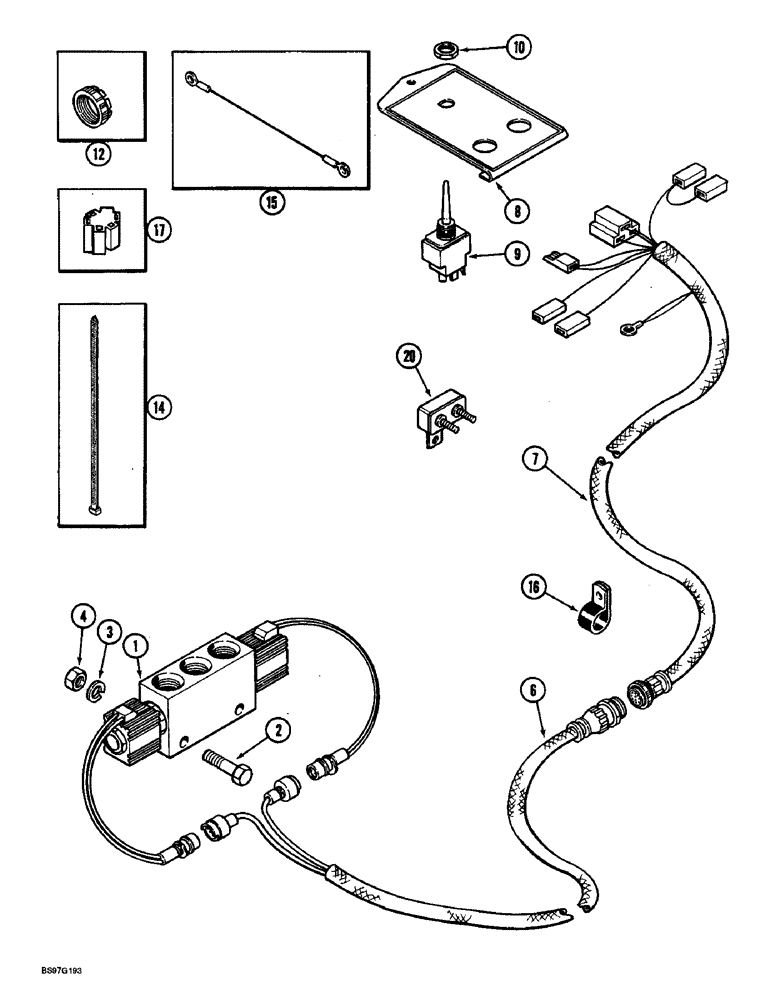

Запчасти Case IH 900 (4-30) - MANUAL SELECTOR VALVE SYSTEM, CYCLO AIR AND PLATE TRAILING, 6 ROW NARROW AND 4 ROW (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker, cyclo air and plate trailing-6 row narrow and 4 row, cyclo air semi-mounted-6 row narrow (See Figure 8-116 for correct valve)

1шт.

2

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

6

145121C1

HARNESS

- control (Trailing)

1шт.

6

1279552C1

HARNESS

- control (Semimounted)

1шт.

7

141405C2

HARNESS

- control

1шт.

8

147230C1

PLATE

ASSEMBLY - control box (Mechanical markers), Includes: Ref. 8A

1шт.

8a

147218C1

DECAL,Control Right Off Left

- right, off, left, marker control, mechanical (not shown) (See Figure 9-338, item 14)

1шт.

9

121542C1

SWITCH

ASSEMBLY - marker (Mechanical markers), Includes: Ref. 10

1шт.

10

57603C1

NUT

- hex, special

1шт.

12

149456C91

SET

KIT - connector ring, set of 10

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

15

117620C1

CABLE

WIRE - 152 mm (6 inch) long

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

17

491058C1

CONTACT HOUSING,Female, Pole

ADAPTER - harness

1шт.

20

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

17a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Not shown

1шт.
