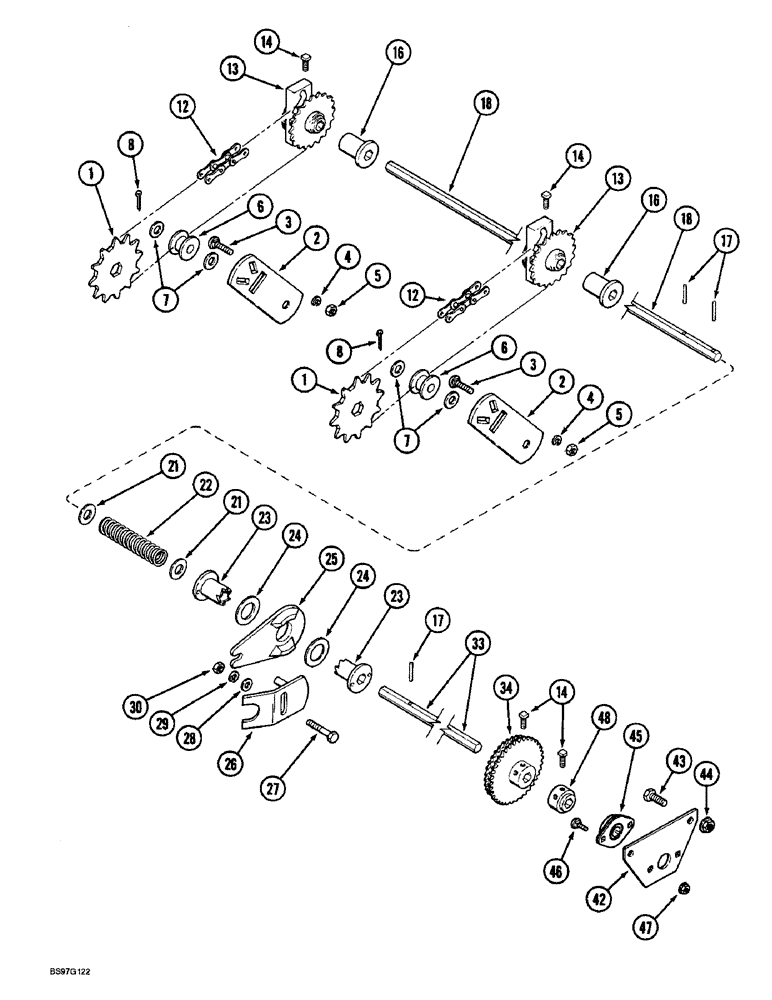

Запчасти Case IH 900 (9-232) - PRIMARY FERTILIZER DRIVE, DRY, CYCLO AIR TRAILING, 6 ROW WIDE & 8 ROW PRIOR TO P. I. N. JJC0020040 (09) - CHASSIS/ATTACHMENTS

1

1277737C1

SPROCKET

- wheel, 12 teeth

2шт.

2

96140C3

PLATE

- drive wheel idler

2шт.

3

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1277726C1

ROLLER,48mm OD x 34mm L

- idler

2шт.

7

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

8

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - wheel drive (See Note)

2шт.

13

REF

INSTRUCTION

SPROCKET - left drive ratchet (See Page 9-205)

2шт.

14

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

4шт.

16

90335C2

BUSHING

- drive shaft

2шт.

17

19795R1

PIN,1/4" x 1 3/4", Coiled

4шт.

18

96092C1

BAR

SHAFT - drive, hex, 22 (7/8) x 1360 mm (53-35/64 inch) long (6 row wide)

1шт.

18

96047C1

BAR

SHAFT - drive, hex, 22 (7/8) x 1914 mm (75-23/64 inch) long (8 row narrow)

1шт.

18

90843C1

BAR

SHAFT - drive, hex, 22 (7/8) x 2320 mm (91-11/32 inch) long (8 row wide)

1шт.

21

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2шт.

22

1264302C1

SPRING

- clutch

1шт.

23

1264313C1

CLUTCH

- drive and driven, left-hand

2шт.

24

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

2шт.

25

90344C1

PLATE

- clutch throwout

1шт.

26

91245C1

SUPPORT

THROWOUT - clutch

1шт.

27

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

28

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

425-1010

NUT,5/8"-11, G5

1шт.

33

90841C1

SHAFT

- drive, hex, 22 (7/8) x 700 mm (27-9/16 inch) long (6 and 8 row wide)

1шт.

33

96046C1

SHAFT

- drive, hex, 22 (7/8) x 1100 mm (43-5/16 inch) long (8 row narrow)

1шт.

34

141063C2

SPROCKET

- triple, 20, 34 and 36 teeth, fertilizer drive

1шт.

42

141173C1

SUPPORT

PLATE - bearing support

1шт.

43

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

44

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

45

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

2шт.

46

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

48

141572C2

COLLAR

HUB - sprocket

1шт.
