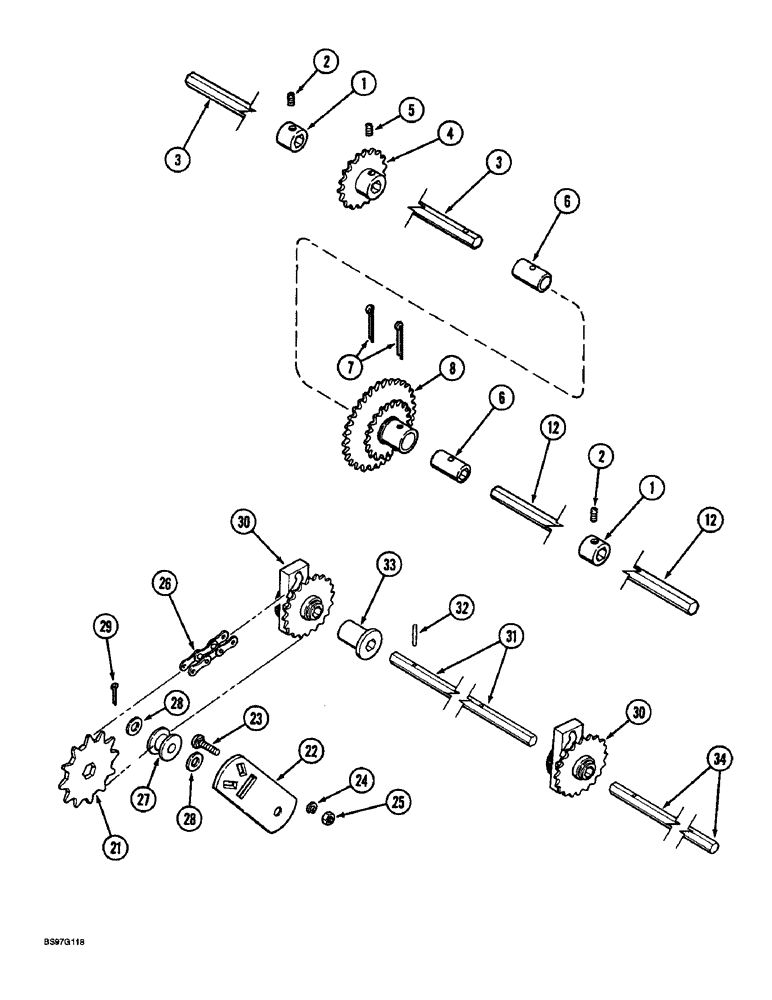

Запчасти Case IH 900 (9-224[1]) - DRIVE FOR AUXILIARY DRIVE WHEELS CYCLO AIR AND PLATE TRAILING, 6 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

147338C1

SPACER

- collar, locking

6шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

6шт.

3

1279459C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2135 mm (84-1/16 inch) long (Outer shaft left-hand and outer shaft right-hand)(12 row narrow)(Replaces 1268161C1)

2шт.

3

137215C1

BAR

SHAFT - drive, hex, 16 (5/8) x 3792 mm (149-19/64 inch) long (Outer shaft left-hand)(12 row wide)

1шт.

3

137214C1

BAR

SHAFT - drive, hex, 16 (5/8) x 3361 mm (132-11/32 inch) long, hex (Outer shaft right-hand)(12 row wide)

1шт.

3

1279455C1

SHAFT

- drive, hex, 16 (5/8) x 3665 mm (144-19/64 inch) long (Outer shaft left-hand)(16 row narrow)

1шт.

3

1279456C1

SHAFT

- drive, hex, 16 (5/8) x 3240 mm (127-35/64 inch) long (Outer shaft right-hand)(16 row narrow)

1шт.

4

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth

2шт.

5

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

2шт.

6

137204C2

SPACER

BUSHING - shear pin

4шт.

7

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

4шт.

8

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output

2шт.

12

134151C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long (Inner shaft left-hand and inner shaft right-hand)(12 row narrow)

1шт.

12

134151C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long (Inner shaft left-hand)(12 row wide)

1шт.

12

1279459C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2135 mm (84-1/16 inch) long, hex, (Inner shaft right-hand)(12 row wide) (Replaces 1268161C1)

1шт.

12

1279466C1

SHAFT

- drive, hex, 16 mm (5/8) x 1255 mm (49-13-32) long (Inner shaft left-hand)(16 row narrow)

1шт.

12

134151C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long (Inner shaft right-hand)(16 row narrow)

1шт.

21

1277737C1

SPROCKET

- wheel, 12 teeth

1шт.

22

96140C3

PLATE

- drive wheel idler

1шт.

23

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (Use 55 links from bulk chain 569089R91, and 1 connecting link 1277928C91)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long

1шт.

1277928C91

LINK

- chain connecting

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

28

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

2шт.

29

432-1216

COTTER PIN,3/16" x 1"

1шт.

30

REF

INSTRUCTION

SPROCKET ASSEMBLY - left-hand drive ratchet (See Page 9-205)

2шт.

31

90558C1

BAR

SHAFT - drive, hex, 22 (7/8) x 1152 mm (45-23/64 inch) long

1шт.

32

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

33

90335C2

BUSHING

- drive shaft

1шт.

34

90561C1

SHAFT

- drive, hex, 22 (7/8) x 600 mm (23-5/8 inch) long, output

1шт.
