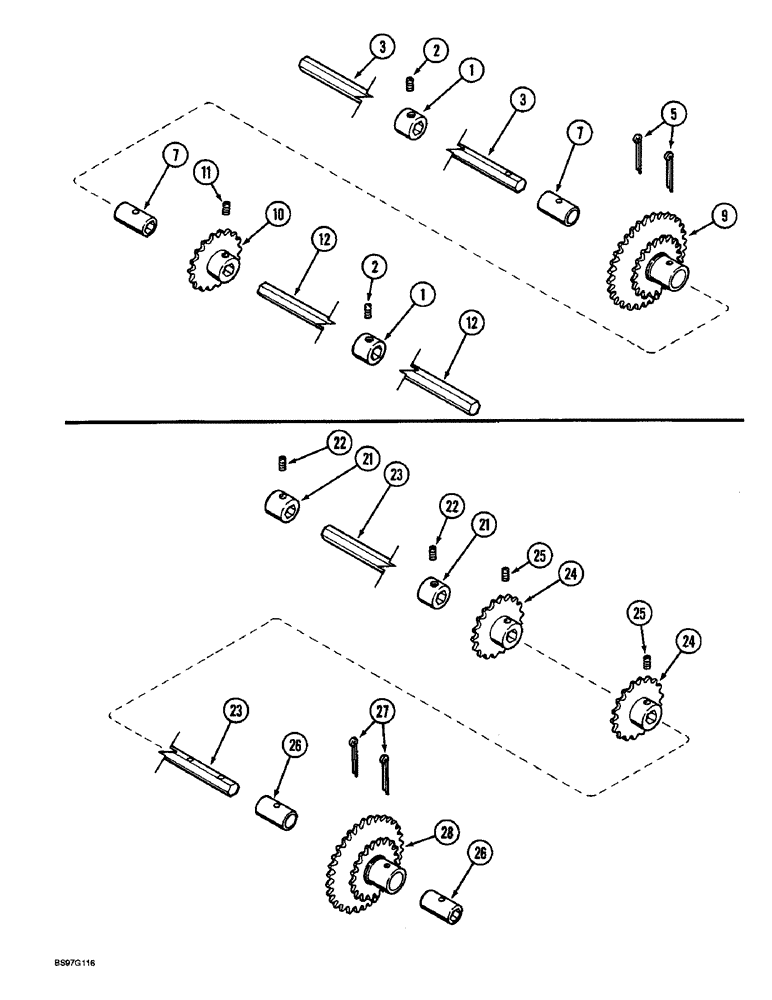

Запчасти Case IH 900 (9-220) - SECONDARY SEED DRIVE, CYCLO AIR SEMI-MOUNTED, 6 ROW WIDE (09) - CHASSIS/ATTACHMENTS

1

147338C1

SPACER

- collar, locking

2шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

3

137212C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2781 mm (109-31/64 inch) long, left-hand

1шт.

7

137204C2

SPACER

BUSHING - shear pin

2шт.

8

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

9

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output

1шт.

10

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth

1шт.

11

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

1шт.

12

137210C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2354 mm (92-11/16 inch) long, right-hand

1шт.

21

147338C1

SPACER

- collar, locking, secondary seed drive - cyclo air semi-mounted corn/soybean special

2шт.

22

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, secondary seed drive - cyclo air semi-mounted corn/soybean special

2шт.

23

1250924C2

BAR

SHAFT - drive, hex, 16 (5/8) x 6320 mm (248-13/16 inch) long, secondary seed drive - cyclo air semi-mounted corn/soybean special

1шт.

24

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth, secondary seed drive - cyclo air semi-mounted corn/soybean special

2шт.

25

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point, secondary seed drive - cyclo air semi-mounted corn/soybean special

2шт.

26

137204C2

SPACER

BUSHING - shear pin, secondary seed drive - cyclo air semi-mounted corn/soybean special

2шт.

27

432-1240

COTTER PIN,3/16" x 2 1/2"

secondary seed drive - cyclo air semi-mounted corn/soybean special 3/16" x 2 1/2"

2шт.

28

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output, secondary seed drive - cyclo air semi-mounted corn/soybean special

1шт.
