Запчасти Case IH 900 (4-28) - MARKER CONTROL BOX, ALL CYCLO AIR PLANTERS EXCEPT HORIZONTAL FOLDING, ALL PLATE PLANTERS (04) - ELECTRICAL SYSTEMS

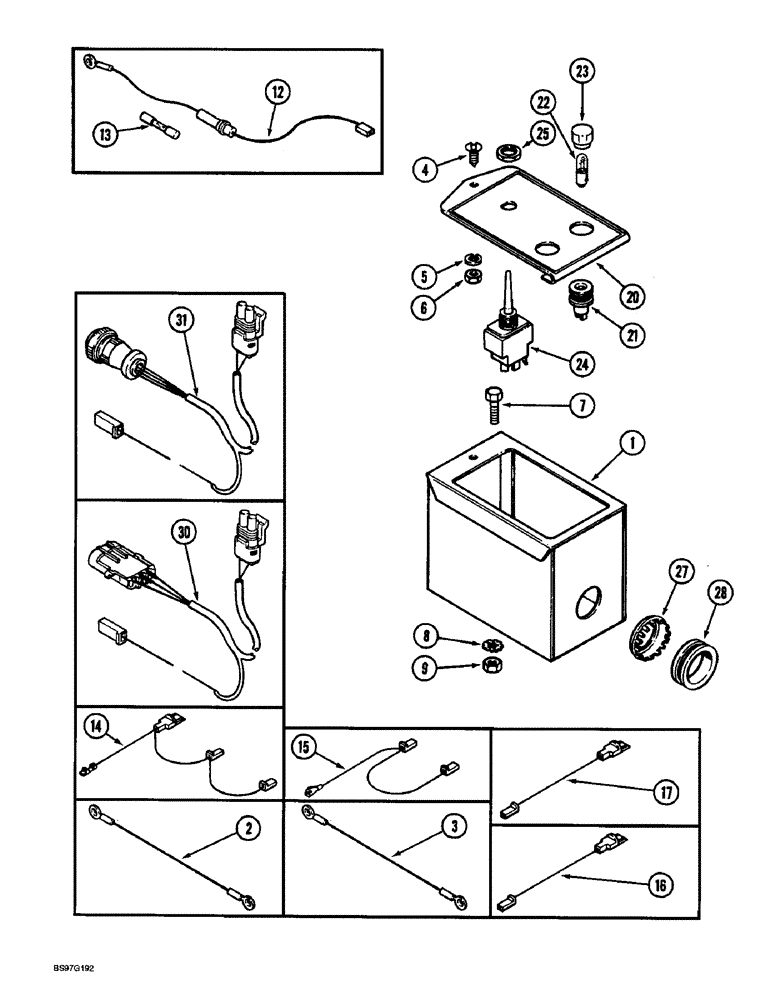

Схема запчастей Case IH 900 - (4-28) - MARKER CONTROL BOX, ALL CYCLO AIR PLANTERS EXCEPT HORIZONTAL FOLDING, ALL PLATE PLANTERS (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

116259C4

BOX

- control, Shell Only

1шт.

2

111322C1

CABLE

WIRE - black, 8 inch long, 12 gauge

1шт.

3

111323C1

CABLE

WIRE - green, 8 inch long, 16 gauge

1шт.

4

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

1шт.

5

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

225-14210

NUT,#10-32

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

8

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

149506C1

CABLE

WIRE - includes fuse, switch

1шт.

13

223-10

FUSE,10 Amp, Type 3AG

- 10 ampere

1шт.

14

A181760

CABLE

WIRE - connector, cab, 2 wheel drive Case and CASE IH Tractor

1шт.

15

A181753

CABLE

WIRE - connector, cab, 4 wheel drive Case and CASE IH Tractor

1шт.

16

A181761

CABLE

WIRE - marker control, 2030 mm (80 inch) long, 2 wheel drive Case and CASE IH Tractor

1шт.

17

A181758

CABLE

WIRE - marker control, 2540 mm (100 inch) long, 4 wheel drive Case and CASE IH Tractor

1шт.

20

147230C1

PLATE

ASSEMBLY - control box (Mechanical markers)

1шт.

20a

147218C1

DECAL,Control Right Off Left

- right, off, left, marker control, mechanical (not shown) (See Page 9-339, item 14)

1шт.

20

149493C1

PLATE

ASSEMBLY - control box (Automatic markers)

1шт.

20a

149483C1

PRODUCT GRAPHIC

DECAL - off, automatic, advance, marker control, automatic markers (not shown) (See Page 9-339, item 13)

1шт.

20

149492C1

PLATE

ASSEMBLY - marker control (Automatic markers with waterway feature)

1шт.

20a

149482C1

PRODUCT GRAPHIC

DECAL - marker control, marker control, automatic markers with waterway feature (not shown) (See Page 9-339, item 11)

1шт.

21

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator

2шт.

22

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

23

71652C1

LENS

- lamp

1шт.

24

121542C1

SWITCH

ASSEMBLY - marker (Mechanical markers)

1шт.

24

1250682C1

SWITCH

ASSEMBLY - marker control (Automatic markers)

1шт.

25

57603C1

NUT

- hex, special

1шт.

27

1264374C1

PLUG

- control box

1шт.

28

169851C1

GROMMET

- rubber

1шт.

30

1964768C1

HARNESS

- marker adapter (7100 Series Tractors)

1шт.

31

1344888C2

HARNESS

- marker adapter (5100 Series Tractors)

1шт.

Выбрано товаров: 31
