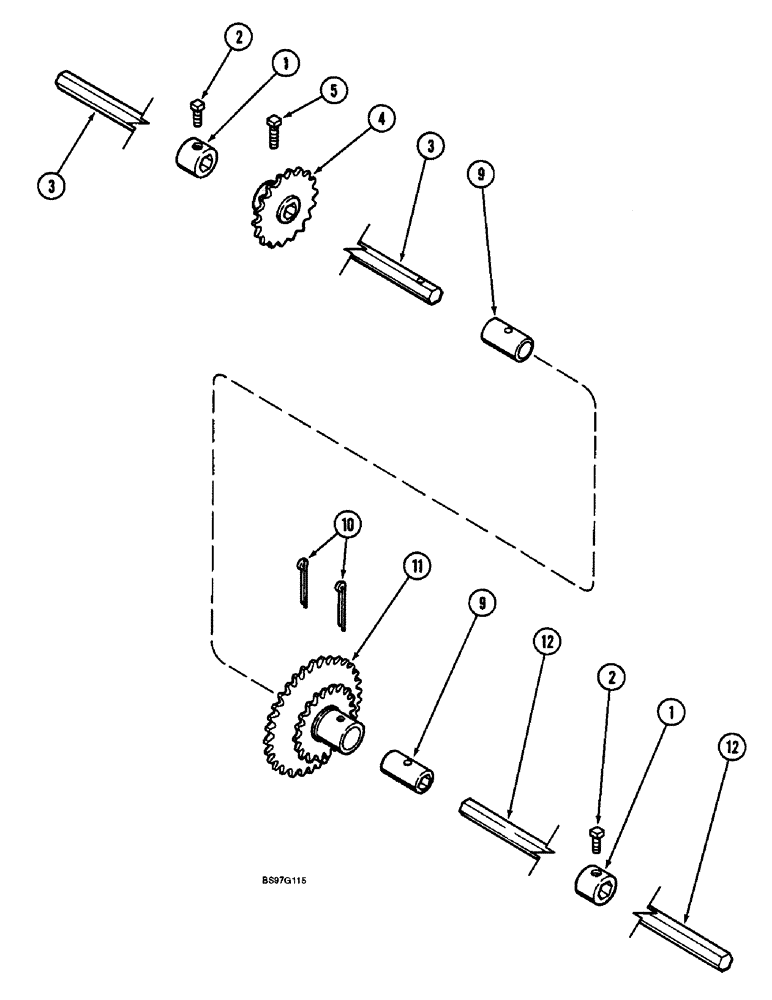

Запчасти Case IH 900 (9-218) - SECONDARY SEED DRIVE, CYCLO AIR SEMI-MOUNTED, 6 & 8 ROW NARROW PLATE MOUNTED, 4,6 & 8 ROW (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
147338C1
SPACER
- collar, locking
2шт.
2
485-1388
SET SCREW,Sq Hd, 3/8"-16 x 1/2"
SCREW - set, square head, 3/8 NC x 1/2 inch, cup point
2шт.
3
134151C1
BAR
SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long, left-hand, (Plate 4 row)(Shown)
1шт.
3
1279459C1
BAR
SHAFT - drive, hex, 16 (5/8) x 2135 mm (84-1/16 inch) long, left-hand, (Plate 6 row narrow)
1шт.
3
137213C1
BAR
SHAFT - drive, hex, 16 (5/8) x 2890 mm (113-49/64 inch) long, left-hand, (Cyclo Air 6 row narrow and Plate 8 row narrow)
1шт.
3
137212C1
BAR
SHAFT - drive, hex, 16 (5/8) x 2781 mm (109-31/64 inch) long, left-hand, (Plate 6 row wide)
1шт.
3
1279455C1
SHAFT
- drive, hex, 16 (5/8) x 3665 mm (144-19/64 inch) long, left-hand, (Cyclo Air 8 row narrow)
1шт.
3
137215C1
BAR
SHAFT - drive, hex, 16 (5/8) x 3792 mm (149-19/64 inch) long, left-hand, (Plate 8 row wide)
1шт.
4
90909C1
SPROCKET ASSY.
SPROCKET - drum drive, 18 teeth (Cyclo Air)
1шт.
5
485-13814
SET SCREW,Sq Hd, 3/8"-16 x 7/8"
SCREW - set, square head, 3/8 NC x 7/8 inch, cup point (Cyclo Air)
1шт.
9
137204C2
SPACER
BUSHING - shear pin
2шт.
10
432-1240
COTTER PIN,3/16" x 2 1/2"
3/16" x 2 1/2"
2шт.
11
90906C2
DRIVE SPROCKET
SPROCKET - 20 and 34 teeth, final output
1шт.
12
1250826C1
BAR
SHAFT - drive, hex, 16 (5/8) x 1370 mm (53-15/16 inch) long, right-hand, (Plate 4 row)(Shown)
1шт.
12
134151C1
BAR
SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long, right-hand, (Cyclo Air 8 row narrow and Plate 6 row narrow)
1шт.
12
141452C1
BAR
SHAFT - drive, hex, 16 (5/8) x 952 mm (37-31/64 inch) long, right-hand, (Cyclo Air 6 row narrow)
1шт.
12
137210C1
BAR
SHAFT - drive, hex, 16 (5/8) x 2354 mm (92-11/16 inch) long, right-hand, (Plate 6 row wide)
1шт.
12
137211C1
BAR
SHAFT - drive, hex, 16 (5/8) x 2460 mm (96-27/32 inch) long, right-hand, (Plate 8 row narrow)
1шт.
12
137214C1
BAR
SHAFT - drive, hex, 16 (5/8) x 3361 mm (132-11/32 inch) long, right-hand, (Plate 8 row wide)
1шт.
Выбрано товаров: 19
