Запчасти Case IH 900 (9-216) - SECONDARY SEED DRIVE, CYCLO AIR TRAILING, 8 ROW, PLATE TRAILING, 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS

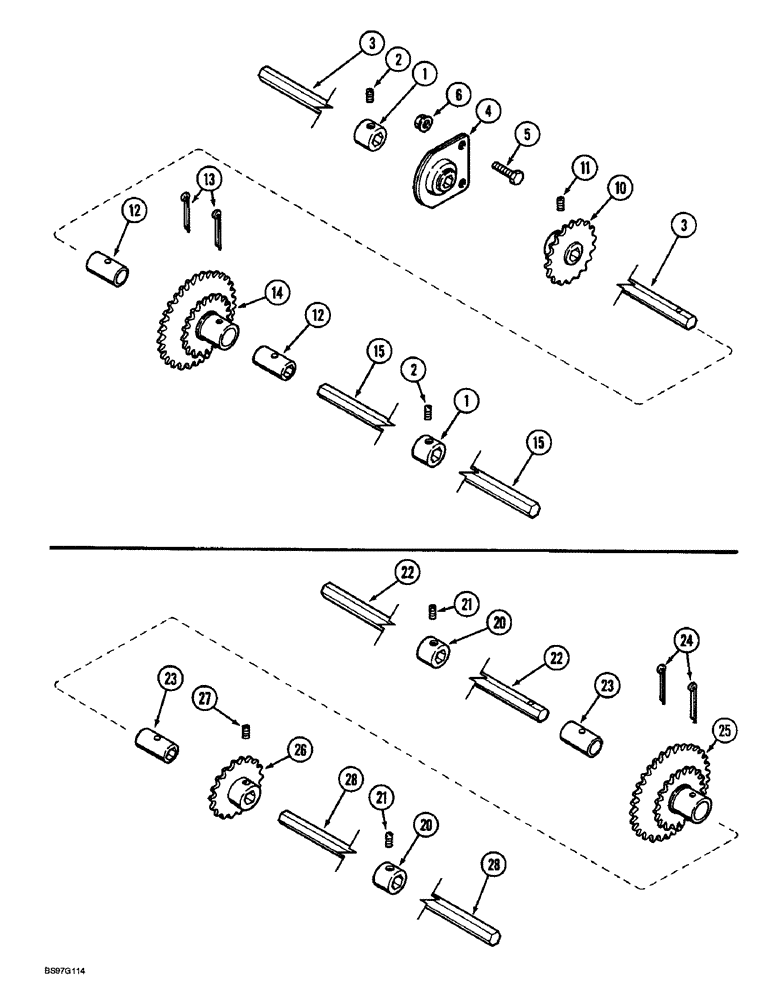

Схема запчастей Case IH 900 - (9-216) - SECONDARY SEED DRIVE, CYCLO AIR TRAILING, 8 ROW, PLATE TRAILING, 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS
25
24
6
10
20
15
27
3
4
2
15
23
26
21
3
2
21
22
23
20
5
1
28
1
12
11
13
14
28
12
22

Артикул

Название

Примечание

Количество

1

147338C1

SPACER

- collar, locking

2шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

3

141657C1

SHAFT

- drive, hex, 16 (5/8) x 4440 mm (174-51/64 inch) long, left-hand, (8 row narrow)(Shown)

1шт.

3

141020C1

BAR

SHAFT - drive, hex, 16 (5/8) x 5434 mm (213-15/16 inch) long, left-hand, (8 row wide)

1шт.

4

141242C91

BEARING,16mm ID

- ball, hanger (8 row wide)

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

10

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth (Cyclo Air)

1шт.

11

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

1шт.

12

137204C2

SPACER

BUSHING - shear pin

2шт.

13

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

14

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output

1шт.

15

141452C1

BAR

SHAFT - drive, hex, 16 (5/8) x 952 mm (37-31/64 inch) long, right-hand, (8 row narrow)

1шт.

15

1250826C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1370 mm (53-15/16 inch) long, right-hand, (8 row wide)

1шт.

20

147338C1

SPACER

- collar, locking, secondary seed drive cyclo air tailing- 12 row narrow

4шт.

21

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, secondary seed drive cyclo air tailing- 12 row narrow

4шт.

22

1279459C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2135 mm (84-1/16 inch) long, Outer shaft left-hand, shaft right-hand, secondary seed drive cyclo air tailing- 12 row narrow

2шт.

23

137204C2

SPACER

BUSHING - shear pin, secondary seed drive cyclo air tailing- 12 row narrow

4шт.

24

432-1240

COTTER PIN,3/16" x 2 1/2"

secondary seed drive cyclo air tailing- 12 row narrow 3/16" x 2 1/2"

4шт.

25

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output, secondary seed drive cyclo air tailing- 12 row narrow

2шт.

26

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth, secondary seed drive cyclo air tailing- 12 row narrow

2шт.

27

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point, secondary seed drive cyclo air tailing- 12 row narrow

4шт.

28

134151C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long, Inner shaft left-hand, shaft right-hand), secondary seed drive cyclo air tailing- 12 row narrow

2шт.

Выбрано товаров: 23
