Запчасти Case IH 900 (9-214) - SECONDARY SEED DRIVE, CYCLO AIR AND PLATE TRAILING, 6 ROW NARROW & 4 ROW (09) - CHASSIS/ATTACHMENTS

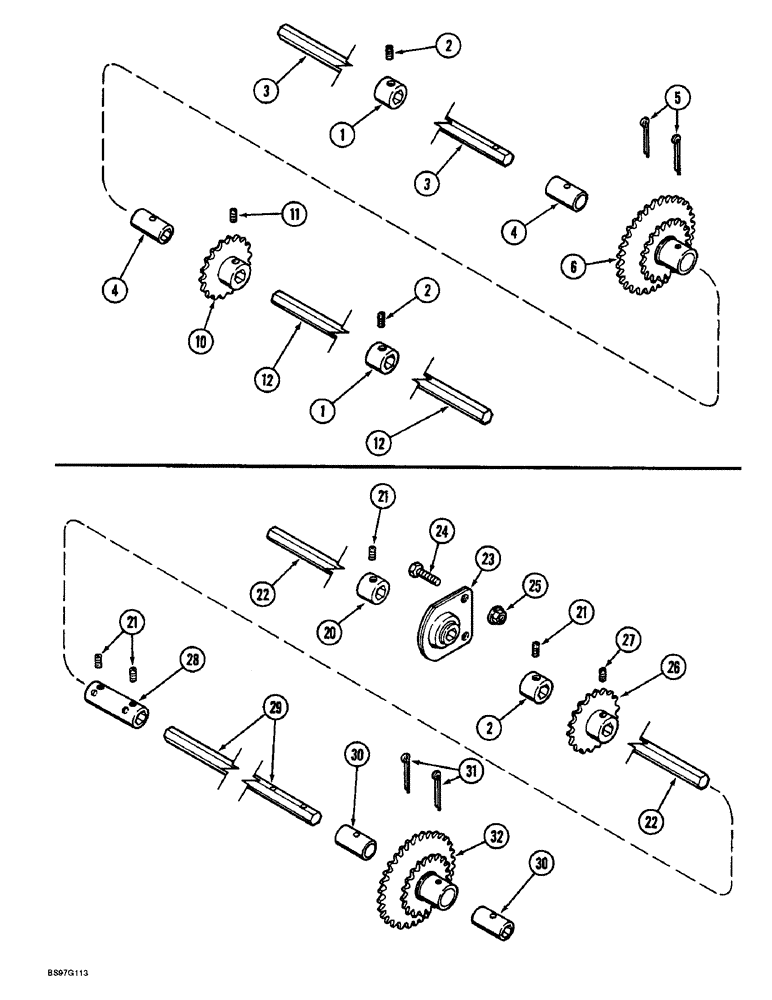

Схема запчастей Case IH 900 - (9-214) - SECONDARY SEED DRIVE, CYCLO AIR AND PLATE TRAILING, 6 ROW NARROW & 4 ROW (09) - CHASSIS/ATTACHMENTS
12
2
6
28
4
21
20
22
3
10
30
1
2
21
22
3
4
24
31
12
2
1
21
25
29
30
11
27
23
26
5
32

Артикул

Название

Примечание

Количество

1

147338C1

SPACER

- collar, locking

2шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

3

1250826C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1370 mm (53-15/16 inch) long, left-hand, (4 row narrow)(Shown)

1шт.

3

134151C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long, left-hand, (4 row wide)

1шт.

3

1279459C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2135 mm (84-1/16 inch) long, left-hand, (6 row narrow)

1шт.

4

137204C2

SPACER

BUSHING - shear pin

2шт.

5

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

6

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output

1шт.

10

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth (Cyclo Air)

1шт.

11

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point (Cyclo Air)

2шт.

12

141452C1

BAR

SHAFT - drive, hex, 16 (5/8) x 952 mm (37-31/64 inch) long, right-hand, (4 row narrow)(Shown)

1шт.

12

1250826C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1370 mm (53-15/16 inch) long, right-hand, (4 row wide)

1шт.

12

134151C1

BAR

SHAFT - drive, hex, 16 (5/8) x 1765 mm (69-31/64 inch) long, right-hand, (6 row narrow)

1шт.

20

147338C1

SPACER

- collar, locking, secondary seed drive cyclo air tailing- 6 row wide

2шт.

21

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point, secondary seed drive cyclo air tailing- 6 row wide

4шт.

22

137214C1

BAR

SHAFT - drive, hex, 16 (5/8) x 3361 mm (132-11/32 inch) long, left-hand, secondary seed drive cyclo air tailing- 6 row wide

1шт.

23

141242C91

BEARING,16mm ID

- ball, hanger, secondary seed drive cyclo air tailing- 6 row wide

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, secondary seed drive cyclo air tailing- 6 row wide

2шт.

25

231-5146

FLANGE NUT,3/8"-16

Secondary seed drive Cyclo air tailing- 6 row wide Flg, USR, 3/8"-16

2шт.

26

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 teeth, secondary seed drive cyclo air tailing- 6 row wide

1шт.

27

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point, secondary seed drive cyclo air tailing- 6 row wide

2шт.

28

1254406C1

TRANSMISSION SLEEVE

COUPLER - drive shaft, secondary seed drive cyclo air tailing- 6 row wide

1шт.

29

1254405C1

BAR

SHAFT - drive, hex, 16 (5/8) x 2146 mm (84-31/64 inch) long, right-hand, secondary seed drive cyclo air tailing- 6 row wide

1шт.

30

137204C2

SPACER

BUSHING - shear pin, secondary seed drive cyclo air tailing- 6 row wide

2шт.

31

432-1240

COTTER PIN,3/16" x 2 1/2"

secondary seed drive cyclo air tailing- 6 row wide 3/16" x 2 1/2"

2шт.

32

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output, secondary seed drive cyclo air tailing- 6 row wide

1шт.

Выбрано товаров: 26
