Запчасти Case IH 900 (9-182) - PRESS WHEEL AND COVERING DISC (09) - CHASSIS/ATTACHMENTS

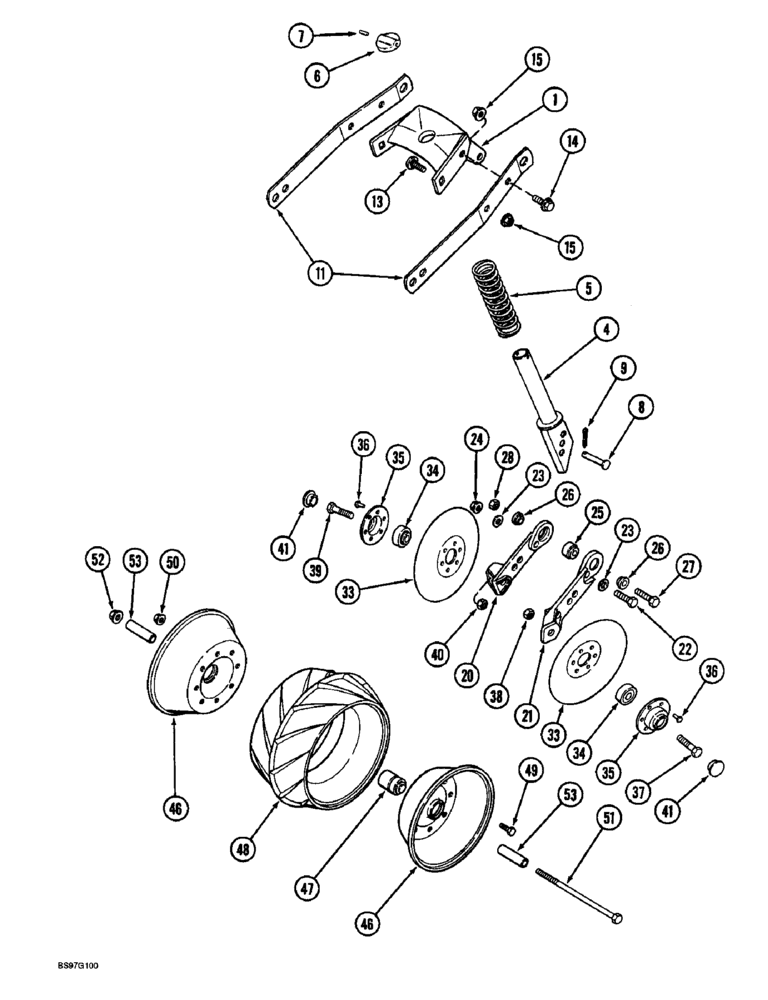

Схема запчастей Case IH 900 - (9-182) - PRESS WHEEL AND COVERING DISC (09) - CHASSIS/ATTACHMENTS
53
4
46
26
1
41
35
38
33
41
37
7
28
50
15
47
21
33
36
26
23
9
52
24
35
23
8
14
49
34
36
27
13
5
6
34
39
25
51
15
53
11
48
20
46
40
22

Артикул

Название

Примечание

Количество

1

149133C2

SUPPORT

- spring anchor

1шт.

412-618

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT - carriage, 3/8 NC x 1-1/8 inch, grade 2

3шт.

231-5146

FLANGE NUT,3/8"-16

3шт.

4

1263893C1

GUIDE

- spring

1шт.

5

1264391C1

SPRING

- covering

1шт.

6

1338485C1

COLLAR

- guide (Replaces 97558C1)

1шт.

7

38-31212

PIN,3/16" x 3/4", Coiled

2шт.

8

439-5632

HEADED PIN,3/8" x 2", G2

PIN - headed, 3/8 x 2 inch

1шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

11

149138C2

BAR

SUPPORT - press wheel arm

2шт.

13

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

14

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1279520C1

ARM

- pivot, short

1шт.

21

1279519C2

ARM

- pivot, long

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

23

495-81153

WASHER,.469" x 3/4" x .030"

- flat, 15/32 x 3/4 x 1/32 inch

2шт.

24

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

25

149261C91

BALL BEARING,16mm ID x 40mm OD x 18mm W

BEARING - ball

1шт.

26

1279478C1

BUSHING,9.65mm ID x 24mm OD x 13mm L

- spacer

2шт.

27

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

28

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

1277891C91

DISC

ASSEMBLY - covering

1шт.

33

1263938C1

DISC

- covering

1шт.

34

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

34

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

35

149170C2

FLANGED BEARING

- bearing

2шт.

36

447-49

RIVET,FH, 1/4" x 9/16"

- flat head, 1/4 x 9/16 inch

12шт.

37

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

38

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

39

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

40

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

41

492709R2

CAP

- bearing

2шт.

81475C1

WHEEL ASSY

WHEEL ASSEMBLY - press, order individual parts

1шт.

46

149148C1

RIM

- press wheel

2шт.

47

140393C91

BALL BEARING,0.7465" ID x 1.5" OD x 2.5"

- ball

1шт.

48

90854C1

TYRE/TIRE

TIRE - press wheel, single rib

1шт.

49

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

50

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

51

413-8152

BOLT,Hex, 1/2" - 13 x 9-1/2", Gr 5

- hex, 1/2 NC x 9-1/2 inch

1шт.

52

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

53

149221C1

SPACER

- press wheel

2шт.

Выбрано товаров: 42
