Запчасти Case IH 900 (9-180) - DUAL GAUGE WHEEL ATTACHMENT (09) - CHASSIS/ATTACHMENTS

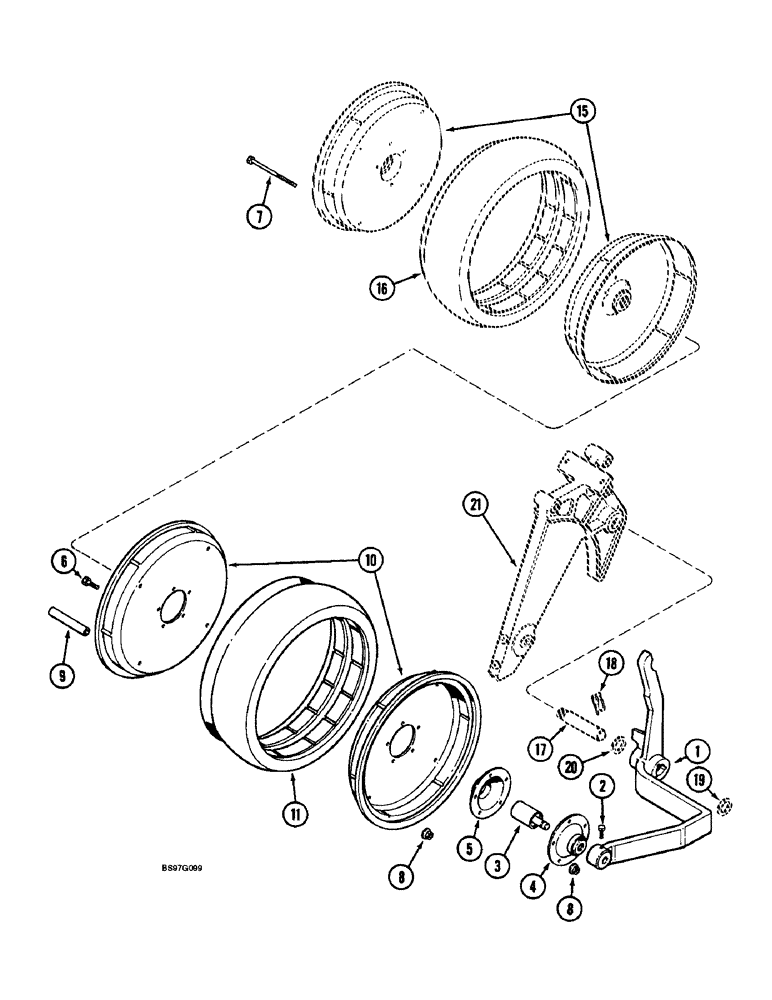

Схема запчастей Case IH 900 - (9-180) - DUAL GAUGE WHEEL ATTACHMENT (09) - CHASSIS/ATTACHMENTS
20
15
1
17
3
19
5
8
4
10
8
21
2
18
7
16
6
11
9

Артикул

Название

Примечание

Количество

1978933C2

ATTACHMENT

KIT - dual gauge wheel, order from Machinery Price List

1шт.

1

1954902C3

ARM

- dual gauge wheel, right-hand (Shown)

1шт.

1

1954901C3

ARM

- dual gauge wheel, left-hand

1шт.

2

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch, cup point

1шт.

3

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

BEARING - ball, includes spindle

1шт.

4

1976541C1

BEARING HOUSING,38.1 mm ID x 76.2 mm OD x 26.79 mm

HOUSING - bearing, open

1шт.

5

1969236C1

BEARING HOUSING,38.1 mm ID x 76.2 mm OD x 26.54 mm

HOUSING - bearing, closed

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

7

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

9

413709A1

SPACER

- pipe, 12.5 ID x 66.5 mm long

4шт.

10

1969237C1

RIM

- dual gauge wheel

2шт.

11

1969231C1

TYRE/TIRE

TIRE - dual gauge wheel

1шт.

15

REF

INSTRUCTION

RIM - gauge wheel (See Page 9-179)

2шт.

16

REF

INSTRUCTION

TIRE - gauge wheel (See Page 9-179)

1шт.

17

REF

INSTRUCTION

PIN - gauge wheel (See Page 9-179)

1шт.

18

REF

INSTRUCTION

PIN - snap lock (See Page 9-179)

1шт.

19

REF

INSTRUCTION

WASHER - flat (See Page 9-179)

1шт.

20

REF

INSTRUCTION

WASHER - flat (See Page 9-179)

1шт.

21

REF

INSTRUCTION

BRACKET - gauge wheel pivot (See Page 9-179)

1шт.

Выбрано товаров: 20
