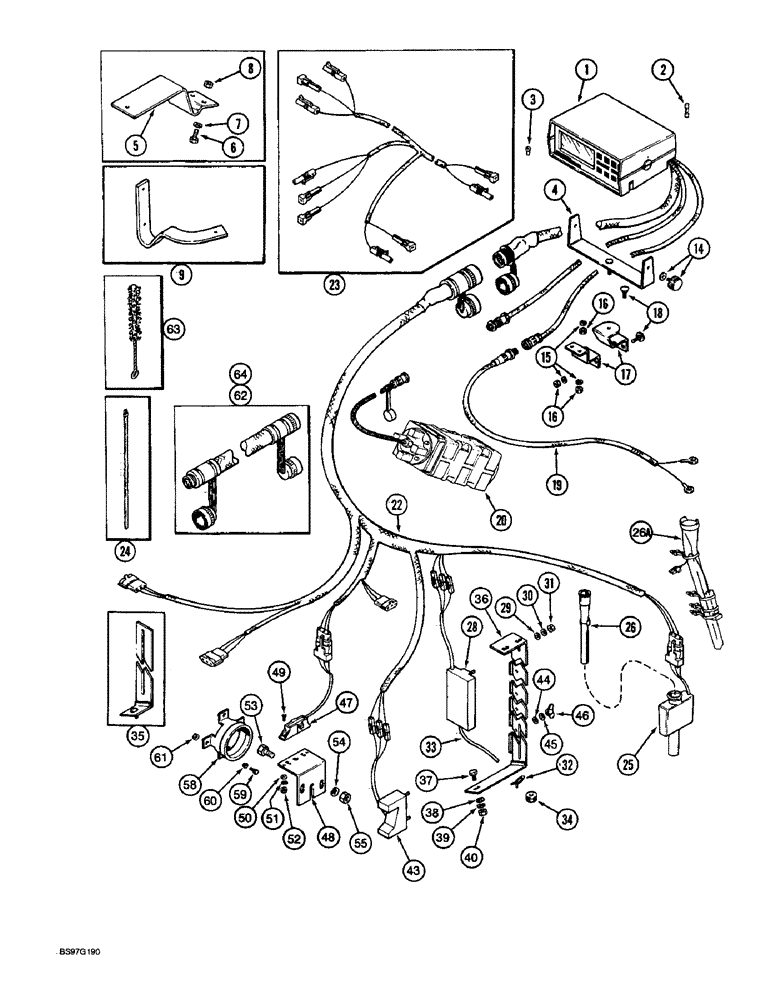

Запчасти Case IH 900 (4-20) - EARLY RISER MONITOR SYSTEM, PRIOR TO MONITOR SERIAL NUMBER 1164-14050 CYCLO AIR & PLATE PLANTERS (04) - ELECTRICAL SYSTEMS

1

1336000C2

CONTROL

MONITOR - Early Riser, new

1шт.

1

1935062C2

REMAN-ELECT GAUGE

MONITOR - Early Riser, remanufactured

1шт.

1

1935063C2

CORE-MONITOR

RETURN NUMBER - monitor, use this number for return core credit

1шт.

2

223-26

FUSE,5 Amp, Type 3AG

- 3AG, 5 ampere

2шт.

3

W10478

LAMP

BULB - lamp, No. 194

2шт.

4

1261523C91

BRACKET

- mounting

1шт.

5

90905C2

BRACKET, SUPPORTING

BRACKET - mounting (J I Case Tractor)

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

1960456C1

BRACKET

- mounting (7100 Series Tractors)

1шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

14

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

325-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

1261522C91

BRACKET, SUPPORTING

KIT - bracket, mounting (88 series tractors)

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

19

1336001C2

CABLE

HARNESS ASSEMBLY - battery

1шт.

20

97576C1

SENSOR

- radar, order from Machinery Price List, true ground speed

1шт.

20

BN95030AR

SENSOR

900 CASE IH PLANTER, radar, order from Machinery Price List, true ground speed (1/87-)

1шт.

20

BN95030AC

CORE-SENSOR

Return Number

1шт.

22

1336008C2

HARNESS

- monitor (4 row)

1шт.

22

1336009C2

HARNESS

- monitor (6 row)

1шт.

22

1336010C2

HARNESS

- monitor (8 row)

1шт.

22

1336011C3

HARNESS

- monitor (12 row narrow trailing, except horizontal)

1шт.

22

1995710C1

HARNESS

- monitor (12 row narrow mounted, except horizontal)

1шт.

22

1336015C2

HARNESS

- monitor (Corn/soybean special)

1шт.

22

1336012C2

HARNESS

- monitor (12 row narrow horizontal folding)

1шт.

22

1336013C2

HARNESS

- monitor (16 row narrow horizontal folding)

1шт.

22

1336014C2

HARNESS

- monitor (12 row wide horizontal folding)

1шт.

23

1336016C2

HARNESS

- monitor extension (Cyclo Air 12 row narrow trailing)

2шт.

24

217285C1

STRAP

- tie, 4 inch

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

24

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

25

245599C2

SENSOR

- seed (Cyclo Air)

1шт.

26

72902C2

TUBE,0.48" ID, 0.6" OD, 7.86" Length

- seed, beet (Cyclo Air)

1шт.

26a

1263843C2

TUBE ASSY.

TUBE - seed, with sensor, Plate, for attaching parts see page 9-307

1шт.

1336005C2

PACKAGE

KIT - sensor, air pressure (Cyclo Air 4, 6 and 8 row)

1шт.

1336005C2

PACKAGE

KIT - sensor, air pressure (Cyclo Air 12 row narrow, corn/soybean special, and horizontal folding)

2шт.

28

NSS

NOT SOLD SEPARAT

SENSOR - air pressure (Order 1336005C1)

1шт.

29

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

1шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

32

214-1304

HOSE CLAMP,#4, 1/4", Spring

CLAMP - spring type, 1/4 inch

2шт.

33

1336007C1

AIR HOSE,0.13" ID x 36.00"

1шт.

34

1336026C1

GROMMET

- rubber

1шт.

35

1336019C1

BRACKET

- hopper level (Plate)

1шт.

36

1336021C1

BRACKET

- hopper level (Cyclo Air 4, 6 and 8 row)

1шт.

36

1336021C1

BRACKET

- hopper level (Cyclo Air 12 row narrow, corn/soybean special, and horizontal folding)

2шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

38

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

43

1336023C2

SENSOR

- hopper level

1шт.

44

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

2шт.

45

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

46

129-900

WING NUT,Locking, #10-32

NUT - wing, No. 10 NF

2шт.

47

1336025C2

SENSOR

- press wheel, distance

1шт.

48

1264112C2

BRACKET

- mounting

1шт.

49

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan Phillips, No. 6 NC x 1/2 inch

2шт.

50

95-81108

WASHER,#6

- flat, 5/32 x 3/8 x 1/32 inch

4шт.

51

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external tooth lock, 1/8 inch

2шт.

52

225-14106

NUT,#6-32

2шт.

53

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

54

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

55

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

58

1264113C1

MAGNET

- sensor

1шт.

59

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

60

1264197C1

WASHER

- shoulder, special

4шт.

61

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

62

1336017C3

HARNESS

ASSEMBLY - extension, 4572 mm (180 inch) long (Used with large 4 wheel drive tractor)

1шт.

63

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

64

1337297C2

HARNESS

CABLE - adapter (Corn/soybean special)

1шт.
