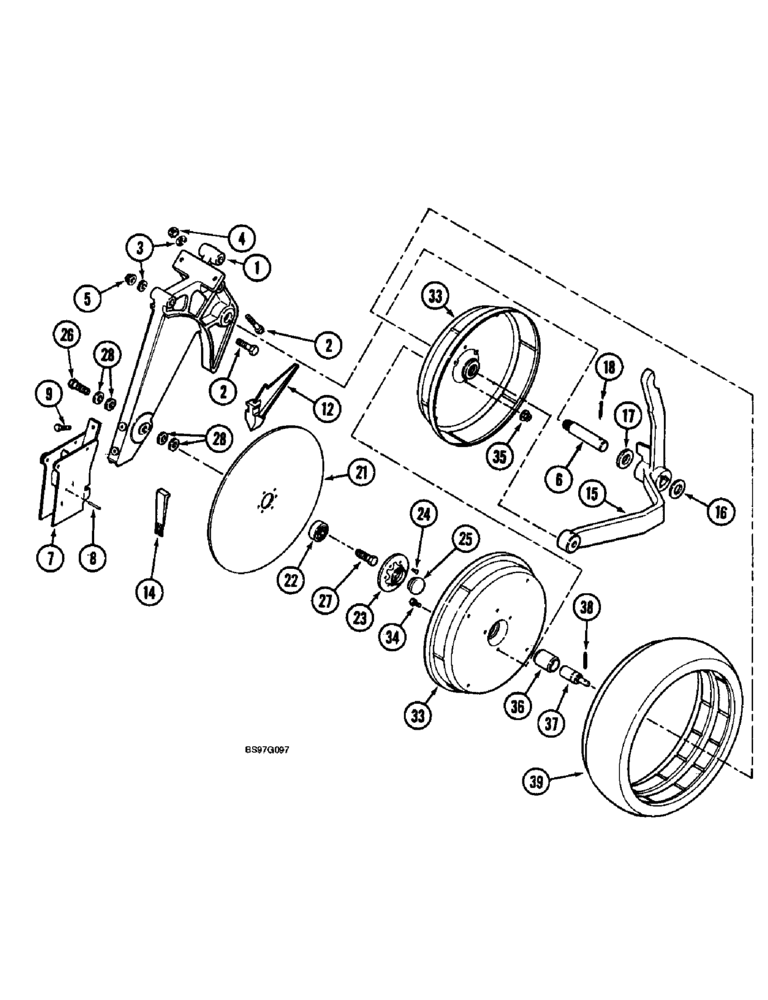

Запчасти Case IH 900 (9-178) - DISC OPENER AND GAUGE WHEEL, STEEL, CYCLO AIR AND PLATE PLANTERS (09) - CHASSIS/ATTACHMENTS

1

90836C1

SUPPORT

BRACKET - gauge wheel pivot, if used

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

6

149173C3

PIN,25.4mm OD x 116mm L

- gauge wheel, if used

2шт.

7

1277777C1

SHOE (ASSY)

SHOE - disc opener

1шт.

8

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

9

1263977C1

BOLT

- hex flange, 3/8 NC x 3/4 inch

2шт.

12

91265C1

POINT

SHOVEL - firming

1шт.

14

140817C1

DEFLECTOR

- seed

1шт.

15

1279098C1

ARM

- depth wheel, left-hand

1шт.

15

1279099C1

ARM

- depth wheel, right-hand (Shown)

1шт.

16

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

17

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

6шт.

18

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

90851C92

DISC

ASSEMBLY - 14 In Trailing

2шт.

90850C92

DISC

OPENER ASSY, 14" STD LEADING

2шт.

21

1337971C1

DISC

- furrow opener

1шт.

22

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

- ball

1шт.

22

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

23

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

- bearing

1шт.

24

447-49

RIVET,FH, 1/4" x 9/16"

- flat head, 1/4 x 9/16 inch

6шт.

25

492709R2

CAP

- bearing

2шт.

26

113-2654

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8, Full Thd

- hex, left-hand thread, 5/8 NC x 1-1/2 inch, grade 8

1шт.

27

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

28

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

- retaining, hardened

4шт.

1279444C91

WHEEL ASSY.

WHEEL ASSEMBLY - gauge

2шт.

33

128616C2

WHEEL

DISC - wheel

2шт.

34

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

36

133966C1

BUSHING,29.94mm ID x 39.95mm OD x 39mm L

- bearing sleeve

1шт.

37

128558C91

BALL BEARING,30mm OD x 75mm L

- gauge wheel

1шт.

38

38-31632

PIN,1/4" x 2", Coiled

1шт.

39

128633C1

TYRE/TIRE

TIRE - disc opener gauge wheel

1шт.
